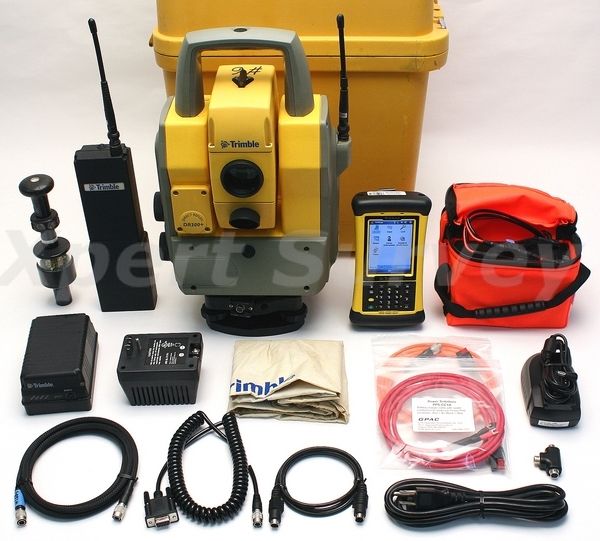

Trimble 5603 3" DR200+ 2.4 GHz Robotic Total Station w/ Nomad

* Trimble 5603 3" DR200+ Autolock Robotic Total Station [ID- X2567-L/T*]
          - Robotic
          - Autolock
          - 2.4 GHz Radio
          - Calibrated By A Trimble Authorized Service Center
* Trimble Nomad Field Controller w/ Options... [ID- X2565-L/T*]
          - LM80 Field Software v5.03
          - Robotics
* Trimble GeoRadio External 2.4 GHz Radio w/ 12V Battery Unit [ID- X2568-L/T*]
* Duracell 12V Battery
* GPAC PPS-CC1A Battery Charge Cable
* GPAC G6 Power Cable
* UPG Battery Charger P/N: 12BC10000-1
* Trimble Single Battery Charger P/N: 571906330
* Trimble GEO600 RS232 Power Cable
* QTY. 2 Antennas
* Trimble T-Connector P/N: 572202312
* Trimble 4-Pin Power Cable
* Trimble Power Cable P/N: 20087M
* Trimble Remote Target
* Rain Cover For Unit
* Power Cord
* Hard Carrying Case

Trimble 5603 3" DR200+ Robotic Total Station [ID- X2567]	Trimble Nomad Field Controller [ID- X2565]
- Robotic - Autolock - 2.4 GHz Radio - Calibrated By A Trimble Authorized Service Center	- LM80 Field Software v5.03 - Robotics

Trimble 5603 DR200+ Total Station
The Trimble 5600 Total Station series gives you access to the best and most productive measuring methods available for every measuring situation for every measuring situation for unassisted operation.

Servo gives you a 30% productivity increase
The 5600 series is equipped with 4-speed servo operation that gives variable speed, faster, smoother and more accurate aiming. Servo is the platform for measurement automation and for further upgrades to increased productivity.

Upgrade to Autolock and the productivity increase is 50%
Autolock™ technology enables semi-robotic operation, with measuring and recording taking place at the total station. The 5600 series seeks out the RMT target (Active Remote Measuring Target), locks to it, and follows it during movement between points. No fine adjustments needed, no focusing, no problems working in the dark (the instrument will locate the target in any situation), and no work-related injuries from constant turning of the total station. In most cases the Autolock feature makes it possible to stake out and gather survey data as fast as the rodman can move.

Upgrade to Robotic and the productivity increase is 80%
Robotic operation offers the same advantages as Autolock—in addition, it allows you to work on your own. Robotic measuring offers more than increased productivity and reduced personnel costs. It also gives higher quality measurements all the control initiation and registering take place at the measuring point, where any errors or discrepancies are quickly identified.

Combine Robotic with DR200+ to double productivity
The long-range Direct Reflex EDM system (DR200+) option on the 5600 series allows you to measure up to 600 meters against a white object and 200 meters against Kodak Grey (the international standard to determine the range of reflectorless total stations). That’s 3.3 times further than any other reflectorless total station! And the range using a single prism is 5.5 kilometers. Combining DR200+ capability with robotic operation results in the ultimate total station.

True Integrated Surveying
There are situations where measuring by GPS is more productive than by using a conventional total station, and vice versa. Trimble Integrated Surveying™ solutions offer you the best of both worlds. Simply move the control unit from one system to the other in a matter of seconds and go on with your survey. The software environment is identical and the data flow seamless.

Features:

• Autolock and Robotic Surveying for increased productivity
• 4-speed servo
• Active search system
• Seamless data flow
• Choice of User Interfaces


Specifications:

Accuracy
Accuracy SDV 5 - 200 m (16,4 ft - 656 ft)	±(3 mm + 3 ppm) ±(0.01 ft + 3 ppm
beyond 200 m (656 ft) (without reflector)	±(5 mm + 3 ppm) ±(0.016 ft + 3 ppm)
Shortest possible range:	2 m (6.5 ft)
Least count Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK):	1 mm (0.005 ft) 1 mm (0.005 ft) 1 mm (0.005 ft) 10 mm (0.01 ft)
Measuring time (with reflector) Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK):	Users decision 2 sec. 2 sec 0.4 sec.
Measuring time (without reflector) Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK):	Users decision 2-10 sec 2-10 sec 0.4 sec.
Light source:	IR Laser Diode 850 nm
Beam divergence Horizontal: Vertical:	0.4 mrad (4 cm/100 m)  (0.13 ft/328 ft)  0.8 mrad (8 cm/100 m)  (0.26 ft/328 ft)
Atmospheric correction:	-60 to 195 ppm continuously
Angle Measurement
Accuracy (Standard deviation based on DIN 18723)	3” (1.0 mgon)
Angle reading (least count) Number of decimals can be specified by the user Arithmetic mean value (D-bar): Standard measurement: Fast tracking:	1” (0.1 mgon) 1” (0.1 mgon) 2” (0.5 mgon
Automatic level compensator Dual-axis compensator with a working range of:	6’ (±100 mgon)
Range using a reflector
Range using Geodimeter prism 571 125 021. Standard clear
With one prism	5500 m (3.4 miles) (max.range
Range using Plastic Reflector	1500 m (0.9 miles)
Range using Reflex Tape	800 m (0.5 miles)
Range Direct Reflex measurement (typically):
Range Kodak Gray (18% reflective)	>200 m (656 ft)
Range Kodak White (90% reflective)	>600 m (1968 ft)
Concrete	200 - 300 m (656 - 984 ft)
Wood Constructions	150 - 300 m (492 - 984 ft)
Metal Constructions	150 - 200 m (492 - 656 ft)
Light Rock	150 - 250 m (492 - 820 ft)
Dark Rock	100 - 150 m (328 - 492 ft)
General
Aiming	Servo-drive. Endless fine adjustment
Levelling
Compensator	Dual axis compensator
Working range	6’ (±100 mgon)
Circular level in tribrach:	8’/2 mm (8’/0.007 ft)
Electronic 2-axis level in the LC-display with a resolution of:	6” (2 mgon)
Centering:	Optical plummet in tribrach
Telescope	Coaxial
Magnification:	26X (30X optional)
Focussing range:	1.7 m (5.58 ft) to infinity
Field of view	2.6 m at 100 m (8.5 ft at 328 ft)
Illuminated crosshair:	Yes, variable (15 steps)
Operating temperature:	-20°C to +50°C (-5°F to +122°F)
Data input/output:	RS-232C Two-way communication
Batteries:
Central unit:	rechargeable NiMH battery 12V, 1.6 Ah
External:	rechargeable NiMH battery 12V, 3.5 Ah
Power consumption:	0.5A – 1.0A depending on use of servo, tracker, radio and type of measurement mode.
Weight
Instrument (incl. Geodimeter Control Unit):	6.4 kg (14.1 lbs)
Tribrach:	0.7 kg (1.5 lbs)
Internal battery:	0.4 kg (0.9 lbs
Instrument for robotic surveying: (incl. Tracker and built in radio)	7.5 kg (16.5 lbs

Trimble Nomad 900L

EVERYTHING YOU WANTED IN AN OUTDOOR RUGGED HANDHELD COMPUTER—BUILT IN.
The Trimble® Nomad® 900 series packs even more functionality into one of the most powerful and full-featured rugged handheld computers available. Standard features include an 806 MHz processor, a long-life lithium-ion battery, 512 MB to 2 GB of Flash storage and integrated wireless capabilities like GPS, Wi-Fi and Bluetooth®1. The high-resolution, sunlightvisible VGA display shows images, maps and data in crisp detail. Optional features include an integrated cellular WWAN, laser bar code scanner and a 5 MP color digital camera.

The Nomad computer also includes the latest Windows Mobile® 6.1 software, so it runs all the applications you use most, including a wide range of third-party software for industry specific applications.

Built-in versatility
The Nomad computer's many builtin capabilities make it easy to collect, save and transmit data in the field. The integrated SiRFstarIII GPS receiver with SiRFInstantFixII technology enables position acquisition in less time and in challenging environments such as in canyons, under heavy canopy and even inside buildings2 . Now navigation is faster, more accurate, more reliable and more consistently available.

Quickly track your assets with the integrated 1D laser bar code scanner and upload changes from the field. The 5 megapixel camera and geotag-enabled software can capture high-resolution, full color images for inspection, maintenance and repair applications. With geotagging enabled, your photos will have precise locations stored in EXIF and/or overlaid on the image.

Choose your model and when it arrives select from ten operating system languages at initial start-up. All models come with a Secure Digital (SD/SDHC) slot. Depending on the model, even more capabilities can be added via a CompactFlash (CF Type II) slot.

Tough as the outdoors
Like other Trimble rugged handhelds, the Nomad computer meets rigorous MIL-STD- 810F military standards for impact, vibration, humidity, altitude and extreme temperatures. It also comes with an IP68 rating. That means the Nomad handheld is completely sealed against dust, and it can survive immersion in up to a meter of water for 240 minutes. Trimble rugged handhelds have proven their reliability and lower Total Cost of Ownership (TCO) over consumer grade handhelds3 in the field with thousands of real world users.

Ideal mobile application platform
The Marvell 806 MHz processor, when combined with Trimble’s optimized graphics processing, advanced caching, and proprietary high-speed journaling file system, makes the next generation Trimble Nomad series one of the fastest Windows Mobile handheld computers on the market today. Tuned to maximize the integrated GPS receiver’s performance, the next generation Nomad also has an improved antenna design which significantly improves Time-to-First-Fix (TTFF) and fix under thick canopy.

Want to do more outside? Get the handheld that has more inside. Get your hands on a Nomad handheld computer.

Features:

• Outdoor rugged design
• Long-life battery
• 806 MHz processor
• Integrated WWAN capability
• Integrated GPS with SiRFstarIII and SiRFInstantFixII
• Integrated bar code scanner
• Integrated 5MP camera, with flash and geotagging
• Full VGA display
• Integrated Bluetooth and Wi-Fi wireless capability
• Windows Mobile 6.1
• Small and lightweight

Specifications:

STANDARD FEATURES	• Windows Mobile 6.1 (Professional in WWAN models; Classic in all other models) • Marvell 806 MHz XScale processor • 128 MB DDR SDRAM • 512 MB to 2 GB non-volatile Flash storage OS/user shared space (4 GB SD card included with camera models) • Languages: Choose English, Chinese (simplified), French, German, Italian, Japanese, Korean, Russian, Portuguese or Spanish • Full VGA display, sunlight-readable color TFT • Touchscreen • Rugged submersible design • Integrated speaker and microphone • Integrated Bluetooth 2.0 • Secure Digital (SD/SDHC) slot • Numeric keypad • Notification LEDs • USB host and client • Headset jack (2.5 mm mono audio and microphone) • 15-hour battery life (in active use with default settings) • Keypad backlight for night use
PHYSICAL
Size	6.92 in x 3.92 in x 1.96 in (17.6 cm x 10 cm x 5.0 cm)
Weight	21 ounces (596 g) including rechargeable battery
Housing	Polycarbonate
Color	Yellow w/Black, Grey w/Black or Green w/Black
CERTIFICATIONS	FCC, CE/R & TTE, IC (Canada), C-Tick, RoHS Compliant, PTCRB, GCF Compliant, AT&T network compatible, Section 508 compliant, CCX v4 ASD, MIL-STD-461E RE102, MIL-STD-461E RS103
ENVIRONMENTAL SPECIFICATIONS
Meets or exceeds:
Water	Immersed in 3.3 ft (1 m) of water for 240 minutes MIL-STD-810F, Method 512.4, Procedure I, IEC-529, IP68
Sand & dust	Totally protected against dust MIL-STD-810F, Method 510.3, Procedure I, II, IEC-529, IP68
Drop	26 drops at room temperature from 4 ft (1.22 m) onto plywood over concrete 6 additional drops at –22 °F (–30 °C) 6 additional drops at 140 °F (60 °C) MIL-STD-810F, Method 516.5, Procedure IV
Vibration	General Minimum Integrity and Loose Cargo tests MIL-STD-810F, Method 514.5, Procedure I, II
Operating Temperature	-22 °F to 140 °F (–30 °C to 60 °C) MIL-STD-810F, Method 501.4, Procedure II MIL-STD-810F, Method 502.4, Procedure I, II, III
Storage Temperature	-40 °F to 158 °F (–40 °C to 70 °C) MIL-STD-810F, Method 501.4, Procedure I MIL-STD-810F, Method 502.4, Procedure I, II, II
Temperature shock.	–22 °F/149 °F (–30 °C/+65 °C) MIL-STD-810F, Method 503.4, Procedure I
Humidity	90%RH temp cycle 32 °F/158 °F (0 °C/+70 °C) MIL-STD-810F, Method 507.4
Altitude	15,000 ft (4,572 m) at 73 °F (23 °C) to 40,000 ft (12,192 m) at –22 °F (–30 °C) MIL-STD-810F, Method 500.5, Procedure I, II, III
ELECTRICAL
Processor	Marvell PXA320 XScale 806 MHz
Memory	128 MB DDR SDRAM; ~30 MB reserved
Storage	512 MB to 2 GB onboard non-volatile NAND Flash; ~50 MB reserved
Expansion	1x SD/SDHC slot (all models), 1x Type II CF slot (900B, 900L, 900X) 4 GB SD card included in camera-equipped Nomad 900 models
Display	480 x 640 pixel (VGA) 16-bit color TFT with LED backlight
Batteries	5000 mAh Li-ion rechargeable module
I/O	USB host and client, power, headset jack
GPS accuracy	2–4 m SBAS corrected
Radios	Bluetooth 2.0 + EDR; WLAN: Wi-Fi (CCX v4 ASD) (802.11b/g); WWAN: Quad-band GSM GPRS/EDGE
