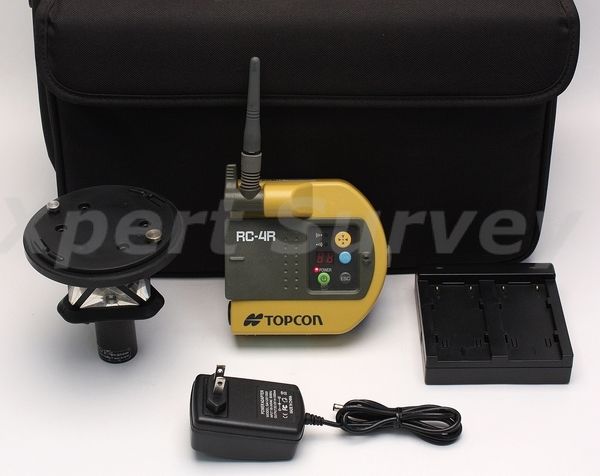

Topcon RC-4R 2.4 GHz Remote System
For Use With For QS, IS & GPT-9000 Series Total Stations
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Topcon A7 Prism
* Li-Ion Battery Charger w/ AC Adapter
* Battery Pack
* Carrying Case (G)
Topcon RC-4 Remote Controller
Topcon's RC-4 is a new, compact QuickLock remote system that integrates an array of advanced technologies that increases productivity on survey projects. The RC-4 uses dual lasers, a built-in spread-spectrum radio and Topcon's QuickLock technology to create on-the-job efficiencies from stakeout to topo and from construction layout to as-built surveys.
Designed for use with the new Topcon QS (Quick Station) robotic total station, Topcon IS (Imaging Station), and the Topcon 9-Series robotic total stations, the remote RC-4 commands the robotic total station to start searching via optical signals carried by laser beams. This optical link eliminates the possibility of false lock to the other prism or reflective objects.
When the RC-4 QuickLock system is activated, the robotic station detects the laser beam and immediately rotates toward the RC-4.
The field controller can be connected to the RC-4 remote using Bluetooth wireless technology. One RC-4 remote unit can operate up to six total stations. The system has a working range of 400m (1,310ft).
Features:
- Wide-area aiming for faster QuickLock
- Integrated 2.4GHz radio simplifies communication with all Topcon field controllers
- Extended radio range
- Multi-channel support
Specifications:
| Number of Remote Control Channels |
6 |
| Number of Spread Spectrum (SS) Radio Channels |
20 |
| Detective Range | Horizontal : 360° Vertical : ±30° |
| Bluetooth Address | IEEE std802 48bit LAN MAC Address |
| Qualified Design Identification (QDID) | B010518 |
| Manufacturer | Topcon |
|---|
