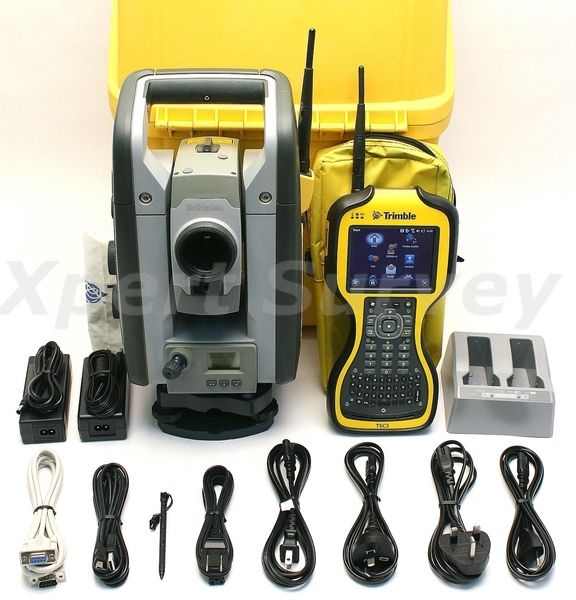

Trimble SPS710 3"/2" DR 300+ Robotic Total Station w/ TSC3 SPS 700

* Trimble SPS710 3"/2" DR 300+ 2.4 GHz Robotic Total Station [ID- X2697-L/T*]
          - This Unit Has Been Calibrated
* Trimble TSC3 2.4 GHz Field Controller w/ Options... [ID- X2550-L/T*]
This Unit Has Two Different Versions Of SCS900 Software Installed
          - SCS900 Software Version 3.5.2
               - Road Stakeout
               - Measurement
          - SCS900 Software Version 2.92
               - Road Stakeout
               - Measurement Enabled
          - 2.4 GHz Radio
* Trimble Dual Battery Charger P/N: 109000
* QTY. 2 Antennas
* Stylus
* Rain Cover For SPS710
* QTY. 2 AC Adapter/Chargers
* QTY. 5 Power Cords
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On Cd-ROM
* Case For TSC3
* Hard Carrying Case

TRIMBLE SPS710 ROBOTIC TOTAL STATION

The Trimble SPS710 Robotic Total Station helps contractors perform layout tasks significantly more efficiently than with conventional mechanical systems for residential and building construction. Designed specifically for concrete and general construction contractors, the Trimble SPS710 total station offers construction-specific functionality and one-person operation so you can perform all jobsite layout and measurement tasks for maximum flexibility and cost savings.



MAXIMUM FLEXIBILITY AND COST SAVINGS

Application programs let you set up anywhere faster and perform all jobsite layout and measurement tasks yourself. You’ll reduce your need for outsourcing and lower your costs.



EASY TO LEARN AND USE

Easy-to-follow user interface shortens the learning curve and speeds up operation. With minimal training, you’ll find you don’t need to be a surveyor to use these total stations.



ONE-PERSON OPERATION

Handle all layout tasks with only one person. Regardless of the complexity, your layout will be quick and accurate.



Applications:

• Layout of control


• Checking or typing into property boundaries


• Layout of excavation lines


• Layout of concrete forms and anchor


• As-built checks


• Layout of control lines on concrete paid for subcontractor


• Light topographical measurements



Specifications:

PERFORMANCE SPECIFICATIONS
Type	Robotic, Autolock, Servo
ANGLE MEASUREMENT
Accuracy (Standard deviation based on DIN 18723)	Horizontal: 3” (1.0 mgon) Vertical: 2” (0.6 mgon)
Angle reading increments	Standard: 1” (0.1 mgon) Tracking: 1” (0.1 mgon)
Automatic level compensator	Dual-axis compensator
DISTANCE MEASUREMENT
Prism Mode
Standard Measurement	± 3 mm + 2 ppm (0.01ft + 2 ppm)
Tracking	± 10 mm + 2 ppm (0.032 ft + 2 ppm)
Direct Reflex
Standard Measurement	± 3 mm + 2 ppm (0.01 ft + 2 ppm)
Tracking	± 10 mm + 2 ppm (0.032 ft + 2 ppm)
Shortest Possible range	2.0 m (6.56 ft)
MEASURING TIME
Prism Mode
Standard Measurement	1.2 s
Tracking	0.4 s
Direct Reflex Mode
Standard Measurement	1.5 s
Tracking	0.4 s
Range (at standard clear)
Measurement to prism
1 Prism (50 mm dia.)	2,500 m (8,202 ft)
3 Prisms	3,500 m (11,482 ft)
Range (at standard clear)
Range Direct Reflex measurement
Kodak Gray (18% reflective)	>300 m (984 ft)
Kodak Gray (90% reflective)	>800 m (2625 ft)
GENERAL SPECIFICATIONS
Optical Plummet	Optical 2.4x
Telescope
Magnification	30x
Aperture	40 mm (1.57 in)
Illuminated Crosshair	Variable (10 steps)
Display Screen	LM80
Operating Temperature	-20 °C to + 50 °C (-4 °F to + 122 °F)
Battery
Type	Rechargeable Li-Ion battery 11.1 V, 4.4 Ah
Charge time	6-hour charging time
Operating time	Approx. 6 hours on a single battery
Class II laser product label	Yes
Data transfer and recording
Memory Capacity	Via LM80
Data input/output	RS232
LM80 Interface	Required





Trimble TSC3 Field Controller Data Collector
The Trimble® TSC3 controller with Trimble Access™ software is a groundbreaking handheld field computing solution that streamlines the flow of everyday surveying work and the number of devices you need in the field.

A Powerful engine for Driving Trimble Access Software
Part of a trusted line of field controllers, the Trimble TSC3 controller is rugged and designed for surveyor’s workflows. It performs Trimble Access operations fast and delivers ample power to run third-party applications on the Windows® platform.

Make Pictures an essential part of your workflow
With a built-in 5 MP Autofocus camera and LED flash, you can take digital photographs of your job site right from the controller. No extra devices, batteries, or file transfers are required, and images are automatically geotagged for easy identification.

Easily record the qualitative information that survey data alone can miss, such as site conditions or work progress. The benefits of including images as part of your workflow are almost limitless: from easy data handover to in-field quality assurance.

Communications that bridge field and office in real-time
The TSC3 controller enables wireless Internet connectivity through an integrated GSM/GPRS modem. This allows Trimble Access software to facilitate a constant flow of information between field and office, including real-time synchronization of field and office data with Trimble AccessSync software. You can download and upload important files any time and from anywhere, as needed. Data collection, processing, analysis, and delivery are faster and more efficient.

A wealth of communication options let you transfer critical information no matter the environment: Connect with VRS™ connections using the internal modem. Access your office network through 802.11 LAN, or USB and serial RS232 communication options.

For all of your surveying applications
The rugged TSC3 controller is purpose-built to make both Integrated Surveying and Spatial Imaging jobs easier, more efficient, and more flexible:

• Easy-to-use interface
• Control your survey and verify your work on the large, bright, high-resolution LCD touchscreen. With the option of a QWERTY or conventional alphanumeric keyboard, data entry is quick and easy.
• An internal compass
• Receive direction cues even when you are stationary or moving backwards.
• Integrated GPS
• Employ GPS Search on a conventional survey without an external GPS receiver. You can also navigate and find control points and other assets quickly.
• Cables eliminated
• Bluetooth® wireless technology eliminates cables in surveying systems. An internal 2.4 GHz radio option is also ideal for controlling Trimble robotic systems.

Designed to Support your daily workflow
Trimble Access field software available on the TSC3 controller offers numerous features and capabilities to streamline the flow of everyday surveying work. Streamlined workflows – such as Roads, Monitoring, Mines, and Tunnels —guide crews through common project types and allows crews to get the job done faster with less distractions.

Survey companies can also implement their unique workflows by taking advantage of the customization capabilities available in the Trimble Access Software Development Kit (SDK). The Trimble Access SDK provides software developers with the tools to customize and extend Trimble Access.

With a bright, daylight readable display, integrated communications, and integrated survey workflows, the fully integrated TSC3 controller will make your field work more efficient.

Features:

• Large, bright, high-resolution screen makes instrument control easy
• Optimized for Trimble Access field software

• Fully-integrated camera, GPS navigation, and communications

• Improved collaboration and control through constant connectivity

Specifications:

Physical Specifications
Size	141 mm x 278 mm x 64 mm (5.6 in x 10.9 in x 2.5 in)  80 mm (3.2 in) at handgrip
Weight	1.04 kg (2.3 lb) including rechargeable battery  1.10 kg (2.4 lb) including rechargeable battery  and optional internal 2.4 GHz radio-modem
Housing	Polycarbonate (case), Hytrel® (overmold)
Environmental Specifications
Meets or exceeds Operating Temperature Storage Temperature	–30 °C to 60 °C (–22 °F to 140 °F) –40 °C to 70 °C (–40 °F to 158 °F)
Temperature shock	–35 °C/65 °C (–31 °F/149 °F)  MIL-STD-810G, Method 503.5, Procedure I
Humidity	90%RH temp cycle –20 °C/60 °C (–4 °F/140 °F)  MIL-STD-810G, Method 507.5
Sand & dust	IP6x: 8 hours of operation with blowing talcum powder (IEC-529)
Water	IPx7: Immersed in 1 m of water for 30 minutes (IEC-529)
Drop	26 drops at room temperature from 1.22 m (4 ft) onto plywood over concrete MIL-STD-810G, Method 516.6, Procedure IV
Vibration.	General Minimum Integrity and Loose Cargo test  MIL-STD 810G, Method 514.6, Procedures I, II
Altitude	4,572 m (15,000 ft) at 23 °C (73 °F)  and 12,192m (40,000 ft.) at –30 °C (–22 °F)  MIL-STD-810G, Method 500.5, Procedures I, II, III
Electrical Specifications
Processor:	Texas Instrument Sitara™ 3715 series ARM® Cortex™–A8 Processor (800 MHz)
Memory:	256 MB RAM
Storage:	8 GB non-volatile NAND Flash onboard
Expansion:	SDHC memory slot, USB host internal embedded expansion slot (for future use)
Batteries:	11.1 V, 2600 mAh, 28.9 Wh Li-Ion rechargeable pack – Battery life of 34 hours under normal operating conditions1. – Full charge in 3.0 hours.
Notification LEDs:	3 x tri-colored notification LEDs
Display:	– 4.2 in (107 mm) landscape VGA display, 640 x 480 pixels – Sunlight-readable color TFT with LED backlight, resistive touchscreen
Keyboard:	– Full QWERTY keypad with 10-key number pad, directional buttons, and 4 programmable buttons – “ABCD” style keypad option with 10-key number pad, directional buttons, and 4 programmable buttons available
Audio:	Integrated speaker and microphone with 3.5 mm stereo headset connection for audio system events, warnings, and notifications.
I/O:	USB Host (full speed), USB Client (high speed), DC power port, 9-pin serial RS-232
Wireless:	– Integrated Bluetooth 2.0+EDR, integrated Wi-Fi 802.11 b/g – Integrated quad-band GSM/GPRS/EDGE: 850/900/1800/1900 MHz – 2/6 Mbit/s 3G HSDPA GSM WWAN – Integrated 2.4 GHz frequency-hopping spread-spectrum radio modem (optional)
Camera / GPS / Compass / Accelerometer:	– 5 MP auto focus camera with dual white light LED flash, LED flashlight function – Integrated GPS (WAAS enabled) – Integrated compass – Integrated accelerometer
Certifications
Class B Part 15 FCC certification, CE Mark approval and C-tick approval. RoHS compliant. Bluetooth type approvals and regulations are country specific. MIL-STD-810G, IP 67, MIL-STD-461, PTCRB, GCF compliant, Wi-Fi Alliance certified, AT&T Network Compatible. Country type certifications: USA, Canada, EU, New Zealand, Australia. Pending certifications: Brazil, China (PRC), India, Japan, Republic of Korea, Russia, Taiwan, Thailand, UAE
