Trimble SPS710 3"/2" DR 300+ Robotic Total Station SPS 700
Trimble SPS710 3-inch/2-inch DR 300+ 2.4 GHz Robotic Total Station
- This Unit Has Been Calibrated
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

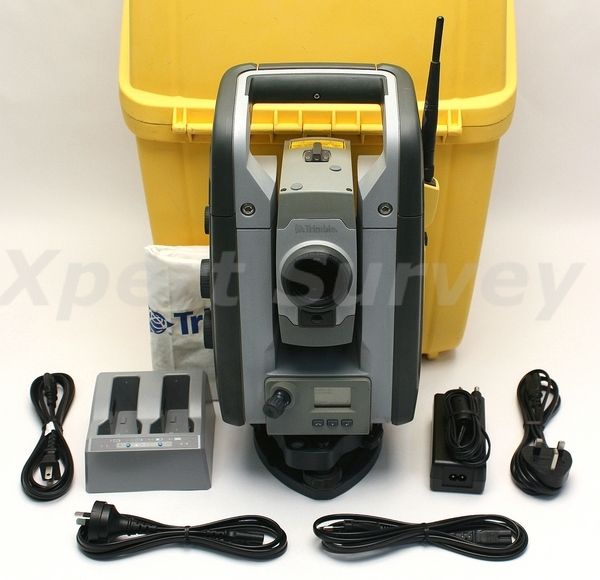

* Trimble SPS710 3"/2" DR 300+ 2.4 GHz Robotic Total Station [ID- X2697-L/T*]
- This Unit Has Been Calibrated
* Trimble Dual Battery Charger P/N: 109000
* Antenna
* Rain Cover For Unit
* AC Adapter/Charger
* QTY. 4 Power Cords
* User Manual On Cd-ROM
* Hard Carrying Case
TRIMBLE SPS710 ROBOTIC TOTAL STATION
The Trimble SPS710 Robotic Total Station helps contractors perform layout tasks significantly more efficiently than with conventional mechanical systems for residential and building construction. Designed specifically for concrete and general construction contractors, the Trimble SPS710 total station offers construction-specific functionality and one-person operation so you can perform all jobsite layout and measurement tasks for maximum flexibility and cost savings.
MAXIMUM FLEXIBILITY AND COST SAVINGS
Application programs let you set up anywhere faster and perform all jobsite layout and measurement tasks yourself. You’ll reduce your need for outsourcing and lower your costs.
EASY TO LEARN AND USE
Easy-to-follow user interface shortens the learning curve and speeds up operation. With minimal training, you’ll find you don’t need to be a surveyor to use these total stations.
ONE-PERSON OPERATION
Handle all layout tasks with only one person. Regardless of the complexity, your layout will be quick and accurate.
Applications:
- Layout of control
- Checking or typing into property boundaries
- Layout of excavation lines
- Layout of concrete forms and anchor
- As-built checks
- Layout of control lines on concrete paid for subcontractor
- Light topographical measurements
Specifications:
| PERFORMANCE SPECIFICATIONS | |
| Type | Robotic, Autolock, Servo |
| ANGLE MEASUREMENT | |
| Accuracy (Standard deviation based on DIN 18723) | Horizontal: 3” (1.0 mgon) Vertical: 2” (0.6 mgon) |
| Angle reading increments | Standard: 1” (0.1 mgon) Tracking: 1” (0.1 mgon) |
| Automatic level compensator | Dual-axis compensator |
| DISTANCE MEASUREMENT | |
| Prism Mode | |
| Standard Measurement | ± 3 mm + 2 ppm (0.01ft + 2 ppm) |
| Tracking | ± 10 mm + 2 ppm (0.032 ft + 2 ppm) |
| Direct Reflex | |
| Standard Measurement | ± 3 mm + 2 ppm (0.01 ft + 2 ppm) |
| Tracking | ± 10 mm + 2 ppm (0.032 ft + 2 ppm) |
| Shortest Possible range | 2.0 m (6.56 ft) |
| MEASURING TIME | |
| Prism Mode | |
| Standard Measurement | 1.2 s |
| Tracking | 0.4 s |
| Direct Reflex Mode | |
| Standard Measurement | 1.5 s |
| Tracking | 0.4 s |
| Range (at standard clear) | |
| Measurement to prism | |
| 1 Prism (50 mm dia.) | 2,500 m (8,202 ft) |
| 3 Prisms | 3,500 m (11,482 ft) |
| Range (at standard clear) | |
| Range Direct Reflex measurement | |
| Kodak Gray (18% reflective) | >300 m (984 ft) |
| Kodak Gray (90% reflective) | >800 m (2625 ft) |
| GENERAL SPECIFICATIONS | |
| Optical Plummet | Optical 2.4x |
| Telescope | |
| Magnification | 30x |
| Aperture | 40 mm (1.57 in) |
| Illuminated Crosshair | Variable (10 steps) |
| Display Screen | LM80 |
| Operating Temperature | -20 °C to + 50 °C (-4 °F to + 122 °F) |
| Battery | |
| Type | Rechargeable Li-Ion battery 11.1 V, 4.4 Ah |
| Charge time | 6-hour charging time |
| Operating time | Approx. 6 hours on a single battery |
| Class II laser product label | Yes |
| Data transfer and recording | |
| Memory Capacity | Via LM80 |
| Data input/output | RS232 |
| LM80 Interface | Required |
| Manufacturer | Trimble |
|---|
