Trimble SNR920 902-928 Mhz GPS Machine Grade Control Radio

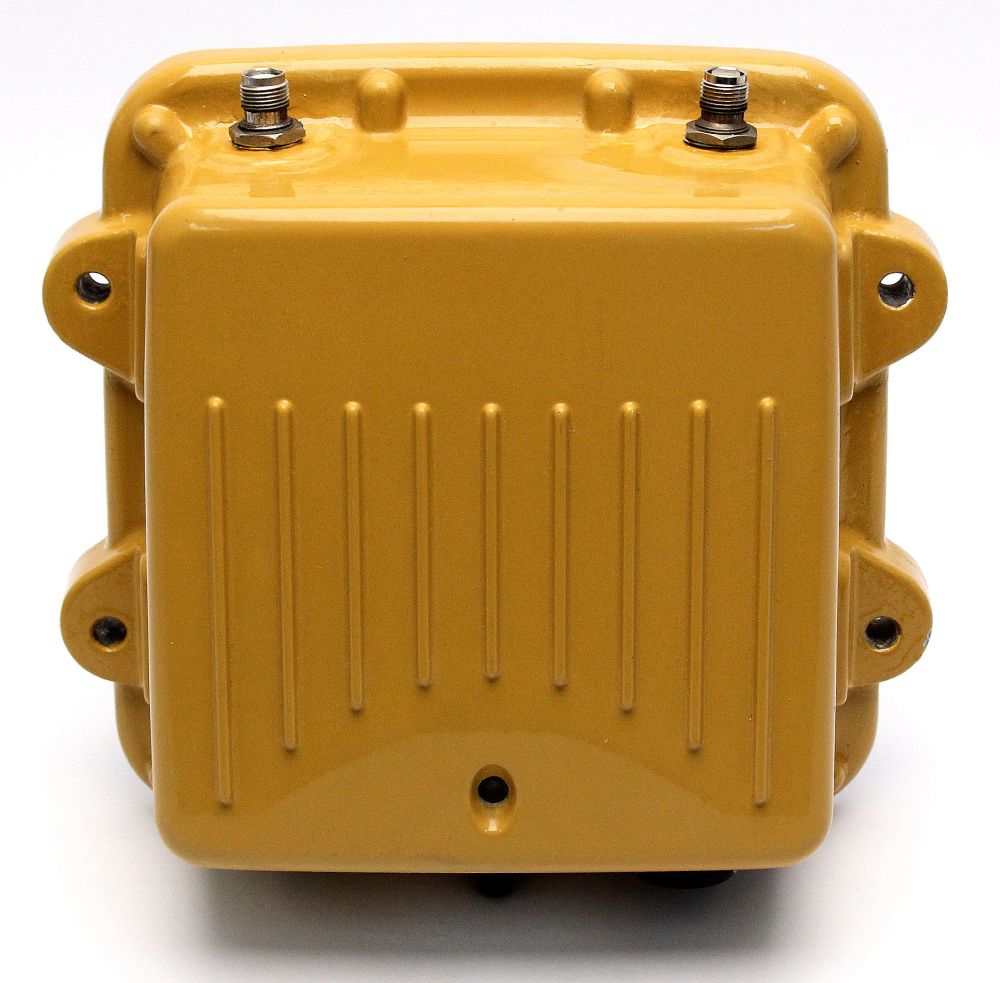

Trimble SNR920 900 MHz On Machine Radio
- 902 - 928 MHz Internal Radio
- 2.4 GHz WiFi
- This Unit Was Serviced By A Trimble Authorized Service Center
- 902 - 928 MHz Internal Radio
- 2.4 GHz WiFi
- This Unit Was Serviced By A Trimble Authorized Service Center
$1,279.00
Availability:
In stock
SKU
XPGPS139
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Trimble SNR920 900 MHz On Machine Radio [ID- X3950-L/T*]
- 902 - 928 MHz Internal Radio
- 2.4 GHz WiFi
- This Unit Was Serviced By A Trimble Authorized Service Center
* Antenna
Request a Quote for
Trimble SNR920 On Machine Radio
Rugged, 900MHz SNR920 On-Machine Radio for Grade Control Systems
The Trimble® SNR920 is a multi-network, 900MHz on machine radio designed specifically for use on grade control system applications for the construction and mining industries. The SNR900 on machine radio has been designed for use within a Trimble GCS900 Grade Control System. It offers outstanding features and benefits for on-machine applications:
The SNR900 on machine radio can be used as a replacement radio on Trimble SiteVision® systems. This rugged unit is fully sealed against dust, rain, splash, and spray for optimal reliability in all weather conditions to minimize downtime and lower overall operating costs.
Specifications;
Rugged, 900MHz SNR920 On-Machine Radio for Grade Control Systems
The Trimble® SNR920 is a multi-network, 900MHz on machine radio designed specifically for use on grade control system applications for the construction and mining industries. The SNR900 on machine radio has been designed for use within a Trimble GCS900 Grade Control System. It offers outstanding features and benefits for on-machine applications:
- Increased robust power handling allows direct connection to machine power for easier installation and cabling
- Controller Area Network (CAN) communication with the GCS900 system provides a simpler, more reliable system
- Error correction and a high-speed data rate ensures maximum performance
- Designed
for reliable operation in demanding RF environments and optimized for
GPS with increased sensitivity and jamming immunity
The SNR900 on machine radio can be used as a replacement radio on Trimble SiteVision® systems. This rugged unit is fully sealed against dust, rain, splash, and spray for optimal reliability in all weather conditions to minimize downtime and lower overall operating costs.
Specifications;
| Standard Radio Platform Features | • Rugged machine mounted radio
• 12 and 24V operation • Flexible, rubber-duck style antennas • Field upgradeable software • Two RS232 serial ports • One CAN (J1939) bus port (250kbps) • Ethernet (IEEE 802.3) Port (10Mbps) • LED provides information on radio status • User configuration / troubleshooting via PC tool • Wi-Fi Radio - Wireless Data Sync, 802.11b/g |
| Physical Characteristics | |
| Height (radio only) | 220 mm (8.7 in.) |
| Height with radio antennas | 400 mm (15.7 in.) |
| Width | 215 mm (8.5 in.) |
| Depth | 85 mm (3.3 in.) |
| Mounting | 7 mm holes, 86 x 186.79 mm rectangular pattern, mounted with 6 mm fasteners |
| Weight | 2.7 kg |
| Connector | 26 pin Amphenol bayonet, sealed |
| Indicator (1 yellow LED) | • Booting/Rebooting: LED is
illuminated continuously when powering up.
• Monitor Mode: slow blink (1/2 Hz) • Normal Operation: o With Corrections: LED flashes at the rate that it receives corrections (typically 1Hz) o Without Corrections: LED is illuminated continuously. |
| Environmental Characteristics | |
| Temperature |
Operating: -40 °C to +70 °C (-40
°F to +158 °F) Storage: -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 100% fully sealed, waterproof |
| Sealing | 100% Factory Tested to +/-5 psi sealing |
| Vibration | 9.8 gRMS |
| Electrical Specifications | |
| Input Voltage Range | 9 to 32 VDC |
| Startup Current for both 12 V and 24 V | 1.24 A |
| Reverse Polarity Protection: | Yes |
| Load Dump Protected: | Yes |
| EMC | Emissions: Compliant with CE,
FCC Part 15
Susceptibility: Compliant with CE, FCC Part 15 |
| GPS RF Performance | |
| Transmit Power: | 28.5 dBm, .7 W |
| Receive Sensitivity | -105 dBm |
| Frequencies | 902–928 MHz USA, Canada |
| Data Rate | 128 kbps |
| Range | 3 km line of sight typical |
| Wi-Fi RF Performance | |
| Transmit Power | 15 dBm, 32 mW |
| Receive Sensitivity | -87 dBm |
| Frequencies | 2.4 - 2.4835 GHz worldwide |
| Data Rate | 1Mbps-54Mbps |
| Range | 300 m line of sight |
| Manufacturer | Trimble |
|---|
