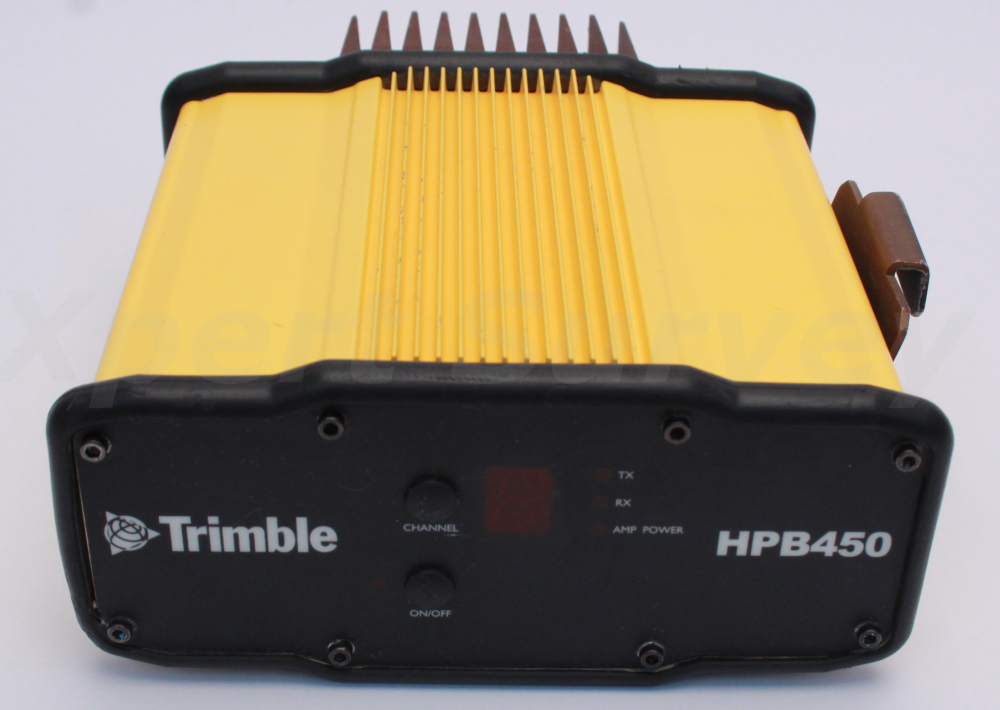

Trimble HPB450 450 - 470 MHz High Power Base

Trimble HPB450 Specs
The Trimble® HPB450 radio modem is a powerful and rugged 450 MHz radio specifically designed for GPS surveying systems.

EXTREMELY long range and high power
The HPB450 offers high or low power broadcast of GPS correction data. With its high power output of 35 W, the HPB450 is the most powerful radio of its type available, maximizing the achievable range. With a fast over-the-air data rate, the HPB450 also offers reduced latency for improved GPS positioning information.


Intelligent protocols and Autobase technology
Unique AutoBase™ technology in the HPB450 radio offers the convenience of automatic channel scanning; the radio scans through all available channels and then returns to the best one for transmission

Broadcast range and noise immunity are also significantly enhanced via the HPB450 radio’s forward error correction (FEC).

Seamless integration with Trimble GPS systems
The HPB450 radio is designed to compliment and fit seamlessly into new and existing Trimble GPS surveying systems. As such, it is built to the same standards of ruggedness, reliability, and suitability for the field as other Trimble products. It is lightweight and consumes minimal power for longer field operation, and you can rely on the radio to perform in the field day after day, whatever the conditions. With its built-in mounts the radio can be mounted on any tripod.

The HPB450 is also easy to use, with a user interface that includes a channel display, LEDs to indicate system status, and on/off control. Configuring the radio is also possible using your Trimble field software or supplied PC software.

Features:

• The surveying industry’s most powerful radio for GPS base stations
• Rugged and reliable whatever the conditions
• Intelligent and easy to use
• Compatible with any GPS surveying system

Specifications:

TRIMBLE HPB450 BENEFITS	“Auto Power On” feature Rugged construction withstands harsh job site conditions Designed for use with Trimble internal 450 MHz radios Built-in channel selector 4800, 9600, 19,2001 over-the-air baud rates 20 MHz splits
TRIMBLE HPB450 GENERAL SPECIFICATIONS
DTE-DCE interface	3-wire, RS-232, 38,400 baud maximum
User interface	Auto Power On, on/off button, channel button with AutoBase and AutoRover™, digital display, modem/power status indicators, RF power select toggle switch
POWER
External	9–16 V DC
Internal battery	NA
During TX (nominal)	110 W (35 W)
During RX (nominal)	1.9 W
ANTENNA
External	50 Ω, BNC
MODEM SPECIFICATI
Link rate/modulation	19,200 bps/4 level FSK (25 kHz)1 9600 bps/4 level FSK (12.5 kHz)1 9600 bps/GMSK (25 kHz) 4800 bps/GMSK (12.5 kHz)
Link protocols	Transparent, packet switched, digipeater, TRIMTALK™
Forward error correction (FEC)	Hamming code (12, 8) with data interleaving
RADIO SPECIFICATI
Frequency bands	410–430 MHz, 430–450 MHz or 450–470 MHz (only one band per radio)
Frequency controls	Synthesized 12.5 kHz resolution, ±2.5 ppm stability
RF power select	Low/high
RF transmitter output	3/35 W
Sensitivity	–110 dBm BER 10–5
Adjacent channel selectivity	>60 dB (25 kHz), >50 dB (12.5 kHz)
Type certification	All models are type accepted and certified for operation in the U.S.A. and Canada. For detailed information concerning your country’s type certification, please contact your local Trimble Authorized Distribution Partner
ENVIRONMENTAL SPECIFICATI
Operating temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage temperature	–55 °C to +85 °C (–67 °F to +185 °F)
Vibration/shock	ANSI/ASAE EP455
Enclosure	IEC 144/855420 IP66 watertight and dustproof
MECHANICAL SPECIFICATI
Dimensions (WxHxL)	15.8 cm x 7.0 cm x 16.7 cm (6.23 in x 2.77 in x 6.58 in)
Weight	1.34 kg (2.96 lb)
Data/power connector	5-pin LEMO #1 shell
Mount	Tripod bracket
