$0.01
Availability: Out of stock
SKU
XPTS79

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

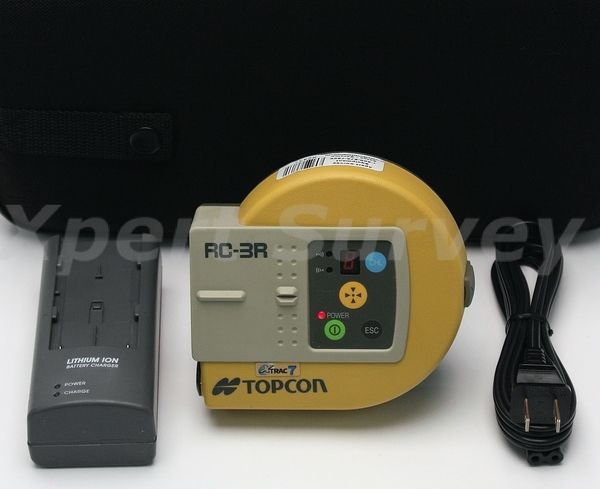

* Topcon RC-3R Infrared Remote Controller [ID- X2437-L/T*]
* Topcon BC-30 Battery Charger
* Battery Pack
* Power Cord
* Carrying Case (G)
Topcon RC-3R Remote For GPS-9000A & GTS-900A Total Stations

Specifications:
Operating temperature
-20°C to +50°C
Storing temperature -30°C to +60°C
Protection against water and dust RC-3R: IP65
Operating distance 5m~400 m (16ft ~1310 ft) (When using with the prism unit A6R/A6S)
* The operating distance may be shorter than normal in such the condition is not good by the heat simmer or strong direct sun shine to the detector. *
Turn-round operating time Approximately 10 seconds
Optical communicating time Approximately 3 to 4 seconds
Remote Controller RC-3R
Weight 0.3 kg
Dimensions 122 (D)× 110 (W)× 46 (H) mm
Bluetooth™ Unit
Bluetooth™ Standard
Bluetooth™ profiles

Bluetooth™ Specification v1.2
Generic Access Profile : Service Discovery Application Profile : Serial Port Profile
BD Address IEEE std802 48bit LAN MAC Address
Communication distance About 5m (The range will be different by a condition)
[Emitting Laser] Angle of Laser Each direction ±5° At greater distances, the laser light at the edge of the emitting range (angle) will be weaker by laser emitting characteristic.
100m (328ft): Approximately ±5°
400m (1310ft): Approximately ±3°
Laser class Class 1/ Class l
[Detecting Laser] Detecting range Horizontal ±35°
Vertical ±35°
Connector with 6 pins RS-232C Baudrate: 9600/4800 Bit length: 8 bits Parity bit: None Stop bit: 1 bit


More Information
Manufacturer Topcon
