Topcon GX-55 Machine Control Display 3DMC GX55
$5,399.00
Availability:
In stock
SKU
XPGC20
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Topcon GX-55 Control Box w/ Opts... [ID-L/T*]
- 3D-MC
* Factory Serviced
Request a Quote for
Topcon GX-55 Control Box
- 3D-MC

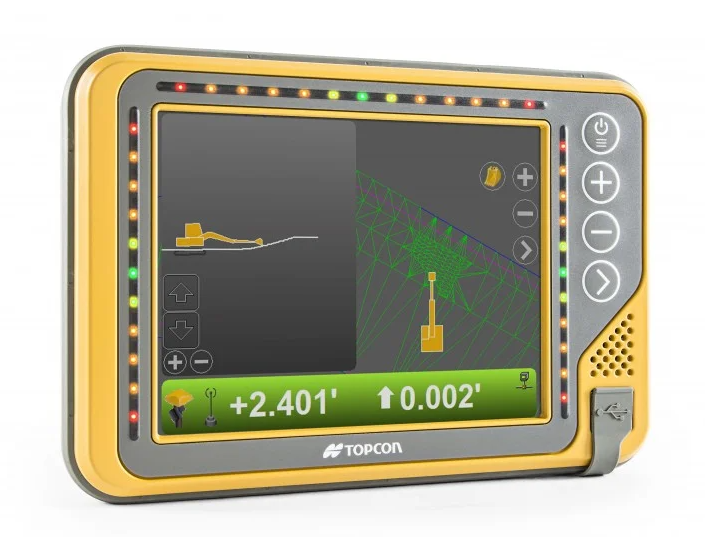

The GX-55 graphical computer display is designed for rugged machine environments. Light and compact with a full-color LCD touch sensitive screen and integrated grade indicator LEDS, Topcon's GX-55 is a fully functioning Windows computer that provides the operator with real-time grade information and control. The GX-55 is constructed of a strong cast housing and sealed internals, and features USB, Ethernet, CAN, and RS-232 ports.
Features:
- Large 6.5 inch diag. sunlight viewable color LCD with touch screen
- Integrated grade indicator LEDS
- Flash download capability(application code revisions in the field)
- Easy-access USB port for saving and downloading job files
| Specifications | |
| Electrical | |
| Supply Voltage | 19-32 VDC |
| Supply Current | 2A Typical operating current - Maximum at 10VDC input power, no peripheral equipment 7A Maximum operating current |
| Switched Output Power | 5A Sensor/Conditioned output power |
| Ports | USB (2) Ethernet RS-232 CAN(2) Digital inputs (2) |
| Physical | |
| Display Panel | 640x480 Color VGA, enhanced brightness with analog touchscreen |
| Housing | Cast aluminum |
| Audio | 1ea environmentally sealed speaker w/ 1.5 watt amp |
| Switches | 4 ea momentary pushbutton (power & navigation) |
| Connectors | 26 pin AMP connector 1 ea 19 socket MIL-C-5015 cylindrical connectors Gold plated contacts, conductive anticorrosive plated housing |
| Weight | 2lb 13 oz. |
| Environment | |
| Operating Temperature | -40°C to +70°C |
| Shock Rating | 25G 11ms 1/2 sine wave each axis |
| Vibration Rating | 10-200Hz random 7.7 Grms |
| Salt Fog Test | 48 Hours (ASTM B117-97) |
| Manufacturer | Topcon |
|---|
