Topcon FC-200 Field Controller Data Collector w/ Pocket 3D
* Topcon FC-200 Field Controller w/ Options... [ID - X3574-L/T*]
- Pocket 3D V.9.2
- Range Pole
- GPS (Topcon RTK)
- Optical Prism
- Laserzone Millimeter
- MultiBase RTK
- Advanced Coordinates
- Topo Survey
- Stake Out
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

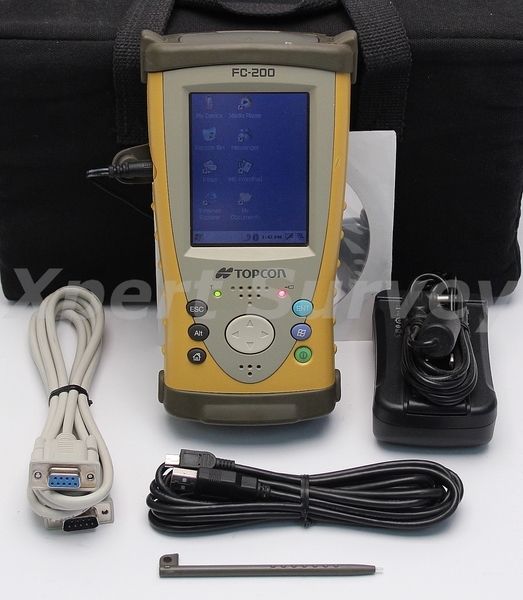

* Topcon FC-200 Field Controller w/ Options... [ID - X3574-L/T*]
- Pocket 3D V.9.2
- Range Pole
- GPS (Topcon RTK)
- Optical Prism
- Laserzone Millimeter
- MultiBase RTK
- Advanced Coordinates
- Topo Survey
- Stake Out
* AC Adapter/Charger
* Power Cord
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On CD-ROM
* Carrying Case (G)
Topcon FC-200 Data Collector
Field Data Comes Alive
If you are looking for a rugged, compact field controller that provides big-time results, look no further than Topcon’s FC-200. The FC-200 provides advanced software functions such as the large key pop-up keyboard for data entry and incorporates the graphical Windows® CE.NET 5.0 operating system on a crisp, bright, color touch screen display. Watch your field data come alive with Topcon’s FC-200.
Expandability Made Easy
Topcon knows that expandability is important to professionals in the field. The FC-200 allows quick and easy access to SD and CF card slots for data transfer and exchange with other devices. No tools or extra process is needed to access these card slots. In addition, with Bluetooth® wireless technology built-in to the FC-200, the CF card slot remains open for expanded memory.
Removable Robotic Radio
The FC-200 can mount an RS-1 robotic radio on the back of the unit. This compact addition makes the FC-200 the perfect controller for our robotic series of instruments.
Features:
- Built-in Bluetooth® wireless technology
- Ultra-bright, TFT, color touch screen display
- Windows® CE.NET 5.0 operating system
- Internal WiFi Optional
- Easy access Compact Flash and SD Media card slots deliver memory expansion and connectivity options
- 520MHz XScale processor
- Removable, Robotic Radio
- 128/256MB SDRAM, 256/512MB Flash ROM
Specifications:
| Microprocessor | Intel PXA270 XScale |
| Processor Speed | 520MHz |
| Operating System | Windows® CE.NET 5.0 |
| Memory | 128/256MB SDRAM 256/512MB Flash ROM |
| Interface Serial USB Card Slot |
RS-232C (D-sub 9) USB rev 1.1 (Type Mini-B and Type A) SD (SDIO/MMC) Compact Flash (Type I/II) |
| Bluetooth Capable | Yes |
| Wireless LAN | Yes (optional) |
| Display | 320 x 240 QVGA (portrait) |
| Color Sunlight Readable | TFT |
| Backlight | Backlight (LED) |
| Keyboard | 7 key w/smart keyboard |
| External Power | Yes |
| Audio | Sealed Speaker (mono) |
| Sealed Microphone | Yes |
| Environmental | IP-66 |
| Operating Temperature | -4°F to +122°F (-20°C to +50°C) |
| Dimensions | 7.72 in. x 4.21 in. x 2.40 in. (196x107x61mm) |
| Weight | 1.6 lbs (720g) (includes batteries) |
| Batteries | Removable Li-ION rechargeable |
| Operation | 15+ Hrs Single batt (normal use) |
| Manufacturer | Trimble |
|---|
