Topcon FC-100 Field Controller Data Collector w/ TopSurv
Topcon FC-100 Field Controller Data Collector w/ Options... [ID- X2688-L/T*]
- TopSURV V.6.11.01
- TS
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

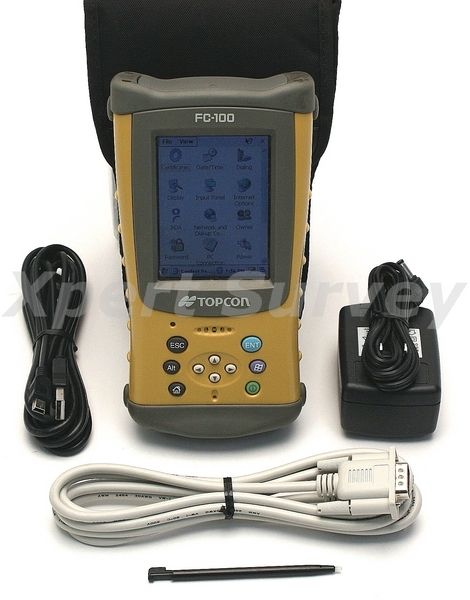

* Topcon FC-100 Field Controller Data Collector w/ Options... [ID- X2688-L/T*]
- TopSURV V.6.11.01
- TS
* AC Adapter/Charger
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On CD
* Stylus
* Carrying Case [G]
Topcon FC-100 Field Controller
Excellent environmental resistance
Toughness body conforming to IP66 in dustproof and weatherproof performance. Environmental resistance that allows use under severe environment at surveying, civil engineering and other sites.
Long-duration batteries
Batteries in the data collector power 19 hours enough to power site work for one day.
Excellent operability by Windows® CE. NETTM 4.2
Key operation in addition to visual operation using a touch panel. Complete wireless communication at sites using BluetoothTM.
Versatile data communication
Versatile media can be used including CF card, SD card, USB, serial communications and BluetoothTM. Excellent expansibility taking interlocking with surveying and civil engineering sensors and data interchange with personal computers.
Specifications:
| CPU performance | |
| CPU | Intel Xscale PXA255 |
| OS | Microsoft® Windows® CE.NET 4.2 |
| Memory | |
| SDRAM | 64MByte |
| ROM | 512KByte (Flash ROM) + 64/128MByte (CF Card) |
| Display | 240×320(QVGA)Color TFT semi-light transmission LCD |
| Keyboard | 10-keys |
| Input voltage | 8.4V to 18V |
| Operating Time | 19 hours |
| External output | |
| Interface | RS-232C(D-sub 9 pin)×1,USB(mini typeB)×1 |
| Card slot | CF card (type ll)×1, SD card ×1 |
| External power input | 1 port |
| Operating environment | |
| Operating temperature range | Operating temperature : -20°C to 50°C |
| Environmental resistance performance | IP66 (Dustproof, Waterproof / Based on the standard IEC 60529) |
| Dimensions (H)×(W)×(D) | 182×102.8×58.3mm |
| Weight | 600g (including battery) |
| Manufacturer | Topcon |
|---|
