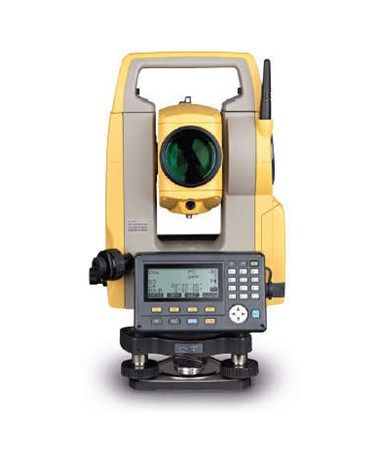

Topcon ES-105 5" Reflectorless Total Station

Topcon ES-105 5" Total Station

The new ES Series was designed from the ground up to deliver the very latest technological advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement. Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy. Measurements are captured faster than ever, and with a beam width of 15mm (over 30m), the bright red laser dot pinpoints features with ease.

Topcon is proud to offer another World’s First technology in all ES Series total stations TSshield™. Every instrument is equipped with a telematics based multi-function communications module providing the ultimate security and maintenance capabilities for your investment.If your activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it – your total station is secure anywhere in the world! In the same module you have daily connectivity to cloud-based Topcon servers that can inform you of available software updates and firmware enhancements.

Ultra-Powerful, Advanced EDM

• 500m non-prism range
• 4000m prism range
• Less than 1 second fine measurement
• Coaxial red laser pointer
• Pinpoint, precise beamspot

Easy Access USB 2.0 Memory

• Up to 8GB storage
• Environmentally protected
• Compatible with industry standard thumb drive

Rugged, Waterproof Design

• Waterproof/Dustproof IP66 design handles the toughest environments
• Magnesium-alloy housing providing stable angle accuracy
• Graphic display and alphanumeric keyboard (standard)
