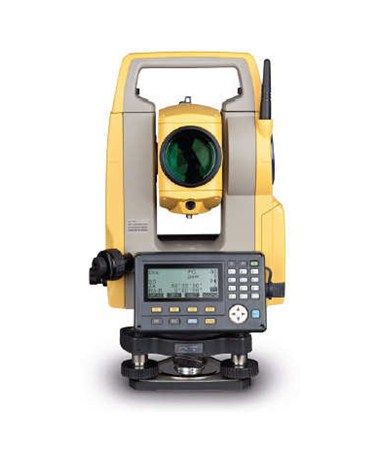

Topcon ES-103 Reflectorless Total Station

Featuring a class leading EDM unit, the ES-103 total station has 1”/3” accuracy and is able to measure up to 3,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

$0.01

Availability: Out of stock

SKU

XPES103

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Name *

E-mail address*

Phone Number

Country

Comment

Included

Topcon ES-103 Reflectorless Total Station

Description

Topcon ES Series ES-103

Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology

The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES-103 is able to measure up to 3,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

	Ultra-Powerful, Advanced EDM 500m non-prism range 3000m prism range Less than 1 second fine measurement
	The exclusive LongLink™ communications functionality in every ES Series Model provides operational capabilities never before offered in a manual total station. With a 300m range wireless communication using Bluetooth Class 1 technology, you can now operate the data collector from the “smart-spot” of the crew, the prism pole. Also referred to the two-man, economical robot solution, Topcon’s new LongLink™ technology brings a whole new level of flexibility to your manual field crew.
	Advanced Angle Encoder System “Best in Class” 1” angle accuracy available Incorporates exclusive IACS (Intelligent Automatic Calibration System) on 1” & 2” models
	Ultimate in Rechargeable operation - 36 Hours! Up to 36 hours of operation on a single charge.*¹ Eliminates the need for nightly recharging and carrying extra batteries. Work with confidence all day without the worry of dead batteries.
	Rugged, Waterproof Design Waterproof/Dustproof IP66 design handles the toughest environments Magnesium-alloy housing providing stable angle accuracy Completely
	Easy Access USB 2.0 Memory Up to 8MB storage Environmentally protected Compatible with industry standard accessories and cables

QUICK SPECIFICATIONS
Angle Measurement
	Min. Resolution/Accuracy
ES-107	1”/3”
IACS (Independent Angle Calibration System)	Standard om 1” & 2” models
Compensation	Dual-axis compensator
Distance Measurement
Prism EDM Range	(ES-107 3000m)
Prism EDM Accuracy	2mm+2ppm
Non-Prism Range	500m
Non-Prism Accuracy	3mm+2ppm (0.3-200m)
Measuring Time	Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard	Dual, Graphic, Backlit LCD (ES-107 Single)
Battery Operation	up to 36 hours
Dust/Water Protection	IP66
Wireless Connection	Bluetooth Class 1
Operating Range	-20C to +50C -30C to +50C * -20C to +60C **

* special arctic version

** special high temperature model

More Information

More Information
Manufacturer	Topcon
