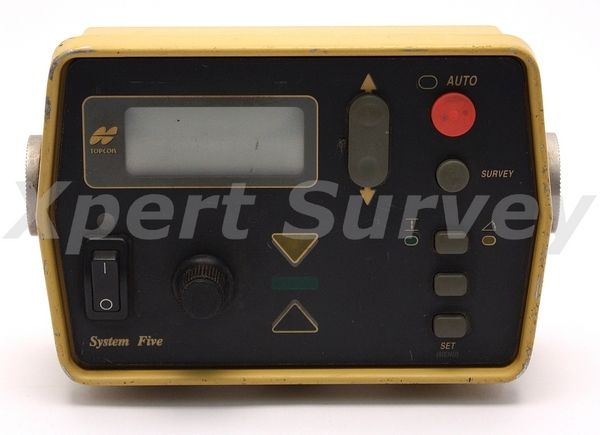

Topcon 9256 System 5 Five Paver Machine Control Box 9256-0006
Works With TM-1 Mast & LS-B2 Laser Receiver
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Topcon 9256-006 System Five Control Box [ID- X3857-L/T*]
Topcon 9256 System Five Control Box
Complete Control: Topcon 9256 System Five Control BoxTopcon 9256 System Five Control Box
Features & Benefits:
- Large, backlit grade LCD
- Bright, multi-color LEDs display continuous grade information
- Simple push button switches and grade knob operation
- Performance settings with secure access allows custom valve response tailoring
- Upgradeable flash memory from a PC or laptop, in the office or in the field
- Large, backlit custom LCD display
- Fingertip selected menus and functions
- Convenient, out-of-the-way mounting
The 9256 System Five Control Box is a single function, machine control platform featuring the latest operator interface and proportional valve control technologies. The System Five Platform is capable of hosting a wide range of application-specific software. The new control box is field reprogrammable and backwards compatible with System Four sensors. Simple design and new, sealed elastomer buttons allow for easy-to use menus and functions for a wide variety of machine control applications.
| System Five 9256 Control Box Specifications | |
| Electrical | |
| Supply Voltage | 10-30V DC |
| Supply Current | .5A Typical operating current 10.5A Maximum operating current |
| Emmissions | Applicable regulation: EN55022:1994 30-230MHz 40.0dB (mV/m) Max at 10m 230-1000MHz 47.0dB (mV/m) Max at 10m |
| Immunity | Applicable regulation: EN50082-1:1997 ESD: +/-8KV RF: 80-1000MHz 3 V/m Fast transient: +/-.5KV capacitively coupled RF common mode: 3V 150kHz to 8MHz (80% 1kHz AM) |
| Switched Output Power | 10A max Valve output power 5A max Sensor output power 10A max Total combined output current |
| Network | Topcon proprietary RS-485 network port Hardware controlled RS-232C port 2 wire serial bus for auxiliary I/O (non mission critical apps only) |
| Physical | |
| Display Panel | 31/2 digit 7-segment with custom symbols LED backlight |
| Housing | Cast aluminum |
| Switches | 7 ea. 1 million cycle sealed elastomer over 10oz stainless steel dome 1 ea. sealed rocker single pole 1 ea. 32 position rotary encoder w/gold contacts, o-ring seal |
| Connectors | MIL-C-5015 cylindrical connectors Gold Plated Contacts Conductive anticorrosive coating |
| Environmental | |
| Operating Temperature | -20°C to 60°C |
| Humidity | Mil Std 810D, method 506 95% humidity at 60°C soak |
| Shock Rating | 50G 6 axis 1/2 sine 11ms |
| Vibration Rating | 10-100Hz sweep 5G’s Natural resonate frequency ~40Hz |
| Manufacturer | Topcon |
|---|
