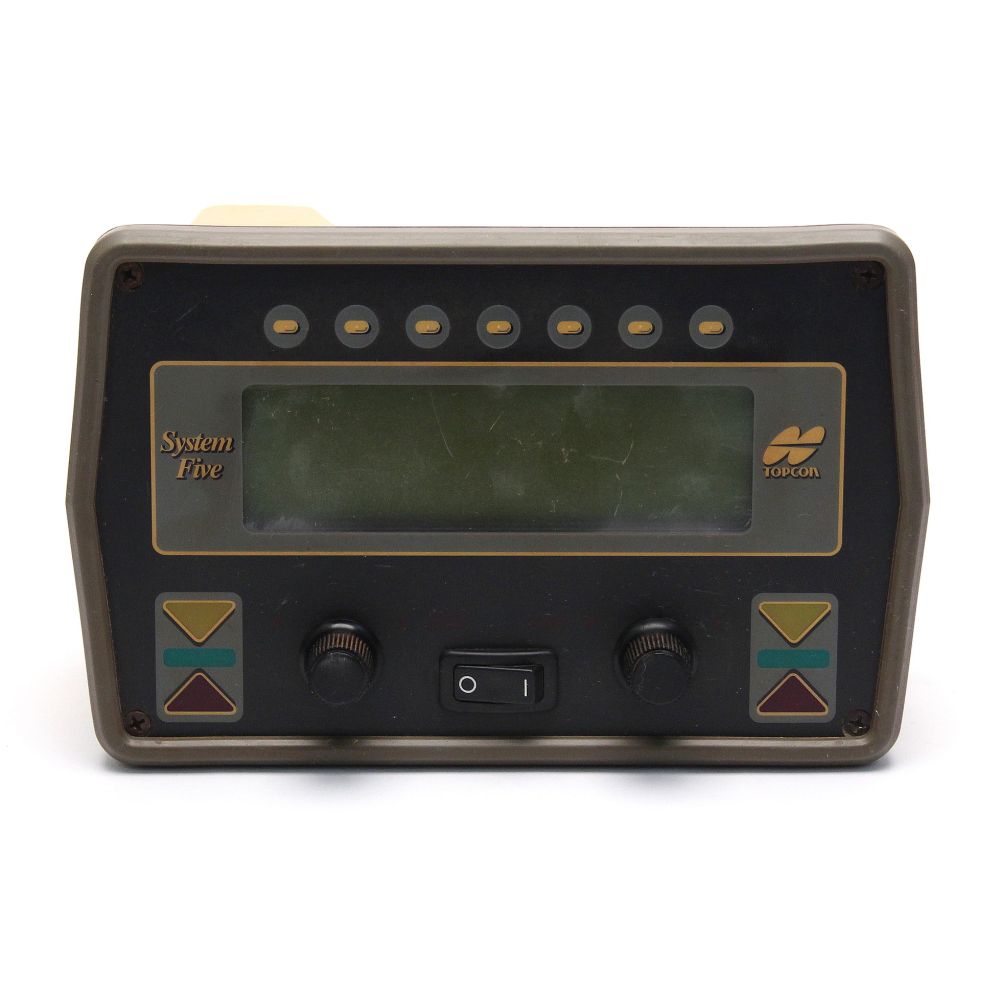

Topcon 9164 System 5 Five Dozer Machine Control Box 9164-0104

Topcon System Five 9164 Spec TableTopcon System Five 9164


Your topcon Grader Contgrol System Five is a versatile tool that combines Elevation and Cross Slope Control into a package powerful enough for your most demanding jobs, yet convenient enough to use everyday. In fact, System Five is so easy to learn that your benefits will start immediately:
* Increase Production: Make faster and fewer cuts. no extra passes to check grade.
* Control Material: Consistant grade along the entire job, not just at the hubs means no filling grade variations with costly base or paving material.
* Save Engineering Costs: Reduced hubs and staking, waiting on bluetops, and inspection time.

The Control Box is the operator's interface to System Five. It easily attaches to its mounting bracket with one clamp, and at the end of the day can be quickly removed fro storage. The control box connects to the Remote "Smart" knobs and teh machine power system with one small connector, and connects to the other system comnponents with one large connector.

Reliable, accurate survey and leveling interface for dual function automatic control, elevation on two scrapers, or elevation and slope for a single scraper. Perfect for surveying, grade verification and contouring.

Features & Benefits:
- Unique multiple elevation offset capability
- Fast, smooth proportional control compatible with OEM tractor valves or any type of electrical control valve
- Hydraulic control adjustment capable right from the box
- Current Regulated proportional outputs
- Large backlit LCD Digital Display
- Tough embedded membrane switches
- Fingertip selected menus and functions
- Bright adjustable 3-color LED grade lights
- Convenient, out-of-the-way mounting
- Optional remote switch boxes
- FLASH download capability (application code revisions)
- Additional communications bus for input and display accessories

The System Five Control Box is a dual-function, machine control platform featuring the latest operator interface and proportional valve control technologies. It easily attaches to its mounting bracket with one clamp, and at the end of the day can be quickly removed for storage. The control box connects to the Remote "Smart" KnobsTM and the machine power system with one small connector, and connects to the other system components with one large connector.

The System Five Platform is capable of hosting a wide range of application-specific software. The new control box is field reprogrammable and backwards compatible with System Four sensors. Simple design and a large, high resolution LCD screen allows for easy-to-use menus and functions for many types of construction and agricultural applications.
