Leica Piper 200 Pipe Laser
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

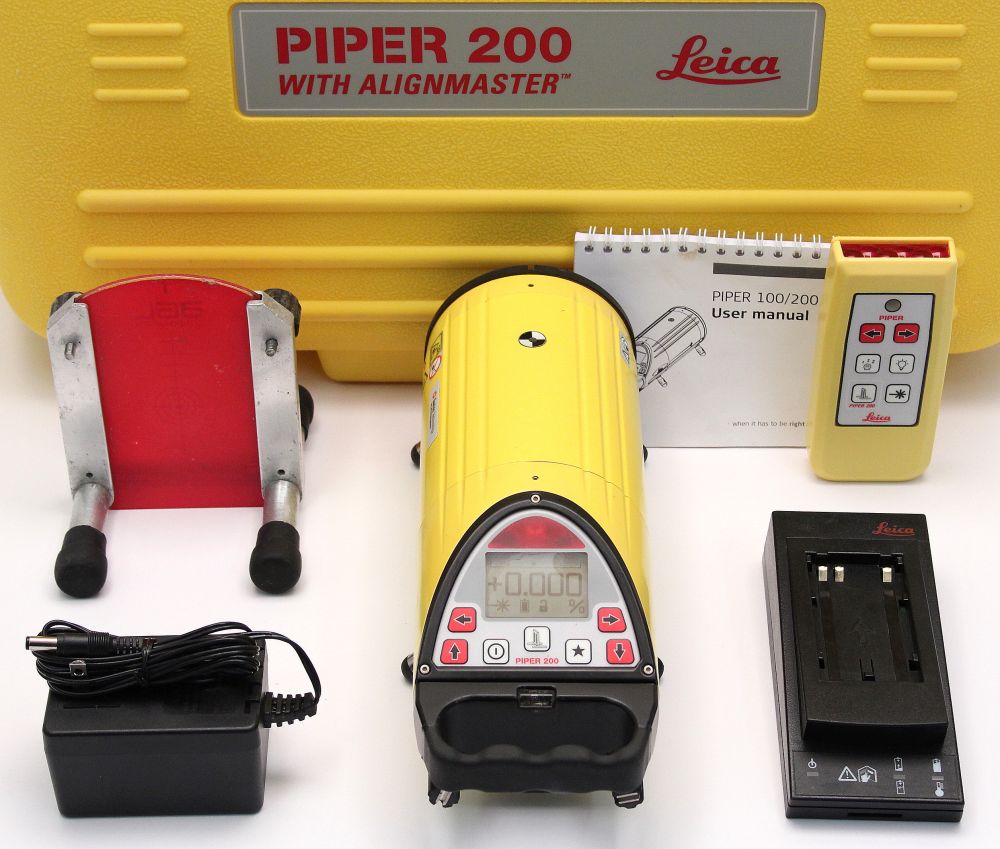

* Leica Piper 200 Red Beam Precision Pipe Laser [ID- BC# X3898-L/T*]
* Leica Battery Charger
* Leica IRPL Remote Control
* AGL Target w/ Base
* AC Adapter/Charger
* Hard Copy User Manual
* Hard Carrying Case
Leica Piper 200 Pipe Laser
With a full self-leveling range, cross axis compensation and Alignmaster (Piper 200), the Piper hits the target every time.
Piper 200 with Alignmaster™
Patented automatic targeting system searches and finds the target for second day setups.
Wide selfleveling capability
over full grade range. No need to tip the laser for steep slopes.Inside or outside the pipe, the Piper levels to the grade you need.
In the pipe
Self-centering, rubber tipped feet ensure the Piper stays working. Rock solid construction with cast aluminum housing for the toughest jobsite conditions.
Over the top
Optional scope and mount kit for above ground setups. Versatile, yet simple to operate and user friendly.
In the manhole
Its unique design and wide stable base make the Piper easy to set up even in the smallest invert. The Piper is 100 % waterproof with a positive pressure nitrogen seal.
Perfect for:
- Storm and sanitary sewer construction
- gravity flow pipe lines
- anywhere line and grade is required
Specifications:
| Laser Diode | 635 nm (red) |
| Laser Output | 4.75 mW maximum |
| Working Range | 200 m (650 ft) |
| Grade Range | -10 % to +25 % |
| Self-leveling Range | -15 % to +30 % |
| Line Movement | 6 m at 30 m (20 ft at 100 ft) |
| Battery | Lithium-Ion, 7.4 V/3.8 Ah |
| Operation/Charge | 40 h/4 h |
| Operating Temperature | -20° to +50° C (-4° to +122° F) |
| Dimensions (diameter x length) | 96 mm x 267 mm (3.8 in x 10.5 in) |
| Weight | 2 kg (4.4 lbs) |
| Construction | Cast aluminium |
| Seal | IPX8 |
| Wireless Remote | Front, up to 150 m (500 ft) Back, up to 10 m (35 ft) |
| Manufacturer | Leica |
|---|
