Leica Piper 100 Pipe Laser
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

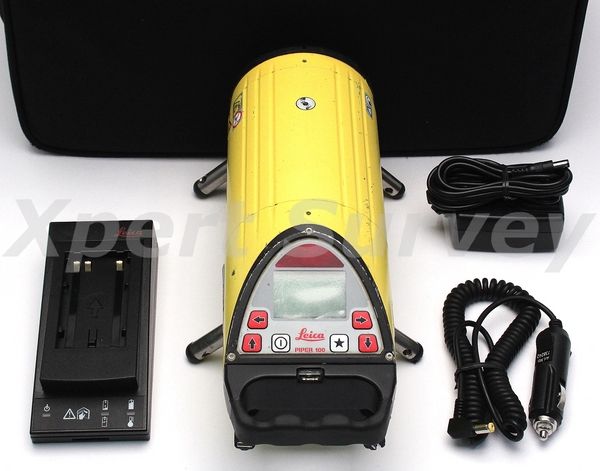

* Leica Piper 100 Red Beam Precision Pipe Laser [ID- X3775-L/T*]
* Leica GKL211 Battery Charger
* AC Adapter/Charger
* DC Car Charger
* Carrying Case (G)
Leica Piper 100 Pipe Laser
Solid performance – in the pipe, over the top, or in the manhole. Compact and powerful, the Piper is the only pipe laser that fits inside a 100 mm/4 in pipe.
In the pipe
Self-centering, rubber tipped feet ensure the Piper stays working. Rock solid construction with cast aluminum housing for the toughest jobsite conditions.
Over the top
Optional scope and mount kit for above ground setups. Versatile, yet simple to operate and user friendly.
In the manhole
Its unique design and wide stable base make the Piper easy to set up even in the smallest invert. The Piper is 100 % waterproof with a positive pressure nitrogen seal.
Perfect for:
- Storm and sanitary sewer construction
- gravity flow pipe lines
- anywhere line and grade is required
Specifications:
| Laser Diode | 635 nm (red) |
| Laser Output | 4.75 mW maximum |
| Working Range | 200 m (650 ft) |
| Grade Range | -10 % to +25 % |
| Self-leveling Range | -15 % to +30 % |
| Line Movement | 6 m at 30 m (20 ft at 100 ft) |
| Battery | Lithium-Ion, 7.4 V/3.8 Ah |
| Operation/Charge | 40 h/4 h |
| Operating Temperature | -20° to +50° C (-4° to +122° F) |
| Dimensions (diameter x length) | 96 mm x 267 mm (3.8 in x 10.5 in) |
| Weight | 2 kg (4.4 lbs) |
| Construction | Cast aluminium |
| Seal | IPX8 |
| Wireless Remote | Front, up to 150 m (500 ft) Back, up to 10 m (35 ft) |
| Manufacturer | Leica |
|---|
