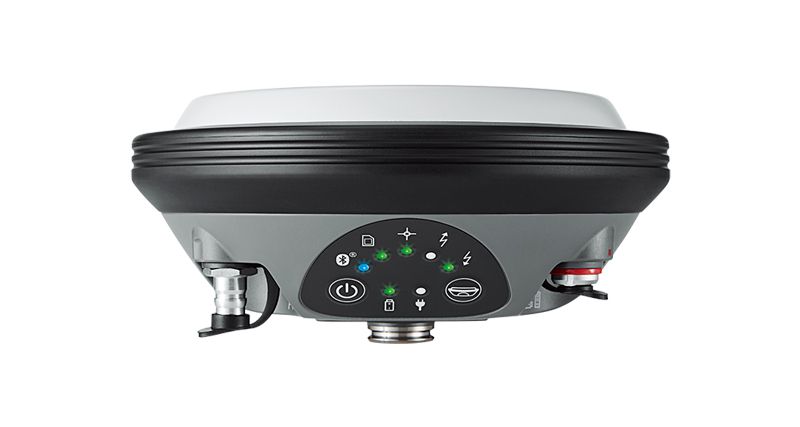

Leica GS16 GNSS Antenna Surveying RTK Rover Receiver
The Leica Viva GS16 is the most compact and powerful, self-learning GNSS smart antenna.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Leica GS16 GNSS Antenna Rover Receiver [ID- -L/T*]
* Battery Pack
* Carrying Case
Leica GS16 Smart Antenna Rover Receiver
Engaging software
The Leica Viva GS16 GNSS smart antenna is accompanied with the revolutionary Captivate software, turning complex data into the most realistic and workable 3D models. With easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions. Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.
Infinitely bridging the field to the office
Leica Infinity imports and combines data from your GNSS, total station and level instruments for one final and accurate result. Processing has never been made easier when all your instruments work in tandem to produce precise and actionable information.
Customer care only a click away
Through Active Customer Care (ACC), a global network of experienced professionals is only a click away to expertly guide you through any challenge. Eliminate delays with superior technical service, finish jobs faster and avoid costly site revisits with excellent consultancy support. Control your costs with a tailored Customer Care Package (CCP), giving you peace of mind you are covered anywhere, anytime.
Specifications:
| GNSS TECHNOLOGY | |
| Self-learning GNSS | Adaptive on-the-fly satellite selection Remote precise point positioning (3 cm 2D)1 Initial convergence to full accuracy 20 - 40 min, Re-convergence < 1 min Bridging of RTK outages up to 10 min (3 cm 2D) |
| Leica SmartCheck | Reliability 99.99% |
| Signal tracking | GPS (L1, L2, L2C, L5), Glonass (L1, L2, L32), BeiDou (B1, B2, B32), Galileo (E1, E5a, E5b, Alt-BOC, E62), QZSS (L1, L2, L5, LEX2), NavIC L53, SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band |
| Number of channels | 555 (more signals, fast acquisition, high sensitivity) |
| MEASUREMENT PERFORMANCE & ACCURACY | |
| Time for initialisation | Typically 4 s |
| Real-time kinematic (Compliant to ISO17123-8 standard) | Single baseline: Hz 8 mm + 1 ppm / V 15 mm + 1 ppm Network RTK: Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm |
| Post processing | Static (phase) with long observations: Hz 3 mm + 0.1 ppm / V 3.5 mm
+ 0.4 ppm Static and rapid static (phase): Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm |
| Code differential | DGPS / RTCM: Typically 25 cm |
| COMMUNICATIONS | |
| Communication ports | Lemo: USB and RS232 serial Bluetooth: Bluetooth® v2.00 + EDR, class 2 |
| Communication protocols | RTK data protocols: Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0,
3.1, 3.2 MSM NMEA output: NMEA 0183 V 4.00 and Leica proprietary Network RTK: VRS, FKP, iMAX, MAC (RTCM SC 104) |
| Built-in data links | 3.75G GSM / UMTS / CDMA phone modem Radio modem: Fully integrated, internal antenna Fully integrated, receive and transmit, external antenna 403 - 470 MHz, 1 W output power, up to 28800 bps over air |
| External data links | GSM / GPRS / UMTS / CDMA and UHF / VHF modem |
| GENERAL | |
| Field controller and software | Leica Captivate software Leica CS20 field controller, Leica CS35 tablet |
| User interface | Buttons and LEDs: On / Off and Function button, 7 status LEDs Web server: Full status information and configuration options |
| Data recording | Storage: Removable microSD card, 8 GB Data type and recording rate: Leica GNSS raw data and RINEX data at up to 20 Hz |
| Power management | Internal power supply: Exchangeable Li-Ion battery (2.6 Ah / 7.4 V) External power supply: Nominal 12 V DC, range 10.5 - 28 V DC Operation time: 7 h receiving (Rx) data with internal radio, 5 h transmitting (Tx) data with internal radio, 6 h Rx / Tx data with internal phone modem |
| Weight and dimensions | Weight: 0.93 kg / 3.20 kg standard RTK rover setup on pole Diameter x Height: 190 mm x 90 mm |
| Environmental | Temperature: -40 to 65°C operating, -40 to 80°C storage Drop: Withstands topple over from a 2 m survey pole onto hard surfaces Proof against water, sand and dust: IP68 (IEC60529 / MIL STD 810G 506.5 I / MIL STD 810G 510.5 I / MIL STD 810G 512.5 I) Vibration: Withstands strong vibration (ISO9022-36-08 / MIL STD 810G 514.6 Cat.24) Humidity: 100% (ISO9022-13-06 / ISO9022-12-04 / MIL STD 810G 507.5 I) Functional Shock: 40 g / 15 to 23 msec (MIL STD 810G 516.6 I) |
| Manufacturer | Leica |
|---|
