The Trimble Zephyr 2 GNSS antenna is a high-performance lightweight GNSS rover antenna optimized for precision RTK applications. The Zephyr 2 has the ability to modernized GPS signals, GLONASS, Galileo, OmniSTAR, and SBAS.

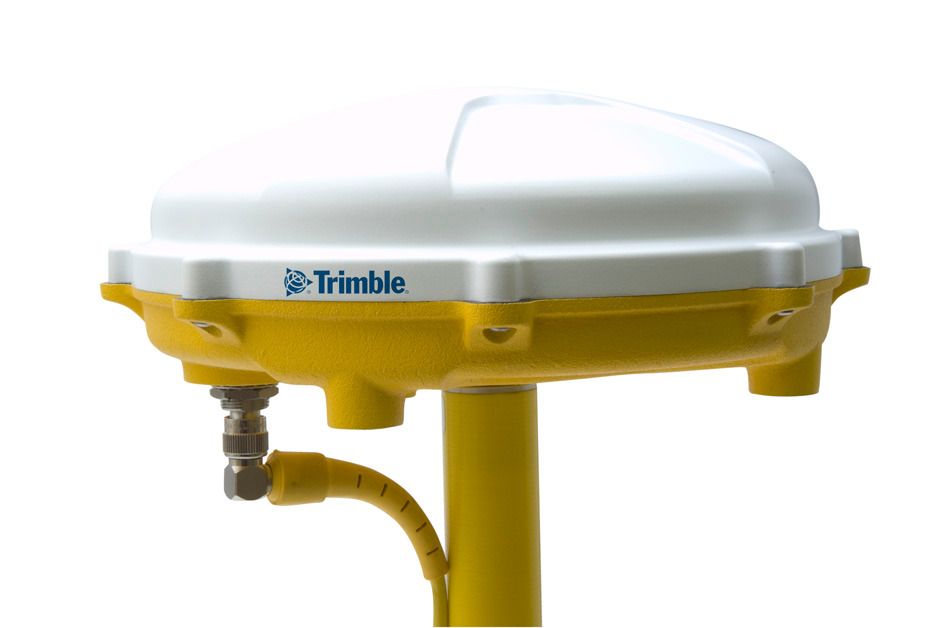

The Trimble Zephyr 2 Rugged Antenna is intended for installations subject to high shock and vibration on the job site. Ideal for drilling rigs, marine vessels, cranes and other vehicle applications, it offers precise positioning with sub-millimeter phase center accuracy.
The Zephyr 2 Rover and Zephyr 2 Rugged can be used for OmniSTAR reception; however better OmniSTAR signal reception can be achieved using the Trimble GA810 antenna.
Key features of the Zephyr 2 and Zephyr 2 Rugged:
Optimized for GNSS rover applications
Comprehensive GNSS support, including GPS Modernized signals, GLONASS, and Galileo
Robust low-elevation satellite tracking
Minimized multipath
Sub-millimeter phase center repeatability
Specifications:
PERFORMANCE
Broad GNSS Frequency Tracking Band Including:
GPS: L1, L2, L5
GLONASS: L1, L2, L3
Galileo: E1, E2, E5, E6
SBAS: WAAS, EGNOS, QZSS, Gagan, MSAS, and OmniStar
Quality signal tracking, even below 5 degrees elevation
Four point antenna feed for phase center stability and enhanced polarization
TNC female signal connector
Small cross-sectional area to reduce wind loading
13 dB amplifier margin supports cable runs of over 60 m without special coaxial cable or in-line amplifiers
North orientation marking on exterior
50 dB signal gain for reliable tracking in difficult environments
Low voltage, low power consumption
Integral low noise amplifier
5/8" x 11 female threaded stainless steel mount point
Powered by GNSS receiver via coaxial cable
Advanced LNA (low noise amplifier) to reduce jamming by high power out-of-band transmitters
HARDWARE
Dimensions
16.5 cm diameter x 7.6 cm height (6.5 in diameter x 3 in height)
Weight
0.64 kg (1.4 lb)
Operating Temperature
–40 ºC to +70 ºC (–40 ºF to +158 ºF)
Humidity
100% humidity proof, fully sealed
Shock and Vibration
Tested and meets the following environmental standards: Shock: MIL-STD-810-F to survive a 2 m (6.56 ft) drop onto concrete Vibration: MIL-STD-810-F on each axis
