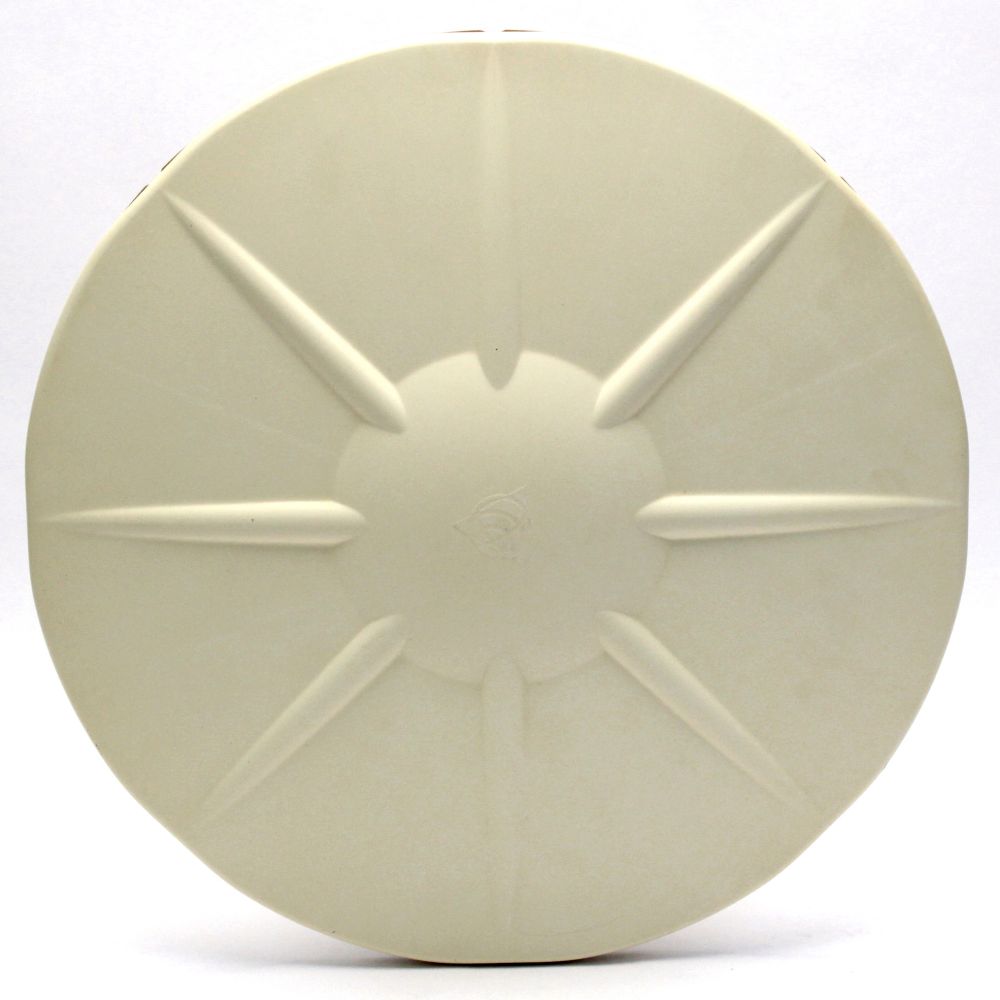

Trimble Zephyr Geodetic Model 2 GPS GLONASS GNSS Antenna

$799.00

Availability: In stock

SKU

XPGPS123

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Included

* Trimble Zephyr Geodetic Model 2 GNSS Antenna [ID- X3940-L/T*]

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Name *

E-mail address*

Phone Number

Country

Comment

Description

Trimble Zephyr Geodetic Model 2 GPS GLONASS GNSS

The new Trimble® Zephyr™ 2 and Zephyr Geodetic™ 2 antennas break new ground in GNSS surveying antenna technology. Both antennas support modular Trimble systems such as the Trimble® R7 GNSS and Trimble® 5700 GPS receivers, and can be used as part of the Trimble GNSS Infrastructure solution.

The Trimble Zephyr 2 GNSS antenna is typically used in roving applications. It minimizes multipath, and offers robust low elevation tracking and sub-millimeter phase center repeatability

A Trimble GNSS rover comprising the rugged Zephyr 2 and a receiver such as the Trimble R7 GNSS is extremely flexible: Attach the antenna to the top of a pole, wear it on the purpose-built Trimble backpack, or drive with the Zephyr 2 mounted on the roof of a vehicle. The Trimble Zephyr 2 supports the way you want to work.

COMPREHENSIVE GNSS SUPPORT
The Trimble Zephyr 2 and Zephyr Geodetic 2 antennas offer full support for coming and near-future GNSS signals, including GPS L2C and L5, GLONASS, and even Galileo. This technology future-proofing, in combination with the rugged durability of each antenna, means any investment in a Trimble Zephyr GNSS antenna will last for many years.

Features:

Comprehensive GNSS support, including GPS Modernization signals, GLONASS, and Galileo
Robust low-elevation satellite tracking
Minimized multipath
Sub-millimeter phase center repeatability
Ideal for fixed reference stations and GNSS infrastructure networks

Specifications:

PERFORMANCE
Broad GNSS Frequency Tracking Band Including:	GPS: L1, L2, L5 GLONASS: L1, L2, L3 Galileo: E1, E2, E5, E6 SBAS: WAAS, EGNOS, QZSS, Gagan, MSAS, and OmniStar
Quality signal tracking, even below 5 degrees elevation Four point antenna feed for phase center stability and enhanced polarization TNC female signal connector Small cross-sectional area to reduce wind loading 13 dB amplifier margin supports cable runs of over 60 m without special coaxial cable or in-line amplifiers North orientation marking on exterior 50 dB signal gain for reliable tracking in difficult environments Low voltage, low power consumption Integral low noise amplifier 5/8" x 11 female threaded stainless steel mount point Powered by GNSS receiver via coaxial cable Advanced LNA (low noise amplifier) to reduce jamming by high power out-of-band transmitters Zephyr Geodetic 2 Antenna Only Trimble Stealth Ground Plane – integrated lightweight stealth technology with enhanced right hand circular polarization to reduce multipath interference Supplementary radome not required (available if desired
HARDWARE
Dimensions	34.3 cm diameter x 7.6 cm height (13.5 in diameter x 3 in height)
Weight	1.3 kg (3 lb)
Operating Temperature	–40 ºC to +70 ºC (–40 ºF to +158 ºF)
Humidity	100% humidity proof, fully sealed
Shock and Vibration	Tested and meets the following environmental standards: Shock: MIL-STD-810-F to survive a 2 m (6.56 ft) drop onto concrete Vibration: MIL-STD-810-F on each axis
Input Voltage	3.5 V DC to 20 V DC
Input Current	125 mA maximum

More Information

More Information
Manufacturer	Trimble
