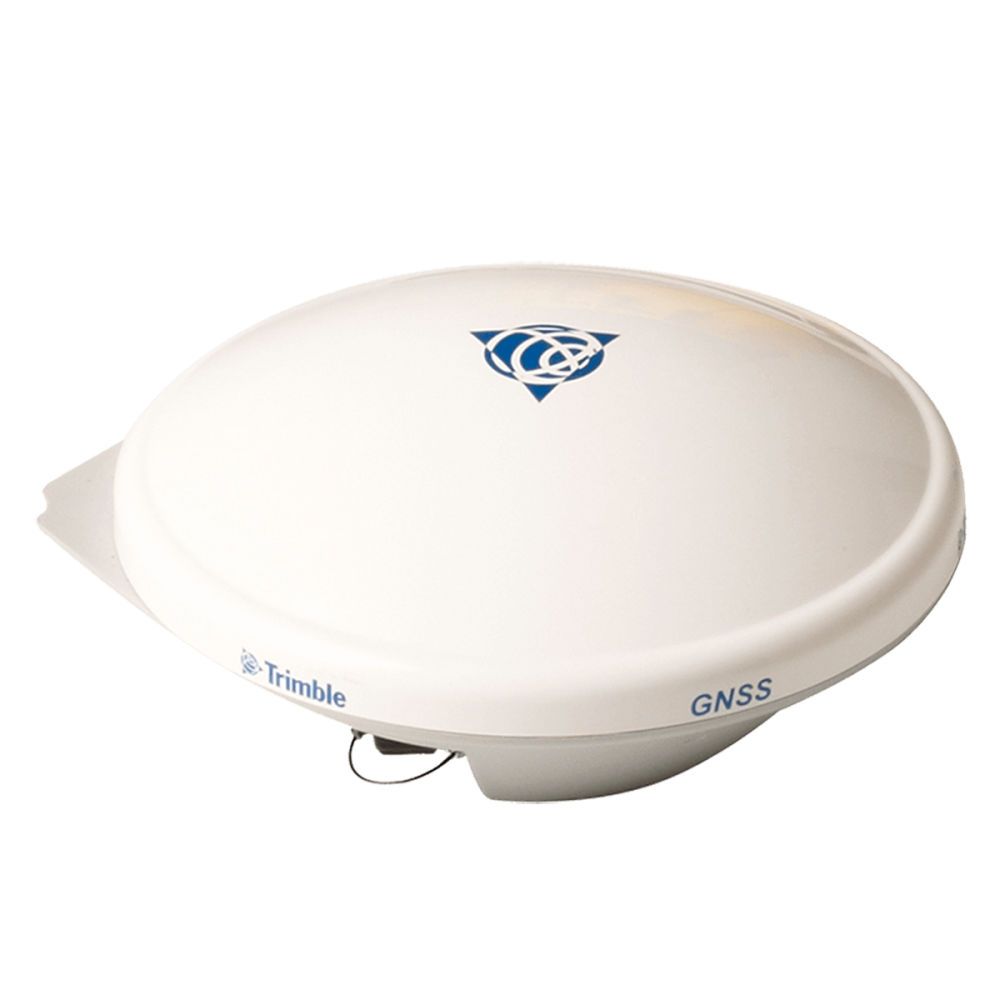

Trimble Zephyr 3 L1 L2 L3 L5 GNNS GPS GLONASS Rover Receiver Antenna Model 3
Comprehensive GNSS support, including GPS Modernization signals, GLONASS, BeiDou and Galileo
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Trimble Zephyr 3 Rover AntennaTrimble Zephyr 3 Rover Antenna
PRECISE AND DURABLE WITH MILLIMETER ACCURACY
The top of the range Trimble® Zephyr™ Rover antennas contain advanced technology for multipath reduction, outstanding low elevation satellite tracking and millimeter phase center stability.
A high-performing lightweight GNSS rover antenna optimized for precision RTK and roving applications. The Zephyr Rover minimizes multipath and offers robust low elevation tracking and millimeter phase center repeatability.
COMPREHENSIVE GNSS SUPPORT
The Trimble Zephyr 3 rover antenna offers full support for current and nearfuture GNSS signals including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, OmniSTAR, Trimble RTX and SBAS.
TRIMBLE ZEPHYR 3 ROVER
The Trimble Zephyr 3 Rover is a high performing lightweight GNSS rover antenna optimized for precision RTK and roving applications. It minimizes multipath and offers robust low elevation tracking and millimeter phase center repeatability.
Key Features:
► Comprehensive GNSS support, including GPS Modernization signals, GLONASS, BeiDou and Galileo
► Robust low-elevation satellite tracking
► Minimized multipath
► Millimeter phase center repeatability
► Additional Iridium and Japanese LTE filtering
► High signal gain (50 dB) for reliable tracking
► 5/8’’ - 11 stainless steel mounts
► Additional Iridium filtering above 1616MHz allows antenna to be used as close as 20m of Iridium transmitter
► Additional filtering below 1510MHz allows for antenna placement closer to Japanese LTE cell tower
► Trimble Stealth Ground Plane – integrated lightweight stealth technology with enhanced right hand circular polarization to reduce multipath interference
► Advanced LNA (low noise amplifier) to reduce interference by high power out-of-band transmitters
► 50 dB signal gain for reliable tracking in challenging environments and long cable runs
TECHNICAL SPECIFICATIONS
• Comprehensive GNSS Tracking:
– GPS: L1, L2, L5
– GLONASS: L1, L2, L3
– BeiDou: B1, B2, B3
– Galileo: E1, E5a, E5b, E6
– QZSS: L1, L2, L5, LEX
– IRNSS: L5
– SBAS: WAAS, EGNOS, GAGAN, and MSAS
– MSS: OmniSTAR, Trimble RTX
• Quality signal tracking, even at low elevations
• Four point antenna feed for phase center stability and enhanced polarization
• Powered by GNSS receiver via coaxial cable
| ENVIRONMENTAL QUALIFICATIONS | |
| Operating Temperature | –40 ºC to +85 ºC (–40 ºF to +185 ºF) |
| Humidity | 100% humidity proof, fully sealed, IP67 |
| Shock and Vibration Tested and meets the following environmental standards: | Shock: MIL-STD-810-F to survive a 2 m (6.56 ft) drop onto concrete |
| Vibration: MIL-STD-810-F on each axis | |
| Compliance | CE compliant including ISO 13766:2006, 2014/45/EU (RED), EN 60950, E-Mark and RoHS, FCC, IC and RCM compliant |
| PHYSICAL AND ELECTRICAL SPECIFICATIONS | |
| Dimensions | 16.5 cm diameter x 7.6 cm height (6.5 in diameter x 3 in height) |
| Weight | 0.64 kg (1.4 lb) |
| Input Voltage | 3.5 V DC to 20 V DC MSS Narrow Band Mode (1555 to 1559 MHz): >6.4 V DC to 9 V DC MSS Wide Band Mode (1525 to 1559 MHz): 3.5 V DC to 6.0 V DC and 9.4 V DC to 20 V DC |
| Input Current | 125 mA |
| Signal Gain | 50 dB |
| Signal Connector | TNC Female |
| Mounting | 5/8” - 11 Female Thread |
| MPN: | 105000-50-INT |
| Manufacturer | Trimble |
|---|
