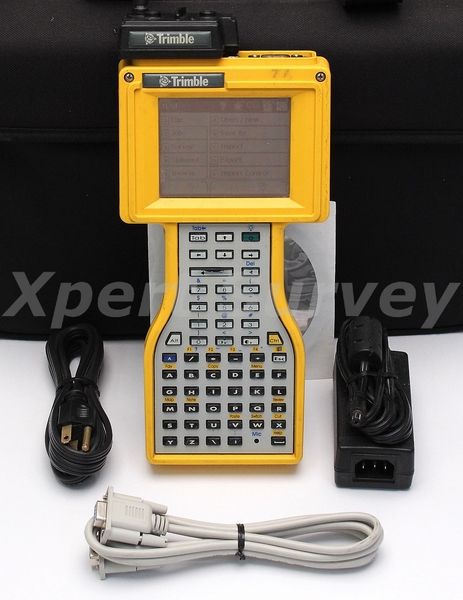

Trimble TSCe Field Controller Data Collector w/ Survey Pro & Survey Controller

* Trimble TSCe Data Collector Survey Controller [ID- X2952-L/T*]
* Survey Pro V4.20
- Standard
- PRO
- Leveling
* Survey Controller V11.02
- GPS Surveying
- TS Surveying
- Advanced Geodetic Support

$0.01
Availability: Out of stock
SKU
XPDC108

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

* Trimble TSCe Data Collector Survey Controller [ID- X2952-L/T*]
          * Survey Pro V4.20
          - Standard
          - PRO
          - Leveling
          * Survey Controller V11.02
          - GPS Surveying
          - TS Surveying
          - Advanced Geodetic Support
* AC Adapter/Charger
* Power Cord
* RS232 PC Interface Cable
* User Manual On CD
* Carrying Case [G]

Trimble TSCE Survey Controller
Advanced interoperability features make working with combined GPS and conventional survey data simple and efficient. All your survey project data is organized into a single Job file that can be loaded into a single office software package.


Innovative features and capabilities help speed up and improve the accuracy of every surveying operation, from establishing control to topographic measurements and stakeout, for both GPS and conventional instruments. You can do all of your work from the real-time map display that shows you all the points, lines, curves and roads in the database, as well as a background map for your site. The graphical display combined with the touch-screen makes it easier to survey more efficiently. Audible messages alert you to important events as they occur.


Features:

  • Is built tough, especially for use in the harsh surveying environment.
  • Has a Microsoft Windows CE operating system that you can run third-party applications on
  • Is a powerful, multitasking, touch-screen field computer
  • Has 32MB of data storage space
  • Infra-red communications port


Specifications:

Power usage:
Typical: less than 0.5W
Max: less than 1.2W
Size:
258 mm x 130 mm x 52 mm
(10.2" x 5.1" x 2.1") 74 mm (2.9") at handgrip
Weight:
1 kg (2.2 lbs.) including rechargeable battery
Power:
NiMH rechargeable battery pack; over 40 hours of continuous operation; 3-hour recharge
Memory:
32MB SDRAM; 32 MB of flash memory
Display:
1/4 VGA (320 x 240 pixels) transflective monochrome LCD with backlight
Touch screen:
Passive touch screen, works with stylus or finger
Keyboard:
57-key, tactile action with separate navigation, alpha and numeric keypad
Temperature:
Operating: –20°C to +60°C (–4°F to +140°F)
Storage: –30°C to +60°C (–22°F to +140°F)
Water resistance:
Waterproof against accidental immersion
Environmental
standards:
Meets appropriate IEC 68, EN61000, MIL-STD-810E standards for temperature, moisture and immersion, dust and sand, drop test, shock, vibration and altitude
EMC:*
Certified to EN55022
ESD:*
Certified to EN61000
Shock:
Rated for 26 drops from 1.22 m (4 feet) onto hard surface
Certification:
FCC class B, CE Mark, CSA approval, C-Tick
Serial port I/O:
9-pin RS-232 (115 kbps) COM1 with 5 V (250 ma) on pin 9
MultiPort I/O:
26-pin RS-232 (115 kbps) COM2; Ethernet 10-BaseT; USB client, power in/out, audio in/out
O-shell Lemo:
RS-232 (115 kbps)
Infrared:
IrDA Type 1 (115 kbps)
Audio:
Integrated speaker and microphone, external capability through MultiPort
Languages:
English, Spanish, German, French, Portuguese, Chinese (Simplified), Japanese and Korean. Additional languages are available through your local distributor



More Information
Manufacturer Trimble
