Trimble SPS850 Extreme GPS GLONASS L1 L2CS L5 430-450MHz Base Or Rover Receiver

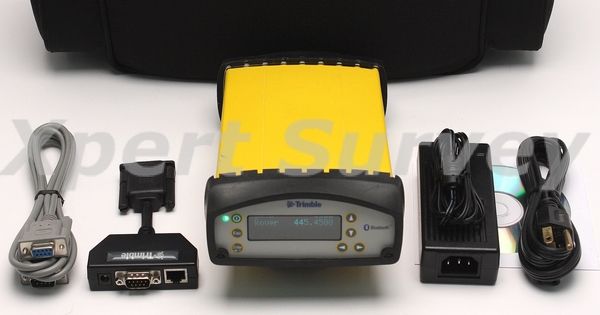

* Trimble SPS850 Extreme 430-450 MHz Base Or Rover Receiver [ID- X1467] w/ Options...
         - CMR Inputs
         - CMR Outputs
         - RTCM Inputs
         - RTCM Outputs
         - Data Collector
         - Moving Base
         - Bluetooth
         - L2CS
         - UHF Transmit
         - L5
         - LBand
         - Enable GLONASS
         - Enable Webserver
         - 430-450 MHz Internal Radio
         - Serviced By A Trimble Authorized Service Center
* Trimble Multi-Port Power Adapter P/N: 57168
* AC Adapter/Charger
* Power Cord
* RS232 PC Interface Cable
* User Manual On CD-ROM
* Carrying Case (G)

Trimble SPS850 Extreme Receiver
Flexible modular receiver for permanent base station, mobile base station and rover operations for GPS modernization.

The Trimble® SPS850 Modular GPS Receiver sets new standards for fast setup and flexible operation in both base station and rover applications.

The Trimble SPS850 Receiver supports Global Positioning System (GPS) modernization through support of L2C code, L5 GPS carrier signal, and GLONASS protecting your investment well into the future. The new signals will improve performance in tough satellite coverage environments (deep cuttings, mines, trenches, landfill sites and around tall buildings) and at longer ranges from the base station.

Modularity provides the ability to choose the appropriate GPS antenna for the application, Zephyr Geodetic Model 2 at the base station and the Zephyr Model 2 for the mobile units. The GPS and radio antennas can be mounted high in permanent and semi-permanent base station applications so that they are clear from obstructions and provide maximum radio coverage, while the receiver is locked in a secure environment safe from theft and environmental conditions. The choice of radio antennas allows the customer to either attach it to the receiver itself for mobile base station  and rover applications, or use a high gain or directional antenna for  maximum range on large job sites.


Standard System Features:

• Integrated GPS receiver and radio
• Internal 450 or 900 MHz radio with Transmit/Receive capability
• 72-channel L1/L2/L2C/L5/GLONASS GPS receiver
• OmniSTAR XP and HP service capable
• WAAS, EGNOS & MSAS Satellite Based Augmentation (SBAS) compatible
• Tough housing
• IP67 environmental rating
• -40 °C to +65 °C (-40 °F to +149 °F) operating temperature range
• 9V to 30V DC input power range with over-voltage protection
• Long life integrated battery. >10 hrs operation as a base station and >12 hrs as a rover with internal Transmit/Receive radio. (New battery operating at room temperature.)
• Integrated display and keypad for system configuration without a controller
• Integrated Bluetooth® for cable free configuration with a controller or Bluetooth enabled radio
• External GPS antenna choice for base station or rover operation
• Rubber duck antenna, or attach a high gain radio antenna for maximum coverage
• Small, lightweight design – 1.65 kg (3.64 lbs) (receiver with internal radio and battery) 4 kg (8.82 lbs) complete system weight (Rover including controller and rod)
• Permanent or semi-permanent base station, or mobile base station versatility
• ATV, belt, rod, supervisor’s vehicle or marine vessel mounting options for rover applications
• Capable of all site measurement and stakeout operations within radio or cellular coverage
• Capable of rover operation within a VRS (Virtual Reference Station) network
• Easy-to-use menu system for fast configuration and status checking
• Autobase for rapid and automated repeated daily base station setups
• Supports IP so that it can be configured and checked remotely over the Internet via an Ethernet port
• One base station receiver can broadcast corrections via multiple radio links. For example, broadcast corrections via an internal 450 MHz radio, as well as an external 900 MHz radio from the same base station receiver



SPS850 Base Station Features:

• Provides unrestricted operational range for rovers and grade control systems
• Base station and rover operation in a single receiver
• Integrated Transmit/Receive radio
• Integrated Ethernet and IP capability facilitates base station and receiver configuration over the Internet or via Ethernet connection on a computer network
• Web-based User Interface allows for remote configuration or troubleshooting


Specifications:

General Characteristics
Keyboard and display	VFD display 16 characters by 2 rows On / Off key for one button startup with Autobase Escape and Enter key for menu navigation 4 arrow keys (up, down, left, right) for option scrolls and data entry
Receiver type	Modular GPS receiver
Antenna type  Base Station  Rover  OmniSTAR Rover	Zephyr Geodetic Model 2 Zephyr Model 2 Z+ Antenna Also supports legacy antennas Zephyr, Zephyr Geodetic, Micro-Centered Choke ring, Rugged micro-centered for GPS L1/L2 operation only
Physical characteristics
Dimensions (L x W x D)	24cm (9.4 in) x 12cm (4.7 in) x 5cm (1.9 in) including connectors
Weight	1.65 kg (3.64 lb) receiver with internal battery and radio 1.55 kg (3.42 lbs) receiver with internal battery and no radio
Temperature Operating Storage	-40 °C to +65 °C (-40 °F to +149 °F) -40 °C to +80 °C (-40 °F to +176 °F)
Humidity	100%, condensing
Waterproof	IP67 for submersion to depth of 1 m (3.28 ft), dustproof
Shock and vibration Shock - non operating     Shock – operating  Vibration	Tested and meets the following environmental standards: Designed to survive a 2m (6.6 ft) pole drop onto concrete MIL-STD-810F, Fig.514.5C-17 To 40 G, 10 msec, saw-tooth MIL-STD-810F, FIG.514.5C
Performance characteristics
Measurements	Advanced Trimble Maxwell 5 Custom GPS chip Trimble R-Track ™ technology for tracking the new L2C Civil Signal GLONASS, L5 Signal for GPS modernization High-precision multiple correlator for L1, L2 and L5 pseudo-range measurements Unfiltered, unsmoothed pseudo-range measurements data for low noise, low multi-path error, low time domain correlation and high dynamic response Very low noise L1, L2 and L5 carrier phase measurements with <1mm precision in a 1 Hz bandwidth L1, L2 and L5 Signal-to-Noise ratios reported in dB-Hz Proven Trimble low elevation tracking technology 72 Channels L1 C/A Code, L2C, L5C, L1/L2/L5 GLONASS Full Cycle Carrier WAAS / EGNOS / MSAS
Code differential GPS positioning    Horizontal accuracy  Vertical accuracy   WAAS / EGNOS / MSAS2    Horizontal accuracy  Vertical accuracy	±(0.25m + 1 ppm) RMS, ± (9.84 in + 1 ppm) RMS ±(0.50m + 1 ppm) RMS, ± (19.68 in + 1 ppm) RMS     Typically <1 m (3.28 ft) Typically <5 m (16.40 ft)
OmniSTAR Positioning  XP Service Accuracy  HP Service Accuracy	Horizontal 20 cm (7.87 in), Vertical 30 cm (11.80 in) Horizontal 10 cm (3.93 in), Vertical 15 cm (5.90 in)
Real Time Kinematic (RTK) positioning    Horizontal  Vertical   Initialization time Regular RTK operation with base station   RTK operation with Scalable GPS infrastructure Initialization reliability	±(10 mm + 1 ppm) RMS, ± (0.38 in +1 ppm) RMS ±(20 mm + 1 ppm) RMS, ± (0.78 in +1 ppm) RMS     Single/Multi-base minimum 10 sec + 0.5 times baseline length in km, <30 km   <30 seconds typical anywhere within coverage area Typically >99.9%
Electrical characteristics
Power  Internal            External	Integrated internal battery 7.4V, 7800 mAh, Li-Ion Internal battery operates as a UPS in the event of power source outage Internal battery will charge from external power source when input voltage is >15V Integrated charging circuitry   Power input on Lemo 7 pin 0 shell Lemo is optimized for lead acid batteries with a cut off threshold of 10.5V Power input on the 26 pin DSub connector is optimized for Trimble Li-Ion battery input (PN 49400) with a cut off threshold of 9V Power source (Internal / External) is hot swap capable in the event of power source removal or cut off 9V to 30V DC external power input with over-voltage protection Receiver will automatically power on when connected to external power of 15V or greater
Power consumption	6.3w, in RTK rover mode with internal receive radio 8.5w, in RTK Base mode with internal transmit radio
Rover operation times on internal battery  450 MHz 2.0W systems  900 MHz 1.0W systems	12 hrs; varies with temperature 12 hrs; varies with temperature
Base station operation times on internal battery  External radio  450 MHz 0.5W systems*  900 MHz 1.0W systems	16 hrs; varies with temperature 10 hrs; varies with temperature 12 hrs; varies with temperature
Certification	Class B Part 15, 22, 24 FCC certification Canadian FCC CE mark approval C-tick approval UN ST/SG/AC.10.11/Rev. 3, Amend. 1 (Li-Ion Battery) UN ST/SG/AC. 10/27/Add. 2 (Li-Ion Battery) UN T1 – T8 (Li-Ion Battery) 49 CFR Sections 100-185 (Li-Ion Battery) WEEE
Communications  Port 1 (7-pin 0S Lemo)  Port 2 (DSub 26-pin)       Bluetooth	3-wire RS-232 CAN Full RS-232 (Via multi-port adapter) 3-wire RS-232 CAN USB (On the Go) (Via multi-port adapter) Ethernet (Via multi-port adapter) Fully integrated, fully sealed 2.4 GHz Bluetooth
Integrated radios     Channel spacing (450MHz)         Frequency approvals (900MHz)   450MHz Transmitter radio power output 900MHz Transmitter radio power output	Fully integrated, fully sealed internal 450 MHz, TX, RX or TXRX Fully integrated, fully sealed internal 900 MHz, TX, RX or TXRX   12.5 or 25KHz spacing available Dealer Changeable with TX, TX/RX End user settable with RX only     USA (-10), Australia (-20), New Zealand (-30)   0.5w / 2.0w 1.0w (30 dBm)
External GSM / GPRS, cell phone support	Supported for direct dial and internet based VRS correction streams Cell phone or GSM/GPRS modem inside TSC2 controller
Receiver position update rate	2 Hz, 5 Hz, 10 Hz and 20Hz positioning
Data Input and Output	CMR, CMR+, RTCM V2.0, RTCM 2.1, RTCM 2.3, RTCM 3.0
Outputs	NMEA, GSOF and RT17
Carrier	Supports BINEX and smoothed carrier
