Trimble SPS780 MAX L1 L2 GPS Rover Receiver Antenna 902-928Mhz 57305-90

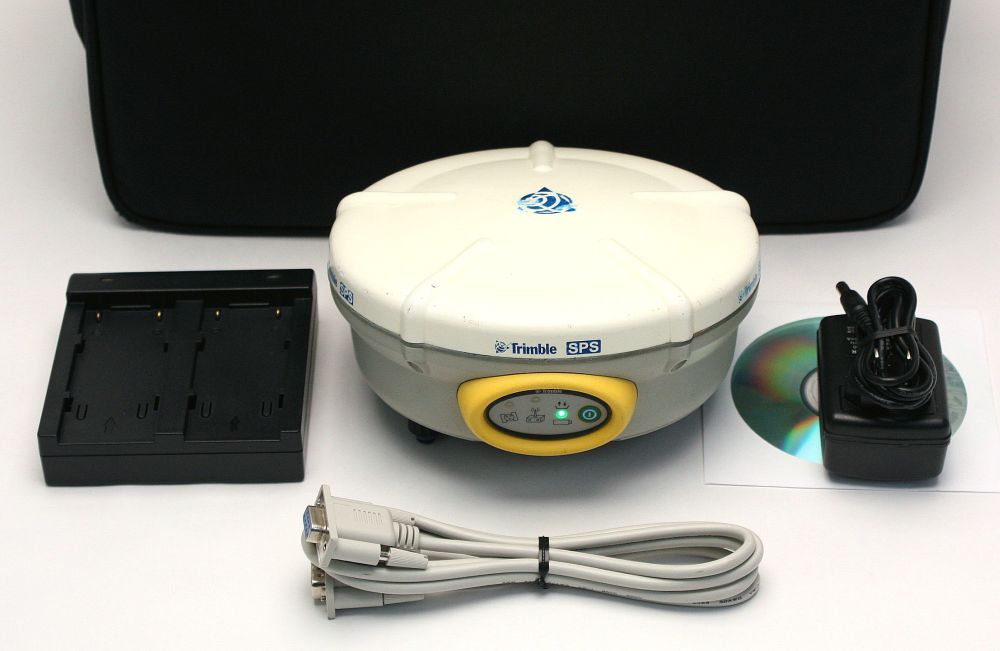

* Trimble SPS780 MAX Rover Receiver Antenna [ID- X1664-L/T*] w/ Options...
          - CMR Inputs
          - CMR Outputs
          - RTCM Inputs
          - RTCM Outputs
          - Data Collector
          - Binary Outputs
          - Bluetooth
          - UHF Transmit
          - Firmware Option
          - 902 - 928 MHz Radio P/N: 53620-90
* Li-ion Battery Charger w/ AC Adapter
* RS232 PC Interface Cable
* User-Manual On CD
* Carrying Case (G)

Trimble SPS 780 Max Receiver Installed Options 902-928 MHz Radio Module P/N: 53620-90

- CMR Inputs - CMR Outputs - RTCM Inputs - RTCM Outputs - Data Collector - Binary Outputs - Bluetooth - UHF Transmit - Firmware Option - 902 - 928 MHz Radio P/N: 53620-90

Trimble SPS780 MAX GPS Receiver
The Trimble® SPS780 Smart GPS Antenna is the simple solution to all your site measurement and stakeout applications. The rugged smart antenna includes an integrated radio, GPS receiver, GPS antenna and battery in a single, lightweight housing designed for maximum portability, quick setup and optimal flexibility.

The SPS780 Smart GPS Antenna offers contractors an easy-to-use, wide area measurement system for a variety of site preparation and grade checking applications. It can be used as either a rover for site measurement and stakeout or as a base station for site measurement and machine control operations. As a base station, the SPS780 takes little or no setup time and only requires a single keystroke each day to start up.


Features:

• Small, lightweight design – 1.31 kg (2.89 lb) (receiver only with battery) 3.7 kg (8.16 lb) complete system weight (Rover including controller and rod)
• Quick setup, high mobility base and rover receiver system ideal for small to mid size jobsites and for working on multiple jobsites on a daily or weekly basis
• 24-channel L1/L2 GPS receiver
• Performs all site measurement and stakeout operations within >5 km (Max or Extreme)
• Internal, removable, smart Li Ion battery provides up to 5.5 hrs GPS rover operation per battery. Batteries can be changed when flat, and returned to office or truck for charging leaving the receivers working in the field.
• Bluetooth® wireless technology for cable free, no hassle base or rover operation
• Simple keypad with on/off key and LED indicators for power, radio and satellite tracking
• 10 Hz update rate
• Allows measurement from a moving platform e.g. mounted on a vehicle, boat or ATV for increased efficiency on large jobsites.
• Base station or base/rover receiver options
• Rover option offers 10 Hz measurement update rate
• Unrestricted rover operation range from the base station
• Rover operates within a VRS network for base station-free rover capability

Specifications:

General characteristics
Keyboard and display	On / Off key for one button start up
LED indicators	For satellite tracking, radio link reception and power monitoring
Receiver type	Fully integrated “Smart” GPS antenna
Physical characteristics
Dimensions (WxH)	19 cm (7.5 in) x 10 cm (3.9 in) including connectors
Weight	1.28 kg (2.88 lb) receiver only with internal battery 3.70 kg (8.16 lbs) complete system weight (Rover including controller and pole)
Temperature Operating Storage	–40 °C to +65 °C (–40 °F to +149 °F) –40 °C to +75 °C (–40 °F to +167 °F)
Humidity	100%, condensing
Waterproof	IPX7 for submersion to depth of 1 m (3.28 ft)
Shock and vibration Shock - non operating Shock – operating Vibration	Tested and meets the following environmental standards: Designed to survive a 2m (6.6 ft) pole drop onto concrete To 40 G, 10 msec, sawtooth MIL-STD-810F, FIG.514.5C-1
Performance characteristics
Measurements	Advanced Trimble Maxwell™ Custom GPS chip High-precision multiple correlator for L1 and L2 pseudorange measurements Unfiltered, unsmoothed pseudorange measurements data for low noise, low multi-path error, low time domain correlation and high dynamic response Very low noise L1 and L2 carrier phase measurements with <1mm precision in a 1 Hz bandwidth L1 and L2 Signal-to-Noise ratios reported in dB-Hz Proven Trimble low elevation tracking technology 24 Channels L1 C/A Code L1/L2 Full Cycle Carrier WAAS/EGNOS support
Code differential GPS positioning Horizontal accuracy Vertical accuracy	±(0.25 m + 1 ppm) RMS ±(0.5 m + 1 ppm) RMS
WAAS differential positioning accuracy	Typically <5m 3D RMS
Real Time Kinematic (RTK) positioning Horizontal Vertical	±(10 mm + 1 ppm) RMS, ±(0.032 ft +1 ppm) RMS ±(20 mm + 1 ppm) RMS, ±(0.065 ft +1 ppm) RMS
Initialization time Regular RTK operation with base station	Single/Multi-base minimum 10 seconds + 0.5 times baseline length in km, up to 30 km
RTK operation with Scalable GPS infrastructure	<30 seconds typical anywhere within coverage area
Initialization reliability	Typically >99.9%
Electrical characteristics
Power	11 to 28 VDC external power input with over-voltage protection on Port 1 (7-pin Lemo)
Battery	Rechargeable, removable 7.4 V, 2.0 Ah Lithium–Ion battery in internal battery compartment.
Power consumption	<2.5 W, in RTK mode with internal radio
Rover operation times on internal battery 450 MHz systems 900 MHz systems	Receive only 5.5 hrs; varies with temperature Receive only 5.5 hrs: varies with temperature
Base station operation times on internal battery 450 MHz systems 900 MHz systems	Approximately 3.5 hrs; varies with temperature Approximately 5.5 hrs; varies with temperature
Certification	Class B Part 15, 22, 24 FCC certification, Canadian FCC, CE mark approval and C-tick approval
Communications characteristics
Communications	Port 1 - 3-wire RS-232 (7-pin 0S Lemo) Port 2 - Full RS-232 (Dsub 9-pin) Fully integrated, fully sealed 2.4 GHz Bluetooth
Integrated Radios 450MHz Transmitter radio power output	Fully integrated, fully sealed internal 450 MHz, TX, RX or TXRX Fully integrated, fully sealed internal 900 MHz, RX only 0.5 w
Receiver position update rate SPS780 Max	1 Hz, 2 Hz, 5 Hz, and 10 Hz positioning
Data Input and Output	CMR II, CMR+, RTCM 2.1, RTCM 2.3, RTCM 3.0
Outputs	14 NMEA, GSOF and RT17
Carrier	Supports BINEX and smoothed carrier
