Trimble SPS552H Heading Add-On Module Rover Receiver
This SPS552H is an add-on Heading GNSS receiver only, it cannot funtion as a stand alone rover or be interchanged into a base unit.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Trimble SPS552H Heading Add-On Module Receiver [ID- X2845-L/T*] w/ Options...
- L2 Tracking
- L2C
- GLONASS
- GIOVE
- Everest
- Maximum Observable Rate: 20Hz
- HTTPS
- CMR Input
- No Static CMR Input
- CMRx Input
- Heading Mode Only
- RTK Baseline length Limit: 2.4km
- NMEA
- Bluetooth
- GPRS
- Trimcomm Login Req.
- Enable 1PPS
- RTK Support

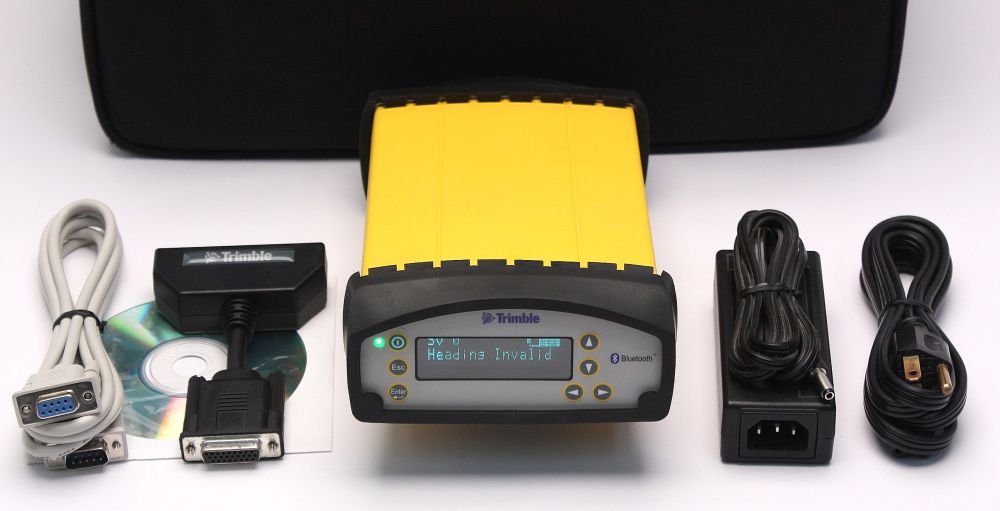

* Trimble Multi-Port Power Adapter
AC Adapter/Charger
Power Cord
RS232 PC Interface Cable
Carrying Case (G)
Trimble SPS552H Heading Add-On Module Receiver
| Trimble SPS552H Options |
| - L2 Tracking - L2C - GLONASS - GIOVE - Everest - Maximum Observable Rate: 20Hz - HTTPS - CMR Input - No Static CMR Input - CMRx Input - Heading Mode Only - RTK Baseline length Limit: 2.4km - NMEA - Bluetooth - GPRS - Trimcomm Login Req. - Enable 1PPS - RTK Support |
The SPS552H add-on Heading GNSS receiver is can be paired with an SPS852 receiver and outputs a vector, which is commonly used for precise heading. Use this receiver on a vessel or vehicle when you require a paired solution for position and heading when you are working in a challenging GPS environment. GLONASS is an optional extra. The receiver has a keypad and display, so you can configure the receiver without using a controller or computer.
| PS552H Specifications | |
| Configuration option | |
| Type | Module |
| Base and rover interchangeability | NO |
| Base operation | NO |
| Rover operation | NO |
| Heading and moving base operation | Heading Only |
| Rover position upate rate | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz |
| Rover maximum range from base | 2400m |
| Rover operation within a VRS network | NO |
| General | |
| Keyboard and display | VFD display 16 characters by 2 rows |
| On/Off key for one-button startup | |
| Escape and Enter keys for menu navigation | |
| 4 arrow keys (up, down, left, right) for option scrolls and data entry | |
| Dimensions (L × W × D) | 24 cm (9.4 in) × 12 cm (4.7 in) × 5 cm (1.9 in) including connectors |
| Weight | 1.55 kg (3.42 lb) receiver with internal battery and no radio |
| Temperature | |
| Operating | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage | –40 °C to +80 °C –40 °F to +176 °F) |
| Humidity | MIL-STD 810F, Method 507.4 |
| Waterproof | IP67 for submersion to depth of 1 m (3.3 ft), dustproof |
| Shock and Vibration | |
| Pole Drop | Designed to survive a 1 m (3.3 ft) pole drop onto a hard surface |
| Shock – Non-operating | To 75 g, 6 ms |
| Shock – Operating | To 40 g, 10 ms, saw-tooth |
| Vibration | Tested to Trimble ATV profile (4.5 g RMS): 10 Hz to 300 Hz: 0.04 g/Hz;2 |
| 300 Hz to 1,000 Hz; –6 dB/octave | |
| Measurements | Advanced Trimble Maxwell™ 6 Custom GPS Chip |
| High-precision multiple correlator for L1/L2 pseudo-range measurements | |
| Unfiltered, unsmoothed pseudo-range measurements data for low noise, low | |
| multipath error, low-time domain correlation, and high-dynamic response | |
| Very low noise carrier phase measurements with <1 mm precision | |
| in a 1 Hz bandwidth | |
| Signal-to-noise ratios reported in dB-Hz | |
| Proven Trimble low elevation tracking technology | |
| 220-channel L1C/A,L1/L2/L2C. Upgradable to GLONASS L1/L2C/A, L1/L2P Full | |
| Cycle Carrier | |
| Trimble EVEREST™ multipath signal rejection | |
| 4-channel SBAS (WAAS/EGNOS/MSAS) | |
| Galileo GIOVE-A and GIOVE-B8 | |
| Code Differential GPS Positioning2 | |
| Correction type | N/A |
| Correction source | N/A |
| Horizontal accuracy | N/A |
| Vertical accuracy | N/A |
| SBAS (WAAS/EGNOS/MSAS) Positioning3 | |
| Horizontal accuracy | N/A |
| Vertical accuracy | N/A |
| OmniSTAR Positioning | |
| VBS service accuracy | N/A |
| XP service accuracy | N/A |
| HP service accuracy | N/A |
| Location RTK Positioning2 | |
| Horizontal accuracy | N/A |
| Vertical accuracy | N/A |
| Precise Heading2 | |
| Heading accuracy | When combined with SPSx5x |
| 2 m antenna separation | 0.09° RMS |
| 10 m antenna separation | 0.05° RMS |
| Manufacturer | Trimble |
|---|
