Trimble S8 DR HP 1" Robotic Total Station w/ TSC2 Field Controller
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

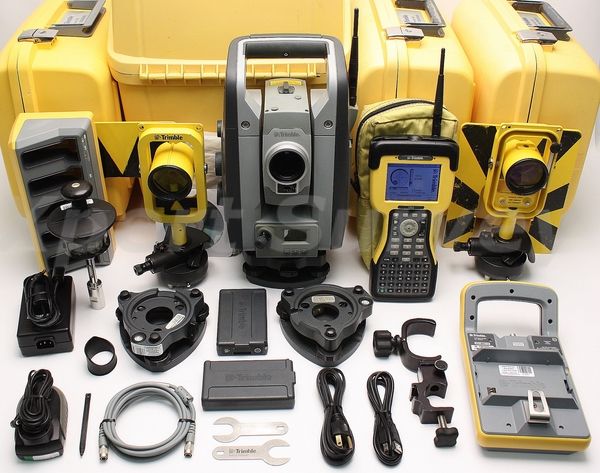

* Trimble S8 DR HP 1" Robotic Total Station [ID- X1689]
- Robotic
- Finelock Autolock
- 2.4 GHz Radio
- Calibrated By A Trimble Authorized Service Center
* Trimble TSC2 2.4 GHz Field Controller [ID- X1697]
- Survey Controller Version 12.49
- GNSS Surveying
- TS Surveying
- Advanced Geodetic Support
- WLAN
- Bluetooth
- 2.4 GHz Radio
* Trimble 59369-00 Multi-Battery Adapter [ID- X1691]
* Trimble 57550-00 Battery System Charger [ID- X1692]
* QTY. 2 Trimble 78607007 Standard Tribrach [ID- X1694 X1696]
* QTY. 2 Trimble 78609007 Traverse Prisms [ID- X1695 X1693]
* Trimble Prism [ID- X1690]
* Trimble 5198-059 Bracket
* Trimble 73838001 Power Cable
* Trimble 50013001 Rain Lens Cover
* Rain Cover For Total Station
* QTY. 2 Trimble Targets
* QTY. 2 Trimble Wrenches
* Stylus
* QTY. 3 Battery Packs
* QTY. 2 AC Adapter/Chargers
* Power Cord
* USB PC Interface Cable
* Case For TSC2
* QTY. 4 Hard Carrying Cases
Trimble S8 Total Station
THE POWER TO EXCEL
Delivering major workflow innovations for both typical surveying and specialized applications, you now have the power to redefine your performance potential.
ADVANCED SURVEYING PERFORMANCE
For typical survey tasks, choose the 1" angle accuracy and exceptional EDM range of Trimble DR Plus™. Extend your reach on the job for increased production from fewer setups.
Trimble Business Center office software provides a complete range of processing and analysis tools. Together with the Trimble S8 Total Station, you have the most comprehensive solution for general surveying available today.
Video-Assisted Control
Trimble VISION™ gives you the power to see everything the S8 Total Station sees without a trip back to the tripod. Direct your survey with live video images on the controller. Now you are free to capture measurements, to prism or reflectorless surfaces, with point-andclick efficiency.
Visual Verification
The on-board camera integrates surveyed data with the live scene image, so you can verify the work that you’ve done before leaving the job. Calibrated photo documentation provides customers with deliverables they know they can trust.
UNSURPASSED TOTAL STATION TECHNOLOGY
Trimble MagDrive™ Servo Technology provides for exceptional speed and accuracy with smooth, silent operation.
Trimble SurePoint™ Technology ensures accurate measurements by automatically correcting for unwanted movement due to wind, sinkage, and other factors.
SPECIALIZED ENGINEERING APPLICATIONS
For precision-build applications, you need a measurement solution with optimal speed, accuracy and reliability Combine the Trimble DR HP Precision EDM with your choice of angular accuracies and Trimble VISION or Long Range FineLock and you have the flexibility to tackle the most demanding projects.
Specialized modules in Trimble Access™ software such as Tunnels, Monitoring, or Mines provide dedicated workflows. Trimble 4D Control™ provides a comprehensive solution for the management of monitoring projects—both real time and post-processed—to rapidly detect critical structural movements.
Trimble finelock™ Technology
Trimble finelock™ Technology Detect targets without interference from surrounding prisms for high precision applications in close quarters such as rail alignment, deformation monitoring, and tunneling applications. The Trimble Long-Range FineLock option extends this functionality to 2500 m with 1 cm accuracy.
TRIMBLE S8 TOTAL STATION OTHER ENGINEERING SPECIFIC FEATUERES:
- Visually mark points, at greater range, in tunnels or undergound mines with the Class 3R Laser Pointer.
- Automatic Servo focus sets the optical focus for quick manual aiming when monitoring points in DR mode – with Trimble Access.
- Silent, frictionless movement ensures unobtrusive operation in urban or residential settings.
Trimble S8 Total Station Specifications:
| PERFORMANCE (DR HP) | |
| Angle measurement accuracy (standard deviation based on DIN 18723) | 0.5" (0.15 mgon) or 1" (0.3 mgon) |
| Distance measurement | |
| Accuracy (RMSE) Prism mode |
Standard: 1 mm + 1 ppm (0.003 ft + 1 ppm) Standard deviation according to ISO17123-4: 0.8 mm + 1 ppm (0.0026 ft +1 ppm) Tracking: 5 mm + 2 ppm (0.016 ft + 2 ppm) |
| DR mode | Standard measurement: 3 mm + 2 ppm (0.01 ft + 2 ppm) Tracking.: 10 mm + 2 ppm (0.032 ft + 2 ppm) |
| Measuring time Prism mode |
Standard: 2.5 s Tracking: 0.4s Averaged observations: 2.5 s per measurement |
| DR mode | Standard: 3–15 s Tracking: 0.4 s |
| Range Prism mode |
1 prism: 3,000 m (9,800 ft) 1 prism Long Range mode: 5,000 m (16,400 ft) 3 prism Long Range mode: 7,000 m (23,000 ft) Shortest range: 1.5 m (4.9 ft) |
| EDM SPECIFICATIONS (DR HP) | |
| Light source | Laserdiode 660 nm; Laser class 1 in Prism mode Laser class 2 in DR mode |
| Laser pointer coaxial (standard) | Laser class 2 |
| Laser pointer non-coaxial (not available in all models) | Laser class 3R |
| Beam divergence Prism mode | Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 4 cm/100 m (0.13 ft/328 ft) |
| Beam divergence DR mode | Horizontal: 2 cm/50 m (0.066 ft/164 ft) Vertical: 2 cm/50 m (0.066 ft/164 ft) |
| Atmospheric correction | –130 ppm to 160 ppm continuously |
| GENERAL SPECIFICATIONS (DR PLUS AND DR HP) | |
| Leveling | Circular level in tribrach: 8'/2 mm (8'/0.007 ft) |
| Automatic level compensator | Type: Centered dual-axis Accuracy: 0.5" (0.15 mgon) Range: ±5.4' (±100 mgon) |
| Servo system | MagDrive servo technology, integrated servo/angle sensor; electromagnetic direct drive |
| Rotation speed | 115 degrees/s (128 gon/s) |
| Rotation time Face 1 to Face 2 | 2.6 s |
| Positioning speed180 degrees (200 gon) | 2.6 s |
| Clamps and slow motions | Servo-driven, endless fine adjustment |
| Centering | Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m to infinity (1.6 ft to infinity |
| Telescope | Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft) to infinity Illuminated crosshair: Variable (10 steps) |
| Autofocus | Standard |
| Tracklight built in | Not available in all models |
| Operating temperature | –20º C to +50º C (–4º F to +122º F) |
| Dust and water proofing | IP55 |
| Humidity | 100% condensing |
| Power supply | Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah |
| Operating time | One internal battery: Approx. 6.5 hours Three internal batteries in multi-battery adapter: Approx. 18 hours |
| Robotic holder with one internal battery. | 13.5 hours |
| Operating time with video robotic | One battery: 5.5 hours Three batteries in multi-battery adapter: 17 hours |
| Weight | |
| Instrument (Robotic) | 5.25 kg (11.57 lb) |
| Tribrach | 0.7 kg (1.54 lb) |
| Internal battery | 0.35 kg (0.77 lb) |
| Trunnion axis height | 196 mm (7.71 in) |
| Communication | USB, Serial, Bluetooth |
| Security | Dual-layer password protection |
| ROBOTIC SURVEYING | |
| Autolock and Robotic range | Passive prisms: 500–700 m (1,640–2,297 ft) Trimble MultiTrack Target: 800 m (2,625 ft) |
| Autolock pointing precision at 200 m (656 ft) (standard deviation) | |
| Passive prisms | <2 mm (0.007 ft) |
| Trimble MultiTrack™ Target | <2 mm (0.007 ft) |
| Shortest search distance | 0.2 m (.65 ft) |
| Search time (typical) | 2–10 s |
| FineLock | |
| Pointing precision at 300 m (980 ft) | (standard deviation) <1 mm (0.003 ft) Range to passive prisms (min–max): 20 m–700 m (64 ft–2,297 ft) |
| Minimum spacing between prisms | at 200 m (656 ft): 0.8 m (2.625 ft) |
| Long Range (not available in all models) | Pointing precision at 2,500 m (8,200 ft) (standard deviation): <10 mm (0.039 ft) |
| Range to passive prisms (min.–max.) | 20 m–2,500 m (64 ft–8,200 ft) |
| Minimum spacing between prisms at 2,500 m (8,200 ft) |
<10.0 m (32.808 ft) |
| GPS Search/geolock with Trimble Multitrack Target | |
| GPS Search/GeoLock | 360 degrees (400 gon) |
| Solution acquisition time | 15–30 s |
| Target re-acquisition time | <3 s |
| Range | Autolock and Robotic range limits |
Trimble TSC2 Controller Data Collector
COMBINE FIELD AND OFFICE IN ONE POWERFUL HANDHELD COMPUTER
The Trimble TSC2 Controller is an advanced handheld computer especially designed for Trimble optical and GPS surveying systems.
With the Microsoft® Windows Mobile™ 5.0 software operating system, the TSC2 controller runs your choice of powerful Trimble field software. Add specialized applications to the standard Microsoft Outlook Mobile, Excel Mobile, Word Mobile, Power Point Mobile and Internet Explorer programs, and the TSC2 controller becomes a powerhouse of field and office functions on one rugged business device.
SMART, EXPANDABLE HARDWARE
Every innovative feature on the Trimble TSC2 controller is designed to make your job easier. Clearly view background maps and check work on the vibrant color graphic display for greater data control and confidence. Use the full alphanumeric keyboard, or quickly select software options using the touch screen. The unique TSC2 controller changeable cap enables the use of removable memory or third-party media, such as GPRS, GPS, camera, and product scanner functions. Extend your data logging capabilities and experience a major leap in productivity.
INDUSTRY-LEADING COMMUNICATION TECHNOLOGIES
Eliminate cable hassles and expedite setup with integrated Bluetooth® wireless technology. When the TSC2 controller is used with a Trimble R8 or 5800 GPS system, the rover is 100% cable free for unsurpassed convenience and ease of use. The internal 2.4 GHz radio option is ideal for use with a robotic system such as the Trimble S6 total station.
Using the expandable media function, a GSM/GPRS modem can add full wireless communication to the Internet in the field.Transfer data in your office over a wireless 802.11 LAN—again, no cables are required. You can also use hotspots to quickly and securely share data with your office from remote locations.
FLEXIBLE COMMUNICATION OPTIONS
Choose the method of data transfer that suits your situation. Using an external modem such as a cell phone with Bluetooth, send and receive files over the Internet from the field: you don’t need to drive back to the office. In the office, internal 802.11 technology provides wireless connection to your network. The TSC2 controller also provides USB and serial RS232 communication options; data can be transferred to a PC or another TSC2 controller using a cable, Bluetooth, CompactFlash, or Secure Digital memory card media.
ONE CONTROLLER, ONE SOFTWARE, ONE INTERFACE
The TSC2 controller is central to Integrated Surveying™ from Trimble. With an application such as the Trimble Survey Controller™ software onboard, collect and manage both GPS and optical data in one Job file simply by switching the TSC2 controller between sensors. Standardize on one flexible controller for maximized investment. And your survey team only needs to know one interface. When field work is complete, simply transfer the Job file to your office using the communication method that suits your needs.
Trimble TSC2 Features:
- Advanced handheld field computer for exceptional versatility, efficiency, and freedom
- Microsoft Windows Mobile operating system 5.0 software
- Highest flexibility for optical and GPS surveying
- Wireless operations in both the field and office
TSC2 Data Collector Specifications:
| Physical | |
| Size | 266 mm × 131 mm × 48 mm (10.5 in × 5.2 in × 1.9 in); 76 mm (3.0 in) at handgrip |
| Weight | 0.95 kg (2.1 lb) including battery; 1.09 kg (2.4 lb) including battery and optional internal radio |
| Memory | 128 MB SDRAM, 512 MB internal non-volatile storage memory |
| Expandable Memory | CompactFlash (CF) card Secure Digital (SD) card |
| Processor | 520 MHz Intel® PXA 270 XScale CPU |
| Wireless | Integrated Wireless LAN 802.11b |
| Power | Li-Ion rechargeable pack, 6600 mAh, battery life of 30 hours under normal operating conditions Fast charge to 80% in 2 hours; full charge in 4.5 hours. Battery charge status LED indicator |
| Software | The Trimble TSC2 controller runs the Trimble Survey Controller field software. In addition, a number of regional solutions are available. For more information on the field software that’s best for you, contact your local Trimble authorized distribution partner. |
| Environmental | |
| Temperature Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidity | 100% condensing, MIL-STD-810F, Method 507.4 |
| Sand & Dust | Protection against wind-driven according to MIL-STD-810F, and IP6X |
| Water | Waterproof IPX7 |
| Drops | 26 drops from 1.22 m (4.0 ft) onto hard surface |
| Vibration | MIL-STD-810F, Method 514.5, Procedure I, Fig. 17 & 18 |
| Altitude | MIL-STD-810F, Method 500.4, Procedures I, II & III, 4572 m (15,000 ft) at +23 °C (+73 °F) |
| Interface | |
| Display | Color, illuminated TFT, daylight-readable touch screen displayed at 320 × 240 pixels |
| Keyboard | 53 key alphanumeric keypad, 8-position spider key |
| Audio | Integrated speaker and microphone for audio system events, warnings and notifications. |
| Operating system | Microsoft Windows Mobile 5.0 |
| Input/Output | |
| Ports | RS232 9-pin serial port USB Client USB Host DC Power Port |
| Expansion | 1 × Type I CompactFlash (CF) slot 1 × Type II CompactFlash (CF) slot 1 × Secure Data (SD) memory card slot |
| Manufacturer | Trimble |
|---|
