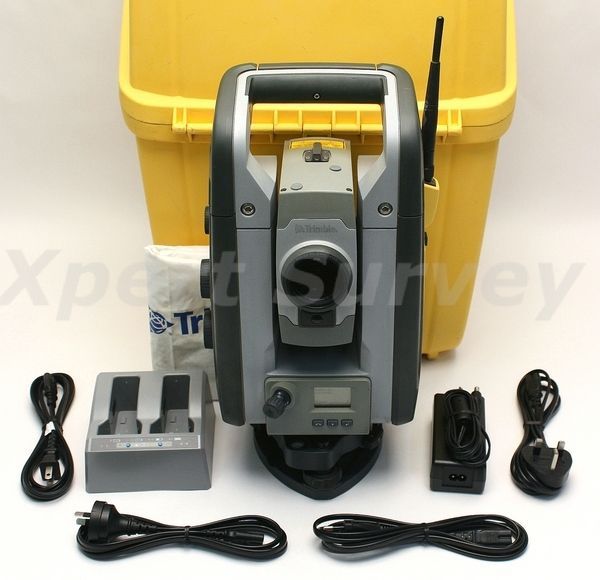

Trimble S8 DR HP 1" Robotic Total Station
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Trimble S8 DR HP 1" Robotic Total Station [ID- X1689-L/T*]
- Robotic
- Finelock Autolock
- 2.4 GHz Radio
- Calibrated By A Trimble Authorized Service Center
* Trimble Battery Charger
* AC Adapter
* Power Cord
* Rain Cover
* Hard Carrying Case
Trimble S8 Total Station
THE POWER TO EXCEL
Delivering major workflow innovations for both typical surveying and specialized applications, you now have the power to redefine your performance potential.
ADVANCED SURVEYING PERFORMANCE
For typical survey tasks, choose the 1" angle accuracy and exceptional EDM range of Trimble DR Plus™. Extend your reach on the job for increased production from fewer setups.
Trimble Business Center office software provides a complete range of processing and analysis tools. Together with the Trimble S8 Total Station, you have the most comprehensive solution for general surveying available today.
Video-Assisted Control
Trimble VISION™ gives you the power to see everything the S8 Total Station sees without a trip back to the tripod. Direct your survey with live video images on the controller. Now you are free to capture measurements, to prism or reflectorless surfaces, with point-andclick efficiency.
Visual Verification
The on-board camera integrates surveyed data with the live scene image, so you can verify the work that you’ve done before leaving the job. Calibrated photo documentation provides customers with deliverables they know they can trust.
UNSURPASSED TOTAL STATION TECHNOLOGY
Trimble MagDrive™ Servo Technology provides for exceptional speed and accuracy with smooth, silent operation.
Trimble SurePoint™ Technology ensures accurate measurements by automatically correcting for unwanted movement due to wind, sinkage, and other factors.
SPECIALIZED ENGINEERING APPLICATIONS
For precision-build applications, you need a measurement solution with optimal speed, accuracy and reliability Combine the Trimble DR HP Precision EDM with your choice of angular accuracies and Trimble VISION or Long Range FineLock and you have the flexibility to tackle the most demanding projects.
Specialized modules in Trimble Access™ software such as Tunnels, Monitoring, or Mines provide dedicated workflows. Trimble 4D Control™ provides a comprehensive solution for the management of monitoring projects—both real time and post-processed—to rapidly detect critical structural movements.
Trimble finelock™ Technology
Trimble finelock™ Technology Detect targets without interference from surrounding prisms for high precision applications in close quarters such as rail alignment, deformation monitoring, and tunneling applications. The Trimble Long-Range FineLock option extends this functionality to 2500 m with 1 cm accuracy.
TRIMBLE S8 TOTAL STATION OTHER ENGINEERING SPECIFIC FEATUERES:
- Visually mark points, at greater range, in tunnels or undergound mines with the Class 3R Laser Pointer.
- Automatic Servo focus sets the optical focus for quick manual aiming when monitoring points in DR mode – with Trimble Access.
- Silent, frictionless movement ensures unobtrusive operation in urban or residential settings.
Trimble S8 Total Station Specifications:
| PERFORMANCE (DR HP) | |
| Angle measurement accuracy (standard deviation based on DIN 18723) | 0.5" (0.15 mgon) or 1" (0.3 mgon) |
| Distance measurement | |
| Accuracy (RMSE) Prism mode |
Standard: 1 mm + 1 ppm (0.003 ft + 1 ppm) Standard deviation according to ISO17123-4: 0.8 mm + 1 ppm (0.0026 ft +1 ppm) Tracking: 5 mm + 2 ppm (0.016 ft + 2 ppm) |
| DR mode | Standard measurement: 3 mm + 2 ppm (0.01 ft + 2 ppm) Tracking.: 10 mm + 2 ppm (0.032 ft + 2 ppm) |
| Measuring time Prism mode |
Standard: 2.5 s Tracking: 0.4s Averaged observations: 2.5 s per measurement |
| DR mode | Standard: 3–15 s Tracking: 0.4 s |
| Range Prism mode |
1 prism: 3,000 m (9,800 ft) 1 prism Long Range mode: 5,000 m (16,400 ft) 3 prism Long Range mode: 7,000 m (23,000 ft) Shortest range: 1.5 m (4.9 ft) |
| EDM SPECIFICATIONS (DR HP) | |
| Light source | Laserdiode 660 nm; Laser class 1 in Prism mode Laser class 2 in DR mode |
| Laser pointer coaxial (standard) | Laser class 2 |
| Laser pointer non-coaxial (not available in all models) | Laser class 3R |
| Beam divergence Prism mode | Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 4 cm/100 m (0.13 ft/328 ft) |
| Beam divergence DR mode | Horizontal: 2 cm/50 m (0.066 ft/164 ft) Vertical: 2 cm/50 m (0.066 ft/164 ft) |
| Atmospheric correction | –130 ppm to 160 ppm continuously |
| GENERAL SPECIFICATIONS (DR PLUS AND DR HP) | |
| Leveling | Circular level in tribrach: 8'/2 mm (8'/0.007 ft) |
| Automatic level compensator | Type: Centered dual-axis Accuracy: 0.5" (0.15 mgon) Range: ±5.4' (±100 mgon) |
| Servo system | MagDrive servo technology, integrated servo/angle sensor; electromagnetic direct drive |
| Rotation speed | 115 degrees/s (128 gon/s) |
| Rotation time Face 1 to Face 2 | 2.6 s |
| Positioning speed180 degrees (200 gon) | 2.6 s |
| Clamps and slow motions | Servo-driven, endless fine adjustment |
| Centering | Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m to infinity (1.6 ft to infinity |
| Telescope | Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft) to infinity Illuminated crosshair: Variable (10 steps) |
| Autofocus | Standard |
| Tracklight built in | Not available in all models |
| Operating temperature | –20º C to +50º C (–4º F to +122º F) |
| Dust and water proofing | IP55 |
| Humidity | 100% condensing |
| Power supply | Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah |
| Operating time | One internal battery: Approx. 6.5 hours Three internal batteries in multi-battery adapter: Approx. 18 hours |
| Robotic holder with one internal battery. | 13.5 hours |
| Operating time with video robotic | One battery: 5.5 hours Three batteries in multi-battery adapter: 17 hours |
| Weight | |
| Instrument (Robotic) | 5.25 kg (11.57 lb) |
| Tribrach | 0.7 kg (1.54 lb) |
| Internal battery | 0.35 kg (0.77 lb) |
| Trunnion axis height | 196 mm (7.71 in) |
| Communication | USB, Serial, Bluetooth |
| Security | Dual-layer password protection |
| ROBOTIC SURVEYING | |
| Autolock and Robotic range | Passive prisms: 500–700 m (1,640–2,297 ft) Trimble MultiTrack Target: 800 m (2,625 ft) |
| Autolock pointing precision at 200 m (656 ft) (standard deviation) | |
| Passive prisms | <2 mm (0.007 ft) |
| Trimble MultiTrack™ Target | <2 mm (0.007 ft) |
| Shortest search distance | 0.2 m (.65 ft) |
| Search time (typical) | 2–10 s |
| FineLock | |
| Pointing precision at 300 m (980 ft) | (standard deviation) <1 mm (0.003 ft) Range to passive prisms (min–max): 20 m–700 m (64 ft–2,297 ft) |
| Minimum spacing between prisms | at 200 m (656 ft): 0.8 m (2.625 ft) |
| Long Range (not available in all models) | Pointing precision at 2,500 m (8,200 ft) (standard deviation): <10 mm (0.039 ft) |
| Range to passive prisms (min.–max.) | 20 m–2,500 m (64 ft–8,200 ft) |
| Minimum spacing between prisms at 2,500 m (8,200 ft) |
<10.0 m (32.808 ft) |
| GPS Search/geolock with Trimble Multitrack Target | |
| GPS Search/GeoLock | 360 degrees (400 gon) |
| Solution acquisition time | 15–30 s |
| Target re-acquisition time | <3 s |
| Range | Autolock and Robotic range limits |
| Manufacturer | Trimble |
|---|
