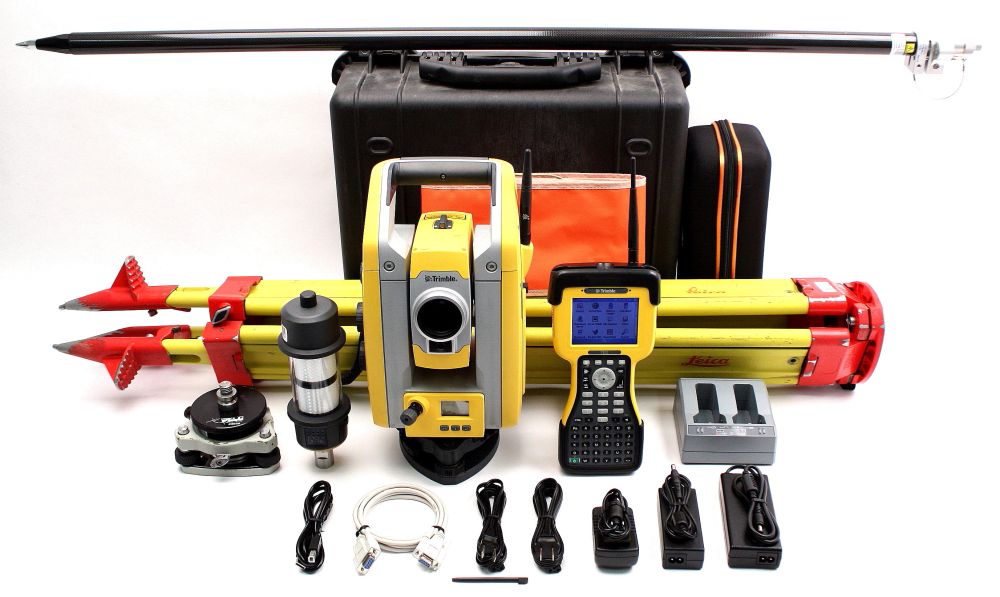

Trimble S5 3" DR Plus Robotic Total Station w/ TSC2 Field Controller

* Trimble S5 3" DR Plus Robotic Total Station [ID- X1910-L/T*]
         - 2.4 GHz Radio
         - This Unit Was Calibrated By A Trimble Authorized Service Center
* Trimble TSC2 2.4 GHz Field Controller w/ Options... [ID- X1740-L/T*]
          - SCS900 Software Version 2.92
          - WLAN
          - Bluetooth
          - 2.4 GHz Radio
* QTY. 2 Antennas
* Trimble 53018010 Battery Charger
* Trimble ActiveTrac 360 Prsim
* Leica Tribrach
* Leica Tripod
* Prim Pole w/ Case
* Li-Ion Battery Charger w/ AC Adapter
* Stylus
* Battery Pack
* QTY. 2 AC Adapter/Chargers
* QTY. 2 Power Cords
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On Cd-ROM
* Case For TSC2
* Hard Carrying Case (G)

Trimble S5 Total Station

TRUSTED PERFORMANCE
All you need to perform efficient surveying campaigns is available in the Trimble® S5 Robotic Total Station solution: An accurate and reliable instrument, DR Plus EDM, MagDrive™ technology, the popular Trimble TSC3 controller with Trimble Access™ field software and quick data processing with Trimble Business Center office software. Trimble has been manufacturing the industry’s leading robotic total stations for over a decade. You can depend on the Trimble S5 Total Station to keep you productive in the field no matter what you encounter.

Trimble Technology
The Trimble S5 Total Station is built upon proven Trimble technologies like SurePoint™, MagDrive and our DR Plus EDM, helping you work more efficiently while maintaining the highest accuracy possible. Smooth and silent, Trimble MagDrive electro-magnetic technology means fewer moving parts, which reduces servicing requirements. Trimble SurePoint ensures accurate pointing and measurements by actively correcting for unwanted movements like wind, handling, and sinkage. The Trimble DR Plus EDM allows you to measure with fewer instrument set-ups and enhance your direct reflex performance.

Manage Your Assets 24/7
Know where your total stations are 24 hours a day with Trimble Locate2Protect technology. See where your equipment is at any given time and get alerts if your instrument leaves a jobsite or experiences unexpected equipment shock or abuse.

Trimble InSphere™ Equipment Manager system lets you view usage and keep up-todate on firmware, software and maintenance requirements. With Trimble Locate2Protect and InSphere Equipment Manager, you can rest assured knowing your equipment is up-to-date and where it should be.

Robotic and Autolock
The Trimble S5 Total Stations are available in robotic or Autolock®-only versions. The Trimble S5 robotic and Autolock versions have an optional TCU data collector with Trimble Access field software for convenient, simple operation in any environment.

Integrated Surveying
The Trimble S5 Total Station provides the foundation for Trimble’s Integrated Surveying™ solutions. With Integrated Surveying, you can seamlessly integrate complementary technologies on the job site, such as Trimble GNSS receivers and optical measurements.

Powerful Field and Office Software
Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs.

Back in the office, trust Trimble Business Center software to help you check, process and adjust your optical, leveling, and GNSS data in one software solution. No matter what Trimble instruments you use in the field, you can trust that Trimble Business Center office software will help you generate industry-leading deliverables.

Key Features:

• Everything you need to perform survey campaigns
• Measure further and faster with the Trimble DR Plus EDM
• Locate2Protect real-time equipment management
• Seamless integration with the Trimble V10 Imagine Rover and GNSS receivers
• Intuitive Trimble Access Field Software
• Trimble Business Center Office Software for quick data processing

Specifications:

PERFORMANCE
Angle measurement
Sensor type	Absolute encoder with diametrical reading
Accuracy (Standard deviation based on DIN 18723)	3" (1.0 mgon)
Angle Display (least count)
Type	Centered dual-axis
Accuracy	0.5" (0.15 mgon)
Range	± 5.4' (±100 mgon)
Distance measurement
Accuracy (ISO) Prism mode	Standard:  1 mm + 2 ppm (0.003 ft + 2 ppm)
Accuracy (RMSE)	Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm)
DR mode	Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm)
Measuring time Prism Mode	Standard: 1.2 sec Taracking: 0.4 sec
DR mode	Standard: 1–5 sec Tracking: 0.4 sec
Measurement Range
Prism mode (under standard clear conditions)	1 prism: 2500 m (8202 ft) 1 prism Long Range mode: 5500 m (18,044 ft) (max. range) Shortest range: 0.2 m (0.65 ft)
EDM SPECIFICATIONS
Light source	Pulsed laserdiode 905 nm, Laser class 1
Beam divergence	Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 8 cm/100 m (0.26 ft/328 ft)
SYSTEM SPECIFICATIONS
Leveling	Circular level in tribrach: 8'/2 mm (8'/0.007 ft) Electronic 2-axis level in the LC-display with a resolution of: 0.3” (0.1 mgon)
Servo system	MagDrive servo technology, integrated servo/angle sensor electromagnetic direct drive Rotation speed: 115 degrees/sec (128 gon/sec) Rotation time Face 1 to Face 2: 2.6 sec Positioning time 180 degrees (200 gon): 2.6 sec Clamps and slow motions: Servo-driven, endless fine adjustment
Centering	Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m–infinity (1.6 ft–infinity)
Telescope	Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft)–infinity Illuminated crosshair: Variable (10 steps)
Power supply	Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah
Operating time:	One internal battery: Approx. 6.5 hours Three internal batteries in multi-battery adapter: Approx. 20 hours Robotic holder with one internal battery: 13.5 hours
Weight and Dimensions	Instrument (Autolock): 5.4 kg (11.35 lb) Instrument (Robotic): 5.5 kg (11.57 lb) Trimble CU controller: 0.4 kg (0.88 lb) Tribrach: 0.7 kg (1.54 lb) Internal battery: 0.35 kg (0.77 lb) Trunnion axis height: 196 mm (7.71 in)
Other
Communication	USB, Serial, Bluetooth
Operating temperature	–20 ºC to +50 ºC (–4 ºF to +122 ºF)
Tracklight built in	Available in all models
Dust and water proofing	IP65
Humidity	100% condensing
Laser pointer coaxial (standard)	Laser Class 2
Security	Dual-layer password protection, Locate2Protect
ROBOTIC SURVEYING
Autolock and Robotic Range	Passive prisms: 500 m–700 m (1,640–2,297 ft) Trimble MultiTrack™ Target: 800 m (2,625 ft) Trimble Active Track 360 Target: 500 m (1,640 ft)
Autolock pointing precision at 200 m (656 ft) (Standard deviation)	Passive prisms: <2 mm (0.007 ft) Trimble MultiTrack Target: <2 mm (0.007 ft) Trimble Active Track 360 Target: <2 mm (0.007 ft)
Shortest search distance	0.2 m (0.65 ft)
Type of radio internal/external.	2.4 GHz frequency-hopping, spread-sprectrum radios
Search time (typical)	2- 10 Seconds
GPS SEARCH/GEOLOCK
GPS Search/GeoLock	360 degrees (400 gon) or defined horizontal and vertical search window
Solution acquisition time	15–30 sec
Target re-acquisition time	<3 sec
Range	Autolock & Robotic range limits

Trimble TSC2 Controller Data Collector

COMBINE FIELD AND OFFICE IN ONE POWERFUL HANDHELD COMPUTER
The Trimble® TSC2® Controller is an advanced handheld computer especially designed for Trimble optical and GPS surveying systems.
With the Microsoft® Windows Mobile™ 5.0 software operating system, the TSC2 controller runs your choice of powerful Trimble field software. Add specialized applications to the standard Microsoft Outlook Mobile, Excel Mobile, Word Mobile, Power Point Mobile and Internet Explorer programs, and the TSC2 controller becomes a powerhouse of field and office functions on one rugged business device.

SMART, EXPANDABLE HARDWARE
Every innovative feature on the TSC2 controller is designed to make your job easier. Clearly view background maps and check work on the vibrant color graphic display for greater data control and confidence. Use the full alphanumeric keyboard, or quickly select software options using the touch screen.The unique TSC2 controller changeable cap enables the use of removable memory or third-party media, such as GPRS, GPS, camera, and product scanner functions. Extend your data logging capabilities and experience a major leap in productivity.

INDUSTRY-LEADING COMMUNICATION TECHNOLOGIES
Eliminate cable hassles and expedite setup with integrated Bluetooth® wireless technology. When the TSC2 controller is used with a Trimble R8 or 5800 GPS system, the rover is 100% cable free for unsurpassed convenience and ease of use. The internal 2.4 GHz radio option is ideal for use with a robotic system such as the Trimble S6 total station.
Using the expandable media function, a GSM/GPRS modem can add full wireless communication to the Internet in the field.Transfer data in your office over a wireless 802.11 LAN—again, no cables are required. You can also use hotspots to quickly and securely share data with your office from remote locations.

FLEXIBLE COMMUNICATION OPTIONS
Choose the method of data transfer that suits your situation. Using an external modem such as a cell phone with Bluetooth, send and receive files over the Internet from the field: you don’t need to drive back to the office. In the office, internal 802.11 technology provides wireless connection to your network. The TSC2 controller also provides USB and serial RS232 communication options; data can be transferred to a PC or another TSC2 controller using a cable, Bluetooth, CompactFlash, or Secure Digital memory card media.

ONE CONTROLLER, ONE SOFTWARE, ONE INTERFACE
The TSC2 controller is central to Integrated Surveying™ from Trimble. With an application such as the Trimble Survey Controller™ software onboard, collect and manage both GPS and optical data in one Job file simply by switching the TSC2 controller between sensors. Standardize on one flexible controller for maximized investment. And your survey team only needs to know one interface. When field work is complete, simply transfer the Job file to your office using the communication method that suits your needs.


Features:

• Advanced handheld field computer for exceptional versatility, efficiency, and freedom

• Microsoft Windows Mobile operating system 5.0 software
• Highest flexibility for optical and GPS surveying
• Wireless operations in both the field and office


Specifications:

Physical
Size	266 mm × 131 mm × 48 mm (10.5 in × 5.2 in × 1.9 in);  76 mm (3.0 in) at handgrip
Weight	0.95 kg (2.1 lb) including battery;  1.09 kg (2.4 lb) including battery and  optional internal radio
Memory	128 MB SDRAM, 512 MB internal non-volatile storage memory
Expandable Memory	CompactFlash (CF) card  Secure Digital (SD) card
Processor	520 MHz Intel® PXA 270 XScale CPU
Wireless	Integrated Wireless LAN 802.11b
Power	Li-Ion rechargeable pack, 6600 mAh, battery life  of 30 hours under normal operating conditions  Fast charge to 80% in 2 hours; full charge in 4.5 hours.  Battery charge status LED indicator
Software	The Trimble TSC2 controller runs the  Trimble Survey Controller field software. In addition, a number of  regional solutions are available. For more information on the field  software that’s best for you, contact your local  Trimble authorized distribution partner.
Environmental
Temperature Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Humidity	100% condensing, MIL-STD-810F, Method 507.4
Sand & Dust	Protection against wind-driven according  to MIL-STD-810F, and IP6X
Water	Waterproof IPX7
Drops	26 drops from 1.22 m (4.0 ft) onto hard surface
Vibration	MIL-STD-810F, Method 514.5, Procedure I, Fig. 17 & 18
Altitude	MIL-STD-810F, Method 500.4, Procedures I, II & III,  4572 m (15,000 ft) at +23 °C (+73 °F)
Interface
Display	Color, illuminated TFT, daylight-readable touch screen  displayed at 320 × 240 pixels
Keyboard	53 key alphanumeric keypad, 8-position spider key
Audio	Integrated speaker and microphone for audio system events, warnings and notifications.
Operating system	Microsoft Windows Mobile 5.0
Input/Output
Ports	RS232 9-pin serial port  USB Client  USB Host  DC Power Port
Expansion	1 × Type I CompactFlash (CF) slot  1 × Type II CompactFlash (CF) slot  1 × Secure Data (SD) memory card slot
