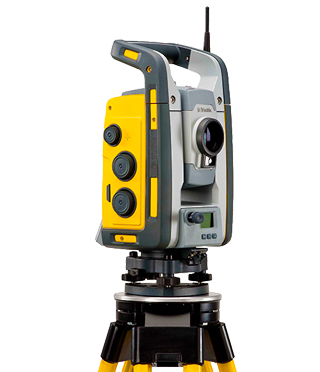

Trimble RTS773 Robotic Total Station
The RTS773 includes Trimble VISION, an integrated camera in the robotic total station that provides a “through the telescope view” remotely via the Trimble Tablet and Trimble Field Link.
Condition: Used
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Trimble RTS773 Robotic Total Station
Trimble Building Construction is pleased to announce the release of the Trimble RTS773 Robotic Total Station. The RTS773 includes Trimble VISION, an integrated camera in the robotic total station that provides a “through the telescope view” remotely via the Trimble Tablet and Trimble Field Link. This robotic total station is designed for general and specialty contractors that require quality, accuracy and optimum field performance. New Features
RTS773 Robotic Total Station with Trimble VISION
The new RTS773 robotic total station includes Trimble VISION and is the only Building Construction instrument to provide this technology. Trimble VISION replaces the tracklight on the RTS unit with an integrated digital camera that can be operated remotely via the Trimble Tablet. Through the tablet interface, users have the ability to view and document the actual jobsite condition from the perspective of the total station when performing layout, collecting data or generating field reports.
Trimble RTS773 Specifications:
| Total Station Type | Robotic |
| One Person Layout | Yes |
| Robotic Communication Link | 2.4 GHz radio |
| Robotic radio communication range | 500 - 700 m (1,640 - 2,297 ft) |
| Measuring Range (Single Prism) | 2,500 m (8,202 ft) |
| Distance Measurement Accuracy (Prism Mode) | ±2 mm + 2 ppm (0.01 ft + 2 ppm) |
| Reflectorless DR Measuring | Yes- 120m |
| Angle Accuracy | Horizontal: 3” (1.0 mgon) Vertical: 2” (0.6 mgon) |
| Compensation | Dual-Axis |
| Display | Trimble Field Link |
| Data Storage | Via Trimble Field Link |
| Battery Life | Approx. 6 hours |
| Manufacturer | Trimble |
|---|
