Trimble Ranger Data Collector Field Controller

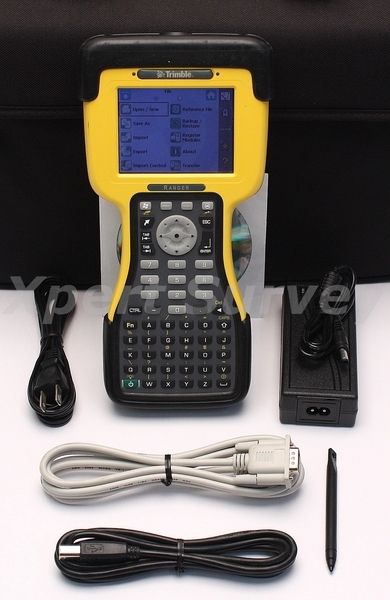

* Trimble Ranger Data Collector w/ Options... [ID- X3196-L/T*]
         - Survey Pro Version 6.1.1.19
         - Standard
         - Pro
         - Robotics
         - GNSS
         - Leveling
* Stylus
* AC Adapter/Charger
* Power Cord
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On CD-ROM
* Carrying Case (G)

Trimble Ranger Data Colllector
Rugged, expandable handheld for the mobile worker

The rugged and reliable Trimble® Ranger™ handheld is ideal for your mobile workforce. With built-in wireless connectivity that gives you access to enterprise data on-the-go, you’ll have the information you need to do the job right the first time. And the productivity you will gain with a full alphanumeric keypad will save your company time and money.

Connected and expandable
The Trimble Ranger handheld covers all bases with a range of wireless options. Built-in Bluetooth® allows cable-free connection to other Bluetooth devices, including Trimble’s GPS Pathfinder® Pro series receivers for on-the-spot positioning.

With integrated wireless LAN capability, the Trimble Ranger handheld can connect seamlessly to a local network for easy and convenient data transfer.

And if that doesn’t give you enough options, two CompactFlash (CF) slots and a Secure Digital Input Output (SDIO) slot let you add supported GSM, GPRS, or CDMA cards, for the ultimate in back-office connectivity. The USB host port can be used for a range of applications, including copying data to and from a USB flash memory drive.

Software to meet all your business needs
Because it runs the industry-standard Microsoft® Windows Mobile™ version 5.0 software, your choice of field applications is virtually unlimited. And with the familiar range of Microsoft applications (such as Word Mobile and Excel Mobile) provided as standard, you have easy access to information and documents every step of the way.

It’s no problem to take digital copies of plans, maps and schematics into the field—they’ll be crisp and crystal-clear on the advanced outdoor color screen. The Trimble Ranger handheld gives you plenty of on-board memory for your data, with the option to add more via the CF and SDIO slots.

Trimble tools to get you there
Trimble even offers a range of tools to get you to the job site faster. The Trimble Navigator Sample Application software1 connects to the Microsoft MapPoint® web service to give you point-of-interest information and driving directions exactly when you need them. In addition, you can select a free copy of Microsoft Streets & Trips2 2006 software with your Trimble Ranger handheld, providing easy navigation and route planning with comprehensive maps and travel information.

Rugged design for all-weather operation
Much sturdier than a laptop or PDA, the Trimble Ranger handheld’s sealed casing is dust, shock, and water-resistant, so you can keep working no matter what the weather throws at you. A powerful, long-life battery ensures all day field use. And because the Trimble Ranger runs Windows Mobile 5.0 software, all your data and applications reside in persistent storage, and are secure, even in the event of a power loss.

Satisfied customers
With a range of communication options for all situations, the Trimble Ranger handheld is quite simply the best-connected, rugged handheld computer available. With ready access to information, you’ll be more responsive on site—you’ll need fewer return trips, saving time and money—and you’ll improve customer satisfaction.


Featuers:

• Microsoft Windows Mobile version 5.0 software maximizes your choice of field applications
• Built-in Bluetooth and wireless LAN for cable-free connectivity
• Full alphanumeric keypad for efficient data entry
• Ultra-rugged design enables you to keep working in all conditions
• Expandable and versatile, with two CF slots and one SDIO slot

Specifications:

STANDARD FEATURES
System	• Microsoft Windows Mobile version 5.0 software • 516 MHz Intel XScale processor • 512 MB non-volatile Flash data storage • Integrated Bluetooth for connectivity to other devices • Integrated 802.11g wireless LAN for local network connectivity • One USB host port for connection to supported USB peripherals, including flash memory devices • Two CompactFlash (CF) slots for memory expansion and the addition of accessories • One Secure Digital Input Output (SDIO) slot for memory expansion and the addition of accessories • Full alphanumeric keypad for fast and efficient data entry • Outdoor color display • Rugged and waterproof design • 30 hour battery under normal operating conditions
Software	• Microsoft ActiveSync®, Calculator, File Explorer, Internet Explorer, Pictures, Excel Mobile, Outlook® Mobile (Inbox, Calendar, Contacts, Notes, Tasks), Word Mobile, Windows® Media Player • Bluetooth File Transfer • Transcriber (handwriting recognition) • Microsoft Streets & Trips/AutoRoute 2006 software • Trimble Navigator Sample Application software
Accessories	• International AC battery charger (100–240 V) • 10 screen protectors • 2 stylus pens • Getting Started Guide • Hand strap • USB data cable • Nylon carry case • Memory card pull tabs
OPTIONAL FEATURES
Software	• Trimble GPScorrectTM extension for ESRI ArcPad software • TerraSyncTM software • GPS Pathfinder Tools Software Development Kit (SDK) • GPS Pathfinder Office software • Trimble GPS AnalystTM extension for ESRI ArcGIS software
TECHNICAL SPECIFICATIONS
Physical
Size.	26.6 cm x 13.1 cm x 4.8 cm (10.5 in x 5.2 in x 1.9 in); 7.6 cm (3.0 in) at handgrip
Weight	0.95 kg (2.1 lb) with battery
Processor	516 MHz Intel PXA270 XScale
Memory	128 MB high-speed SD-RAM, ~20 MB reserved 512 MB onboard non-volatile NAND Flash, ~26 MB reserved
Battery	Internal 6600 mAh lithium-ion, rechargeable in unit
Environmental
Operating temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Humidity	MIL-STD-810F, Method 507.4, Procedure III
Sand and dust	P67, MIL-STD-810F, Method 510.4, Procedures I and II
Drop	1.22 m (4 ft), MIL-STD-810F, Method 516.5, Procedure IV
Vibration	Vibration resistant, MIL-STD-810F, Method 514.5, Procedure I
Altitude	15,000 ft at 23 °C (73 °F), MIL-STD-810F Method 500.4, Procedures I, II & III
Input/output
Communications	Bluetooth and Wireless LAN for wireless connectivity DE9 (M) RS-232 serial port, USB slave port, USB host port
Bluetooth Profiles	Client and host support. . . . . . . . Serial Port, File Transfer (using OBEX) Client support only. . . . . . . . .Dial-Up Networking (Data Terminal role) Host support only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Object Push
Wireless LAN	Integrated 802.11g
Expansion	1 × Type I and 1 × Type II CF slots 1 x SDIO slot CF-CapTM seal protects from rain, wind, and dust
Display	320 × 240 pixel (¼ VGA) color TFT with LED back light
Audio	Microphone and half duplex speaker
Interface	TFT touch screen 53-key physical keypad Separate navigation, alpha and numeric keypads Eight-position spider key Soft Input Panel (SIP) virtual keypad and Transcriber software Audio system events, warnings, and notifications
