Trimble R8 GPS Antenna Receiver 430/450Mhz

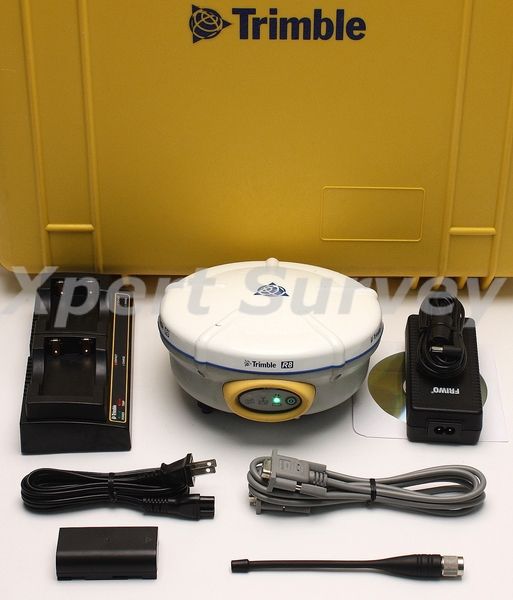

* Trimble R8 GPS Antenna Receiver w/ Options...[ID- X1258]
         - CMR Inputs
         - CMR Outputs
         - RTCM Inputs
         - RTCM Outputs
         - Data Collector
         - Binary Outputs
         - Data Logging
         - Bluetooth
         - L2CS
         - UHF Transmit
         - Cellular
         - 430-450 MHz Radio Module P/N: 57880-64
         - Unit Has Been Serviced By A Trimble Authorized Service Center
* Trimble P/N: 61116-00 Battery Charger w/ AC Adapter
* Antenna
* QTY. 2 Battery Packs
* Power Cord
* RS232 PC Interface Cable
* Hard Carrying Case

 Trimble R8 GPS Antenna Receiver

THE FUTURE OF GPS SURVEYING TODAY
The Trimble® R8 GPS system combines industry-leading GPS receiver technology with numerous innovative features designed to improve performance and productivity in the field.
Trimble R8 is a 24-channel, dual-frequency GPS receiver, GPS antenna, and data-link radio combined in one compact unit weighing just 1.3 kg (2.9 lb).

AN ADVANCED, HIGH-QUALITY GPS RECEIVER
Trimble R8 is designed to deliver high-quality tracking and performance. Using less than 2.5 W of power, advanced Trimble R-Track technology ensures optimal tracking even in hostile GPS environments. And with the introduction of new L2C signals, which are part of GPS modernization, Trimble R8 will use these signals to provide even more robust tracking. The patented four-point antenna feed of the system’s built-in dual-frequency receiver provides sub-millimeter phase-center stability for maximum precision. The system includes built-in WAAS and EGNOS capability, providing real-time differential positioning without a base station.



CABLE-FREE CONVENIENCE AND SUPERIOR PERFORMANCE AS A ROVER
The Trimble R8 GPS system’s performance as a rover is unsurpassed in the surveying industry. On the rover pole, Trimble R8 with a Trimble controller weighs just 3.6 kg (7.9 lb). Experience less fatigue thanks to the rover’s ergonomic design and light weight. Bluetooth® wireless communication between the receiver and controller makes the rover 100% cable free for your convenience. With Trimble R8 you can choose the communication option that best suits your needs. Use the 450 MHz internal radio option for receiving corrections from a local base station. Alternatively, choose a built-in GSM module for mobile phone communication. A Trimble R8 rover will work as long and as hard as you do. Extremely low power consumption lets you run the Trimble R8 rover for longer without changing batteries. A large internal memory of 6 MB lets you conveniently log static or kinematic data for postprocessing. Trimble R8 is also rugged enough for any job. It will withstand a pole drop of up to 2 m (6 ft) onto a hard surface, and is even submersible to 1 m (3 ft).


Features:

• Advanced wireless technologies for flexibility and cable-free convenience
• Trimble R-Track technology for GPS modernization
• Base and rover communication options to suit any application
• Extremely lightweight and rugged


Specifications:

Code differential GPS positioning
Horizontal	±0.25 m + 1 ppm RMS
Vertical	±0.50 m + 1 ppm RMS
WAAS differential positioning accuracy	Typically <5 m 3DRMS
Static and FastStatic GPS surveying
Horizontal	±5 mm + 0.5 ppm RMS
Vertical	±20 mm + 1 ppm RMS
Initialization time	Single/Multi-base minimum 10 sec + 0.5 times baseline length in km, up to 30 km
Initialization reliability	Typically >99.9%
HARDWARE
Dimensions	19 cm (7.5 in) × 10 cm (3.9 in), including connectors
Weight	1.31 kg (2.89 lb) with internal battery, internal radio, standard UHF antenna. 3.67 kg (8.09 lb) entire RTK rover including batteries, range pole, ACU controller and bracket
Temperature
Operating	–40 °C to +65 °C (–40 °F to +149 °F)
Storage	–40 °C to +75 °C (–40 °F to +167 °F)
Humidity	100%, condensing
Waterproof	IPX7 for submersion to depth of 1 m (3.28 ft)
Shock and vibration	Tested and meets the following environmental standards:
Shock	Non-operating: Designed to survive a 2 m (6.6 ft) pole drop onto concrete. Operating: to 40 G, 10 msec, sawtooth
Vibration	MIL-STD-810F, FIG.514.5C-1
