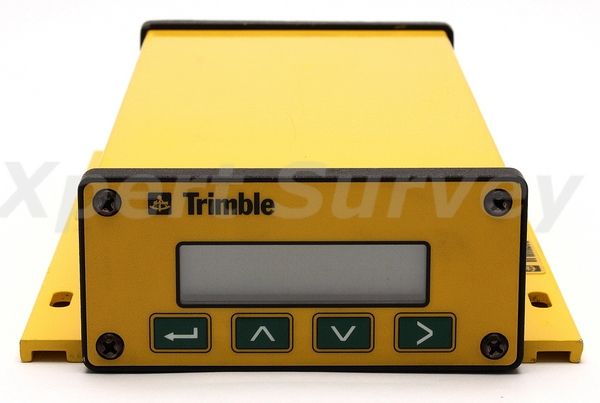

Trimble MS750 Dual Frequency GPS RTK Base Station Receiver

* Trimble MS750 Dual Frequency RTK Base Station Receiver [ID- X1729]
         - Serviced By A Trimble Authorized Service Center
* Trimble 58957-10 Cable

Trimble MS750 Dual Frequency RTK Receiver
The MS750 represents the highest level of accuracy and response available from a dual frequency GPS receiver. The receiver is specifically designed to allow the easy integration of reliable centimeter-level positions to any guidance or control application.

Accuracy and Response Times
Dynamic platforms, require virtually instantaneous position reports multiple times per second. The MS750 delivers positions to guidance or control loop software twenty times per second with a latency of less than 20 milliseconds. This responsiveness is matched with a horizontal accuracy of two centimeters and vertical accuracy of three centimeters. For the most precise applications, the MS750 provides one centimeter accuracy horizontally at a 5 Hz rate with a small increase in latency.

Interfacing and Configuration Ease
The MS750 is designed to plug right into your application with minimal development. An easy touse application file interface enables the user to completely program receiver operation with a single command. Alternately, the receiver can be configured via the user-friendly built-in display and keyboard interface, or by the included Windows-based Configuration Toolbox software. Multiple configurations can be stored in the receiver as files and activated when desired. Local datum and transformation parameters may be loaded directly into the receiver. Therefore, output grid coordinates are compatible with GPS and traditional survey systems that may be in use on the same site. ASCII or Binary messages may be output through any of the three bi-directional serial ports. The receiver also includes support for the industry standard CAN (Controller Area Network) interface.

Advanced Technology
The accuracies, update rates and latencies available in the MS750 are made possible through a GPS architecture specifically designed for demanding dynamic positioning applications. Reliable operation in the most adverse environments, such as radio interference experienced at construction or mining sites, is a strict requirement. Custom designed hardware with Supertrakô multibit GPS signal technology and Everestô advanced multipath suppression provide superior tracking especially for weaker, low elevation satellites. Both the RTCM format for differential GPS corrections and Trimble's published Compact Measurement Record (CMR) differential data can be received simultaneously, allowing the receiver to choose the optimum source and provide seamless navigation. Available as an option is the ability to calculate the baseline vector between two moving receivers to centimeter accuracy. The MS750 addresses a vast range of applications in the field of machine positioning, guidance and control.

Features:

• 20 Hz position update rate
• Less than 20 milliseconds position latency
• Centimeter-level position accuracy
• Front panel display & keypad for status monitoring and configuration
• User-defined local coordinates direct from receiver
• Industry standard CAN bus interface

Spcifications:

STANDARD FEATURES
Centimeter accuracy, real-time positioning 20 Hz position updates < 20 ms position latency Front panel display & keypad User-defined local coordinates direct from receiver 3 serial I/O ports 2 CAN ports 1 PPS Output Trimble CMR Input/Output RTCM Input/Output   Compact, easy mounting design Synchronized 5 Hz position updates
ENVIRONMENTAL CHARACTERISTICS
Operating temp	-20°C to +60°C
Storage temp	-30°C to +80°C
Humidity	MIL 810 E, Meth. 507.3 Proc III, Aggravated, 100% condensing
Vibration	MIL 810 D, Tailored Random 3gRMS Operating Random 6.2gRMS Survival
Mechanical Shock	MIL 810 D ± 40 g Operating ± 75 g Survival
EMC Radiated Emissions Conducted Emissions Radiated Immunity ESD Input Voltage Transients	CISPR 12 SAE J1113/41 ISO/DIS 13766, 30V/m ±15KV ISO 7637-2
TECHNICAL SPECIFICATIONS
Tracking	9 channels L1 C/A code, L1/L2 full cycle carrier Fully operational during P-code encryption
Signal processing	Supertrak Multibit Technology Everest Multipath Suppression
Initialization	Automatic OTF (on-the-fly) while moving
Time required	Typically < 1 minute
Range	Up to 20 km from base for RTK
Start-up	< 90 seconds from power on to positioning < 30 seconds with recent ephemeris
Communications	3 × RS-232 ports. Baud rates up to 115,200 2 × CAN/J1939
Configuration	Via front panel display & keypad, Configuration Toolbox Software or user definable application files
Output Formats	NMEA-0183: GGK, GGA, ZDA, VTG, GST, PJT and PJK Trimble Binary Streamed Output
AVAILBLE OPTIONS
Moving Base RTK Rugged L1/L2 machine mount antenna
