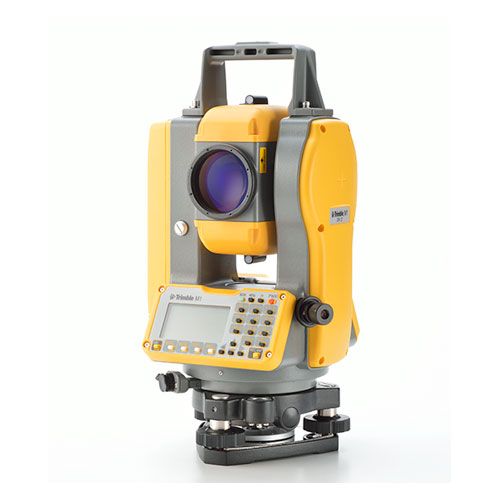

Trimble M1 DR Mechanical Total Station

Trimble M1 Mechanical Total Station


The Trimble M1 DR Total Station is a versatile, easy to use, conventional surveying instrument that provides Trimble dependability at an affordable price. You work in demanding environments and require reliable and efficient equipment that will work as hard as you do. The Trimble M1 DR Total Station is a compact, lightweight, and rugged total station tough enough for everyday use.

Available in 2" dual face or 5" single face models, the Trimble M1 meets your specific accuracy requirements. Both Trimble M1 models provide 3000 m range to a single prism and up to 400 m DR (Direct Reflex) range to non-reflective surfaces. The EDM in the M1 provides high precision measurements to both reflective and non-reflective surfaces and includes improved measurement speed for fast and accurate results in typical surveying environments. Equipped with legendary Nikon optics, the Trimble M1 provides proven clarity, quality and precision. The result is efficient operation and comfort throughout the workday.

 The M1 includes easy-to-use dual or single face keypads to operate the instrument. The intuitive and field-proven interface and onboard data collection software is fast to learn so that you can have your crews up and running quickly. The backlit display is easy to see in low light environments. Two user programmable measure keys allow you to separately configure measurement parameters, eliminating time switching between measurement modes

 Each M1 instrument comes standard with an integrated wireless Bluetooth connection. Through this connection, users can control the instrument using the power of Trimble Access field software on an external controller such as the Trimble TSC3. Measurements are stored directly in the Trimble Access job on the external controller. Use the Trimble M1 seemlessly right along with other Trimble solutions on the job site.

The Trimble M1 is small, lightweight, and durable, allowing for easy transport in and around the job site. Each system comes with two rechargeable long life Li-ion batteries and a dual battery charger providing enough power for even the longest of field days.

 A visible coaxial red laser pointer is included for fast and easy aiming along with internal optical plummet for easy known point setups. Packed with all these features and more, the Trimble M1 DR Total station is ready to become a trusted piece of your everyday surveying equipment set.

• 2" and 5" angle accuracies
• Prism and DR measurements
• Fast, accurate EDM provides fast, reliable measurements
• Long life Li-ion Battery
• Easy-to-use keypad
• Rugged and lightweight system design
