Trimble CB430 Control Box For GCS900 & CCS900

Trimble CB430 Control Box For GCS900 Grade Control System & CCS900 Compaction Control System
- Dozer 3D Automatics

$0.01

Availability: Out of stock

SKU

XPGC13

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Name *

E-mail address*

Phone Number

Country

Comment

Included

* Trimble CB430 Control Box P/N: 50270-10 w/ Options... [ID- X2174-L/T*]
- Dozer 3D Automatics

Description

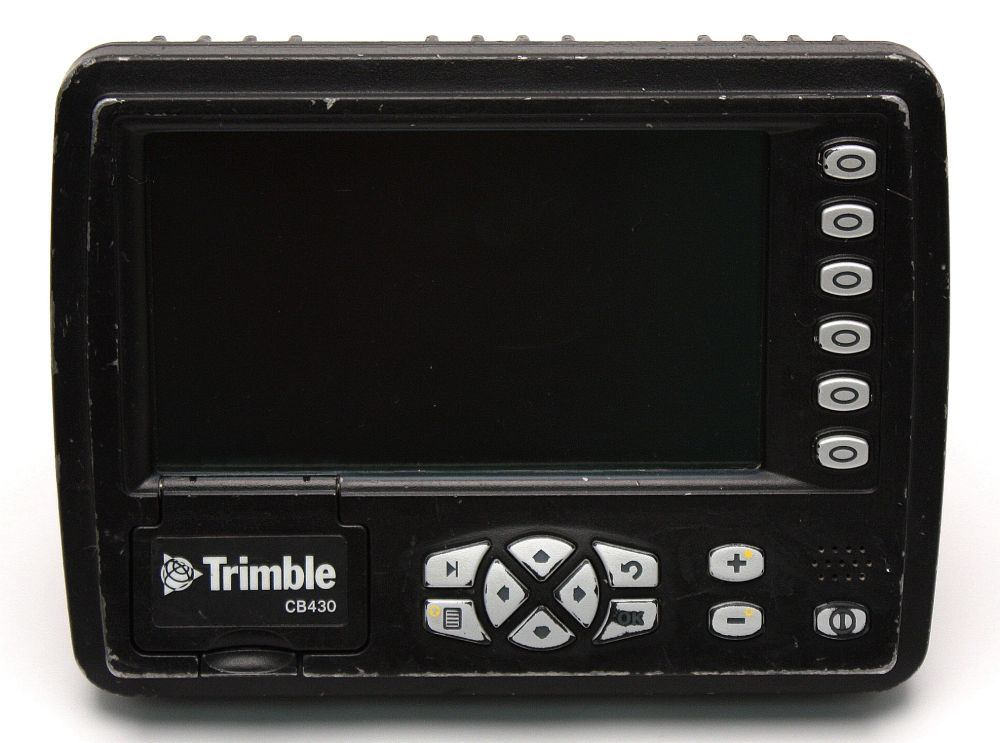

Trimble CB430 Control Box

The CB430 Control box is a computer that runs the system software. The control box has a color LCD screen to display guidance and other information, and push button controls to operate the system. In addition, the control box has a data card slot for loading and saving machine and display configuration data, and for loading and saving designs.

Trimble CB430 Specifications:

Key Features & Benefits	Rugged, ergonomically designed, 100% sealed cast aluminum on-machine display housing, with no internal moving parts Advanced LCD display screen with adjustable brightness capability and viewing angle to accommodate different operational lighting conditions A real-time multitasking operating system designed for mobile applications Positive contact keyboard with backlit keys and tactile feel when pressed Environmentally sealed data card slot with quick release door Integrated, operator feedback beeper High speed processor with low power consumption specifically for mobile applications which ensures reliable field operation and performance Input connection – single power and data connector (39-pin Mil-spec) Display mounting system which includes mount post and quick release locking swivel arm for a wide range of articulation Quick System Configuration ensuring that all necessary operator display and machine configuration information are saved and can be restored when swapping the display between machines, for faster system startup
Characteristics
Size:	170mm (6.7")
Length:	230mm (9.0")
Depth:	101mm (4.0")
Weight:	< 3 kg (6 lb)
Display:	178mm (7.0”), 480(w) x 234(h) pixel extended quarter VGA, 65,536 true colour, TFT active matrix, 400+ lux, sunlight readable, scratchresistant, low-glare glass.
General Housing Materials:	Fully sealed, high pressure die cast aluminum housing

More Information

More Information
Manufacturer	Trimble
