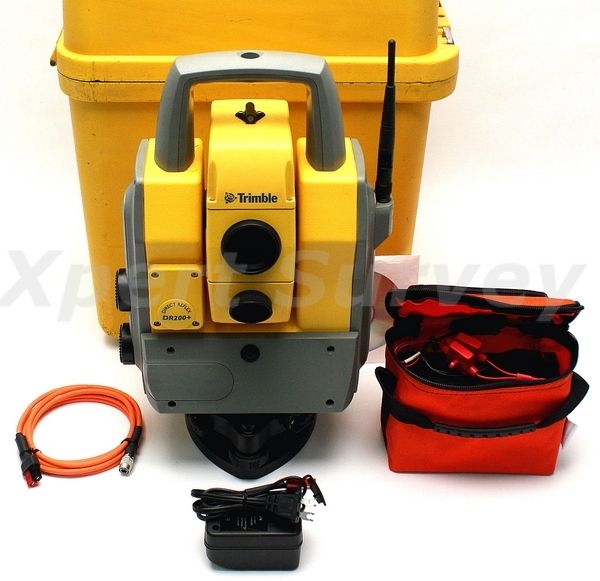

Trimble 5601 1" DR200+ Robotic AutoLock Total Station
- 2.4 GHz Radio
- This Unit Has Been Calibrated By A Trimble Authorized Service Center
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- 2.4 GHz Radio
- This Unit Has Been Calibrated By A Trimble Authorized Service Center
* GPAC Battery
* GPAC Power Cable
* Antenna
* AC Adapter/Charger
* Hard Carrying Case
Trimble
5601 Total Station
The Trimble 5600 Total Station series gives you access to the best and
most productive measuring methods available for every measuring
situation for every measuring situation for unassisted operation.
Servo
gives you a 30% productivity increase
The 5600 series is equipped with 4-speed servo operation that gives
variable speed, faster, smoother and more accurate aiming. Servo is the
platform for measurement automation and for further upgrades to
increased productivity.
Upgrade
to Autolock and the productivity increase is 50%
Autolock™ technology enables semi-robotic operation, with measuring and
recording taking place at the total station. The 5600 series seeks out
the RMT target (Active Remote Measuring Target), locks to it, and
follows it during movement between points. No fine adjustments needed,
no focusing, no problems working in the dark (the instrument will
locate the target in any situation), and no work-related injuries from
constant turning of the total station. In most cases the Autolock
feature makes it possible to stake out and gather survey data as fast
as the rodman can move.
Upgrade
to Robotic and the productivity increase is 80%
Robotic operation offers the same advantages as Autolock—in addition,
it allows you to work on your own. Robotic measuring offers more than
increased productivity and reduced personnel costs. It also gives
higher quality measurements all the control initiation and registering
take place at the measuring point, where any errors or discrepancies
are quickly identified.
Combine
Robotic with DR200+ to double productivity
The long-range Direct Reflex EDM system (DR200+) option on the 5600
series allows you to measure up to 600 meters against a white object
and 200 meters against Kodak Grey (the international standard to
determine the range of reflectorless total stations). That’s 3.3 times
further than any other reflectorless total station! And the range using
a single prism is 5.5 kilometers. Combining DR200+ capability with
robotic operation results in the ultimate total station.
True
Integrated Surveying
There are situations where measuring by GPS is more productive than by
using a conventional total station, and vice versa. Trimble Integrated
Surveying™ solutions offer you the best of both worlds. Simply move the
control unit from one system to the other in a matter of seconds and go
on with your survey. The software environment is identical and the data
flow seamless.
Features:
- Autolock and Robotic Surveying for increased productivity
- 4-speed servo
- Active search system
- Seamless data flow
- Choice of User Interfaces
Specifications:
| Accuracy |
|
| Accuracy SDV 5 - 200 m (16,4 ft - 656 ft) |
±(3 mm + 3
ppm) ±(0.01 ft + 3 ppm |
| beyond 200
m (656 ft) (without reflector) |
±(5 mm + 3
ppm) ±(0.016 ft + 3 ppm) |
| Shortest
possible range: |
2 m (6.5 ft) |
| Least count Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK): |
0.1 mm (0.0005 ft) 1 mm (0.005 ft) 1 mm (0.005 ft) 10 mm (0.01 ft) |
| Measuring
time (with reflector) Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK): |
Users decision 2 sec. 2 sec 0.4 sec. |
| Measuring
time (without reflector) Arithmetic mean value (D-bar): Standard measurement (STD): Fast standard (FSTD): Tracking (TRK): |
Users decision |
| Light
source: |
IR Laser
Diode 850 nm |
| Beam
divergence Horizontal: Vertical: |
0.4 mrad (4 cm/100 m) (0.13 ft/328 ft) 0.8 mrad (8 cm/100 m) (0.26 ft/328 ft) |
| Atmospheric
correction: |
-60 to 195
ppm continuously |
| Angle
Measurement |
|
| Accuracy
(Standard deviation based on DIN 18723) |
1” (0.3
mgon) |
| Angle
reading (least count) Number of decimals can be specified by the user Arithmetic mean value (D-bar): Standard measurement: Fast tracking: |
0.1” (0.01 mgon) 1” (0.1 mgon) 2” (0.5 mgon |
| Automatic
level compensator Dual-axis compensator with a working range of: |
6’ (±100 mgon) |
| Range using
a reflector |
|
| Range using
Geodimeter prism 571 125 021. Standard clear |
|
| With one
prism |
5500 m (3.4
miles) (max.range |
| Range using
Plastic Reflector |
1500 m (0.9
miles) |
| Range using
Reflex Tape |
800 m (0.5
miles) |
| Range Direct Reflex measurement (typically): | |
| Range Kodak
Gray (18% reflective) |
>200 m
(656 ft) |
| Range Kodak
White (90% reflective) |
>600 m (1968 ft) |
| Concrete |
200 - 300 m
(656 - 984 ft) |
| Wood Constructions | 150 - 300 m
(492 - 984 ft) |
| Metal
Constructions |
150 - 200 m
(492 - 656 ft) |
| Light Rock |
150 - 250 m
(492 - 820 ft) |
| Dark Rock | 100 - 150 m (328 - 492 ft) |
| General | |
| Aiming | Servo-drive.
Endless fine adjustment |
| Levelling |
|
| Compensator | Dual axis compensator |
| Working range | 6’ (±100 mgon) |
| Circular level in tribrach: | 8’/2 mm (8’/0.007 ft) |
| Electronic
2-axis level in the LC-display with a resolution of: |
6” (2 mgon) |
| Centering: |
Optical plummet in tribrach |
| Telescope |
Coaxial |
| Magnification: | 26X (30X optional) |
| Focussing
range: |
1.7 m (5.58 ft) to infinity |
| Field of view | 2.6 m at 100 m (8.5 ft at 328 ft) |
| Illuminated crosshair: | Yes, variable (15 steps) |
| Operating temperature: | -20°C to +50°C (-5°F to +122°F) |
| Data input/output: | RS-232C Two-way communication |
| Batteries: |
|
| Central unit: | rechargeable NiMH battery 12V, 1.6 Ah |
| External: | rechargeable NiMH battery 12V, 3.5 Ah |
| Power consumption: | 0.5A – 1.0A depending on use of servo, tracker, radio and type of measurement mode. |
| Weight |
|
| Instrument
(incl. Geodimeter Control Unit): |
6.4 kg (14.1 lbs) |
| Tribrach: | 0.7 kg (1.5 lbs) |
| Internal battery: | 0.4 kg (0.9 lbs |
| Instrument
for robotic surveying: (incl. Tracker and built in radio) |
7.5 kg (16.5 lbs |
