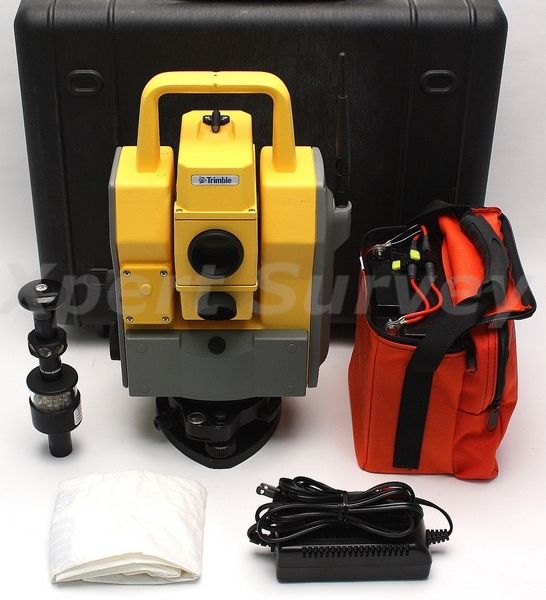

Trimble 5600 IR 1" Robotic AutoLock ATS Total Station

* Trimble 5600 IR 1" Total Station [ID- X2141]
          - 2.4 GHz Integrated Radio
          - AutoLock
          - Robotic
          - ATS: Advanced Tracking Sensor for Machine Control
          - This Unit Has Been Calibrated By A Trimble Authorized Service Center
* Trimble Remote Target 606 [ID- X2142]
* GPAC Battery w/ Case
* GPAC Power Cable for Battery
* Antenna
* Rain Cover for Unit
* Hard Carrying Case

Trimble 5600 Total Station Series

Servo-driven, highly productive measuring system upgradable to Autolock and Robotic surveying

The Trimble 5600 Total Station series gives you access to the best and most productive measuring methods available—for every measuring situation—for unassisted operation.

Servo gives you a 30% productivity increase
The 5600 series is equipped with 4-speed servo operation that gives variable speed, faster, smoother and more accurate aiming. Servo is the platform for measurement automation and for further upgrades to increased productivity.

Upgrade to Autolock and the productivity increase is 50%
Autolock™ technology enables semi-robotic operation, with measuring and recording taking place at the total station. The 5600 series seeks out the RMT target (Active Remote Measuring Target), locks to it, and follows it during movement between points. No fine adjustments needed, no focusing, no problems working in the dark (the instrument will locate the target in any situation), and no work-related injuries from constant turning of the total station. In most cases the Autolock feature makes it possible to stake out and gather survey data as fast as the rodman can move.

Upgrade to Robotic and the productivity increase is 80%
Robotic operation offers the same advantages as Autolock— in addition, it allows you to work on your own. Robotic measuring offers more than increased productivity and reduced personnel costs. It also gives higher quality measurements— all the control initiation and registering take place at the measuring point, where any errors or discrepancies are quickly identified.

Combine Robotic with DR200+ to double productivity
The long-range Direct Reflex EDM system (DR200+) option on the 5600 series allows you to measure up to 600 meters against a white object and 200 meters against Kodak Grey (the international standard to determine the range of reflectorless total stations). That’s 3.3 times further than any other reflectorless total station! And the range using a single prism is 5.5 kilometers. Combining DR200+ capability with robotic operation results in the ultimate total station.

True Integrated Surveying
There are situations where measuring by GPS is more productive than by using a conventional total station, and vice versa. Trimble Integrated Surveying™ solutions offer you the best of both worlds. Simply move the control unit from one system to the other in a matter of seconds and go on with your survey. The software environment is identical and the data flow seamless.

GENERAL FEATURES	• High-precision upgradeable total station • Angular accuracy of 1˝ and distance accuracy of ± (0.8 mm + 1 ppm) • Autolock® , 4-speed servo, and robotic options • Long range distance measurement up to 3,900 m (12,790 ft) • All metal instrument • Choice of data collector • Endless tangents
ANGLE MEASUREMENT
Accuracy (Standard deviation based on DIN 18723)
5600 IR	1˝ (0.3 mgon)
Angle reading (least count) horizontal and vertical
Standard measurement	1˝ (0.1 mgon)
Fast Standard	1˝ (0.1 mgon)
Tracking	2˝ (0.5 mgon)
Arithmetic mean value (D-bar)
Horizontal angle	0.1˝ (0.01 mgon)
Vertical angle	1˝ (0.1 mgon)
Automatic level compensator	Dual-axis compensator 6´ (±100 mgon)
DISTANCE MEASUREMENT
Accuracy (Standard deviation)
Prism
Standard measurement	±(2 mm + 2 ppm) ±(0.007 ft + 2 ppm)
Fast Standard	±(4 mm + 2 ppm) ±(0.014 ft + 2 ppm)
Tracking	±(6 mm + 2 ppm)  ±(0.019 ft + 2 ppm)
Arithmetic mean value (D-bar) +5º C to +40º C(+41º F to 104º F) and up to 500 m (1,640 ft)	±(0.8 mm + 1 ppm) ±(0.0026 ft + 1 ppm)
Arithmetic mean value (D-bar) outside the above temperature range and over 500 m (1,640 ft)	±(1 mm + 1 ppm) ±(0.003 ft + 1 ppm)
Shortest possible range to prism	0.2 m (0.7 ft)
Measuring time
Standard measurement	3.5 seconds
Fast Standard	1.3 seconds
Tracking	0.4 seconds
Arithmetic mean value (D-bar)	Repeats until stopped manually (or after 99 measurements)
Range (under standard clear conditions*)
1 prism	2,000 m (6,560 ft)
1 prism, Long Range Mode	2,800 m (9,185 ft)
3 prism	2,800 m (9,185 ft)
3 prism, Long Range Mode	3,900 m (12,790 ft)

*) Standard clear: No haze. overcast or moderate sunlight with atmospheric conditions and background radiation

ROBOTIC SURVEYING SPECIFICATIONS
Range
Range Range Robotic*	Up to 1,200 m (4,920 ft) depending on type of RMT
Range Autolock*	Up to 2,200 m (7,216 ft) depending on type of RMT
Shortest search distance	2 m (6.5 ft)
Position accuracy at 200 m (656 ft)
(Standard deviation)	<2 mm (0.007 ft)
Angle reading (least count)
Standard measurement	1˝ (0.1 mgon)
Fast Standard	1˝ (0.1 mgon)
Tracking	2˝ (0.5 mgon)
Arithmetic mean value (D-bar)	1˝ (0.1 mgon)
Measuring time
Standard measurement	5–10 seconds
Fast Standard	5–10 seconds
Tracking	0.4 seconds
Arithmetic mean value (D-bar)
Search time (typical)**	<10 seconds**
Search area	360 degrees (400 gon) or defined search window

*) Range and accuracy are dependent on atmospheric conditions and background radiation
**) Dependent on selected search window

GENERAL SPECIFICATIONS
Light source	Infrared GaAs diode
Beam divergence	1.6 mrad (16 cm/100 m) (0.52 ft/328 ft)
Atmospheric correction	Atmospheric correction
Leveling
Circular level in tribrach	8´/2 mm (8´/0.007 ft)
Electronic 2-axis level in the LC-display	6˝ (2 mgon)
Clamps and slow motions	Servo-drive with endless fine adjustment
Centering
Centering system	Trimble 3-pin
Optical plummet	Optical plummet in tribrach
Magnification	2.4×
Shortest focusing distance	0.5 m to infinity (1.6 ft to infinity)
Telescope
Magnification	26× (30× Optional)
Aperture	40 mm (1.57˝)
Field of view at 100 m (328 ft)	2.6 m (8.5 ft)
Shortest focusing distance	1.7 m (5.58 ft) to infinity
Illuminated crosshair	Yes, variable (15 steps)
Tracklight	Standard
Operating temperature	–20º C to +50º C (–5º to +122º F)
Power supply
External battery	External rechargable NiMH batteries 12V, 3.8–11.4 Ah. Operating time approximately 11h Autolock, 9h Robotic (11.4 Ah)
Weight
Instrument with ACU	6.7 kg (14.7 lbs)
Instrument with Geodimeter CU	6.4 kg (14.1 lbs)
Tribrach	0.7 kg (1.5 lbs)
Instrument for Robotic surveying (including Tracker, and built-in radio)	7.5 kg (16.5 lbs)
Trunnion axis height	205 mm (8.1 in)
