Topcon TRL-35 410 - 470 MHz Digital UHF Base Radio Modem
- 410 - 470 MHz Radio
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- 410 - 470 MHz Radio

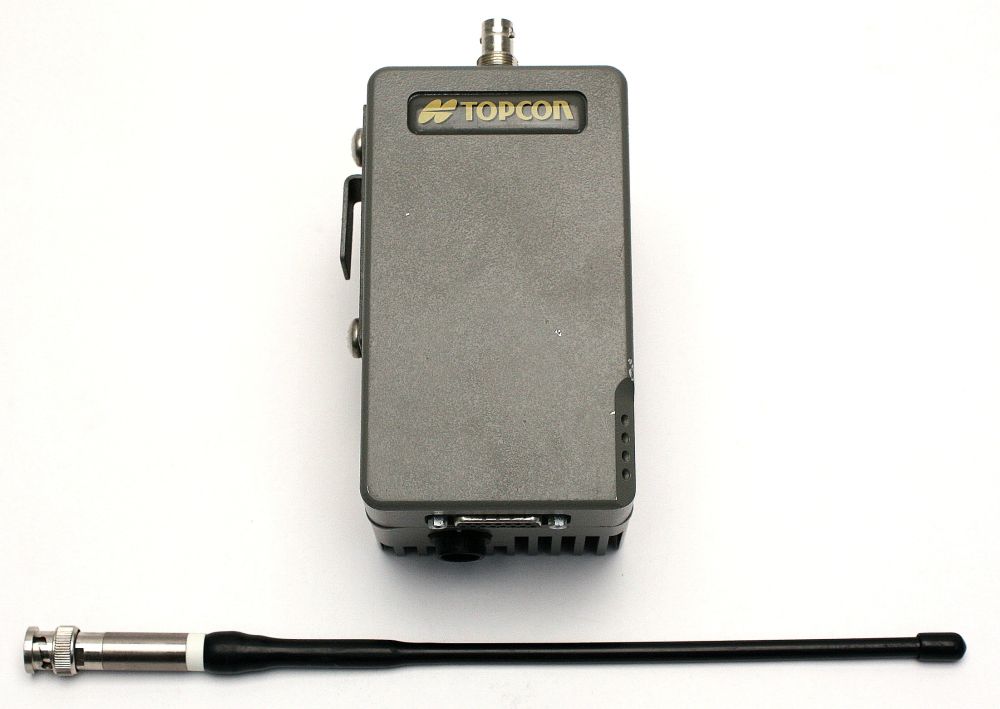

Topcon TRL-35 Radio
The TRL-35 is a transmit/receive/repeating digital UHF modem. It is a 35W
high powered base radio that uses the same DSP technology as is used in
the GR-3 Digital UHF Receiver.
The TRL-35 Radio can be used to enhance the following survey
related systems:
- As a high power transmitter/receiver external UHF radio for any base system
- As a high power repeater (not in PDL protocol currently)
Obstructions such as buildings, terrain, trees, and so forth greatly affect the usability and range of any radio system. However, the TRL-35 as a high powered transmitter/repeater provides an increase in the operational range and effectivity of the system in unfavorable environments.
The TRL-35 is compatible with:
- GR-3 Digital UHF radio
- Existing Pacific Crest Radios (Currently only PDL radios using GMSK modulation)
- Trimble Radios using Trimtalk 450s (currently only Trimble radios using GMSK modulation)
Simple features and configurations allow the TRL-35 to be adaptable to most situations, and make it easy to use.
Specifications:
| General Specifications |
|
| Operating frequency range country / region / purpose | 410 - 470 Mhz |
| Modulation Techniques |
GMSK, DBPSK, DQPSK, D8PSK, and 16 QAM modulation Tech. |
| Channel Spacing |
12.5 Khz / 25 Khz |
| Transmission Rate at 25 KHz Spacing |
DBPSK/GMSK - 9600 Bps DQPSK - 19200 bps D8PSK - 28800 bps D16QAM - 19200 bps |
| Transmission rates at 12.5 KHz spacing |
DBPSK/GMSK - 4800 bps DQPSK - 9600 bps D8PSK - 14400 bps D16QAM - 19200 bps |
| Data Speed of Serial Interface | Max 115200 bps |
| Forward error correction | Available |
| Scrambling | Available |
| Communication Mode | Half-Duplex |
| System Gain | 158 dBm (25 KHz), 159 dBm (12.5 KHz) |
| Transmitter Specifications |
|
| Output power |
GMSK - 33 dBm to 45 dBm in 1dB steps (2W to 35W) DBPSK - 33 dBm to 45 dBm in 1dB steps (2W to 35W) DQPSK - 33 dBm to 45 dBm in 1dB steps (2W to 35W) D8PSK - 28 dBm to 40 dBm in 1dB steps (650 mW to 10W) D16QAM - 25 dBm to 37 dBm in 1 dB steps (320 mW to 5W) |
| Nominal Output Impedance |
50 Ohms |
| Output Power Control Accuracy | + 1.5 dB (at normal test condition) |
| Carrier Frequency Stability | +/- 1.5ppm initial stability over temp with +/- 3.0 ppm aging/year |
| Adjacent channel Power (conducted) | +/- 1.0 kHz (at normal test conditions) |
| Adjacent Channel Power (conducted) | 65dB |
| Receiver Specifications |
|
| Noise Figure |
5 dB |
| Receiver Sensitivity for DBPSK (@ BER <1x10 -4, over
temperature -30 C to + 60 C, 25/12.5 KHz |
GMSK -113 dBm @ 25 kHz / -114 dBm @ 12.5 kHz DBPSK -113 dBm @ 24 kHz / -114 dBm @ 12.5 kHz DQPSK -112 dBm/ -111 dBm 12.5 kHz D8PSK -106 dBm @ 25 kHz / -107 dBm @ 12.5 kHz D16QAM -100 dBm @ 25 kHz / -101 dBm @ 12.5 kHz |
| Adjacent Channel Selectivity |
-70 dB for 25 kHz channel spacing -60 dB for 12.5 kHz Channel spacing |
| Nominal Input Impedance |
50 Ohms |
| Co-Channel rejection 25/12/5 kHz | -8/-12 dB |
| Adjacent Channel Selectivity 25/12.5 kHz | 70/60 dBc |
| Environmental Specifications |
|
| Temperature |
Operating: -30 C to +60 C |
| Environmental |
IP 66 |
| Dimensions |
6" x 2.9" x 2.8" D |
| Weight |
27 oz |
| Power Supply Voltage | +9 to +16 Vdc nominal |
| Compliances | |
| FCC |
FCC Part 90 |
| Industry Canada |
RSS-210 |
| UL | UL 1419 |
| UL Hazardous Locations | Class 1, Div 2; Gropus A, B, C and D; hazardous locations |
| FM | Approved |
| Manufacturer | Topcon |
|---|
