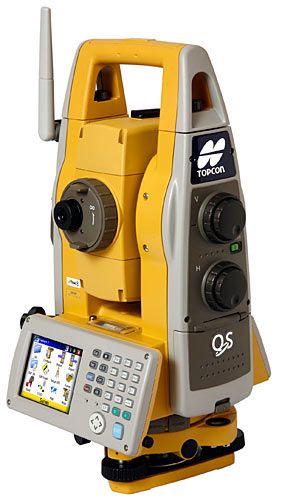

Topcon QS5 Quick Station Robotic Total Station
Topcon QS5 Robotic Systems offer reflectorless measurement superior to any other instrument - capable of precision measurements at a mind-boggling 6,500 ft. (2,000m)!
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
| Faster - Smarter - Farther - Stronger. The Topcon QS Series robotic total stations are the latest, most advanced systems on the market today combining modern design and advanced technology. | |
|
With a modern, cable-free design, the QS Series offers the most advanced robotic technology available. Our one-touch Quick Lock feature that set the standard in robotic target acquisition has taken another step forward with X-TRAC 8, a superior technology solution for strong tracking and quick re-acquisition in challenging environments.
Features Include:
|
|
| SPECIFICATIONS | |||
| ANGLE MEASUREMENT | QS5 | ||
| Method | Absolute Reading | ||
| Horizontal | 2 sides | ||
| Vertical | 2 sides | ||
| Minimum Reading | 0.5”/1” (0.1/0.5mgon) | ||
| Accuracy | 1” (0.3mgon) | ||
| Tilt Correction | Dual Axis | ||
| Compensating Range | ±6’ | ||
| DISTANCE MEASUREMENT | QS5 | ||
| 1 prism | 9,840’ (3,000m) | ||
| 3 prism | 13,120’ (4,000m) | ||
| 9 prism | 16,400’ (5,000m) | ||
| Non-Prism Mode | 4.9’ - 820’ (1.5m - 250m) | ||
| Non-Prism Long Mode | 16.4’ - 6,500’ (5.0m - 2,000m) | ||
| MEASUREMENT ACCURACY | QS5 | ||
| Prism Mode | Fine 0.2mm / 1mm ±(2mm+2ppmxD) m.s.e. Coarse 1mm ±(7mm+2ppmxD) m.s.e. Coarse 10mm ±(10mm+2ppmxD) m.s.e. |
||
| Non-Prism Mode | Fine 0.2mm / 1mm ±(5mm) m.s.e. Coarse 1mm / 10mm ±(10mm) m.s.e. |
||
| Non-Prism Long Mode | Fine 1mm ±(10mm+10ppmxD) m.s.e. Coarse 5mm ±(20mm+10ppmxD) m.s.e. Coarse 10mm ±(100mm) m.s.e. |
||
| USER INTERFACE | QS5 | ||
| OS | Microsoft Windows® CE.NET 4.2 | ||
| Processor | Intel PXA255 400MHz | ||
| Screen | Full Color Touch-screen | ||
| Manufacturer | Topcon |
|---|
