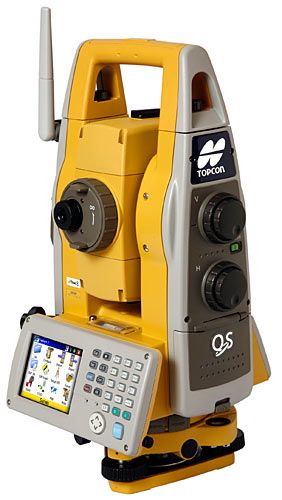

Topcon QS3 Quick Station Robotic Total Station
Topcon QS3 Robotic Systems offer reflectorless measurement superior to any other instrument - capable of precision measurements at a mind-boggling 6,500 ft. (2,000m)!
Condition: Used
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
|
* Topcon QS3 Quick Station Robotic Total Station (BC# -L/T*) |
Topcon QS3 Quick Station Robotic Total Station
The Topcon QS3 Quick Station is a robotic total station designed for surveying and construction layout. It measures horizontal and vertical angles along with distances to establish precise point locations. With 3-arcsecond angular accuracy, it supports work such as site surveys, mapping, and positioning construction features.
Its X-TRAC 8 tracking technology follows a moving prism, while the RC-4 Quick Lock system helps the operator acquire the target quickly. These robotic functions allow a surveyor to collect measurements while working at the prism. The QS3 also offers reflectorless measurement, allowing it to measure suitable surfaces without placing a prism at each point.
A full-color touchscreen and integrated wireless radio support field operation and communication with a compatible controller. The QS3 can be used to record existing site conditions, set out planned locations, and check completed work against design positions. Its combination of angle measurement, distance measurement, and automated tracking helps streamline surveying and layout tasks.
Features:
- 3-arcsecond angular accuracy for surveying and construction layout.
- X-TRAC 8 automatic prism tracking with a published range of up to 1,000 m.
- RC-4 Quick Lock for fast target acquisition and reacquisition.
- Reflectorless measurement up to 2,000 m in long-range mode.
- Single-prism measurement up to 3,000 m.
- Dual-axis tilt compensation with a ±6′ correction range.
- Full-color touchscreen with a Windows CE interface.
- Integrated 2.4 GHz radio for communication with compatible field equipment.
- Fast robotic servo motors and one-touch robotic setup
| Specification | Topcon QS3 |
|---|---|
| Instrument type | Robotic total station |
| Angular accuracy | 3″ (1 mgon) |
| Minimum angular reading | 1″ / 5″ |
| Angle measurement | Absolute reading |
| Tilt compensation | Dual-axis |
| Compensation range | ±6′ |
| Range—single prism | 3,000 m |
| Range—three prisms | 4,000 m |
| Range—nine prisms | 5,000 m |
| Prism accuracy—fine mode | ±(2 mm + 2 ppm × D) |
| Prism accuracy—coarse 1 mm | ±(7 mm + 2 ppm × D) |
| Prism accuracy—coarse 10 mm | ±(10 mm + 2 ppm × D) |
| Reflectorless range—standard | 1.5–250 m |
| Reflectorless accuracy—standard, fine | ±5 mm |
| Reflectorless accuracy—standard, coarse | ±10 mm |
| Reflectorless range—long mode | 5–2,000 m |
| Reflectorless accuracy—long, fine | ±(10 mm + 10 ppm × D) |
| Reflectorless accuracy—long, coarse 5 mm | ±(20 mm + 10 ppm × D) |
| Reflectorless accuracy—long, coarse 10 mm | ±100 mm |
| Prism tracking | X-TRAC 8 |
| Tracking range | 1,000 m |
| Target acquisition | RC-4 Quick Lock |
| Integrated radio | 2.4 GHz spread spectrum |
| Display | Full-color touchscreen |
| Operating system | Windows CE.NET 4.2 |
| Processor | Intel PXA255, 400 MHz |
| Manufacturer | Topcon |
|---|
