Topcon PS-105 Robotic Total Stations
The PS-105 5-inch Total Station is a professional grade robotic total station and its new advanced design provides an onboard data collection interface, exclusive LongLink™ communication, and an incredibly powerful EDM.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

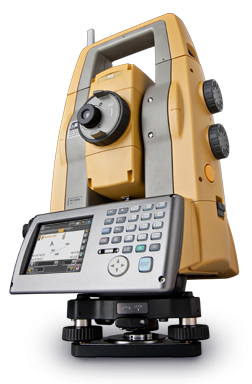

Topcon PS-105 Total Station
Advanced Design with Superior Technology
The PS is a professional grade robotic total station. This new advanced design provides an onboard data collection interface, exclusive LongLink™ communication, and an incredibly powerful EDM.
You can work directly on the bright, color touchscreen or with the alpha-numeric keyboard, to achieve higher levels of production with MAGNET™ Field onboard software. The PS total station can be used on a wide variety of applications. From building layout to earthwork volumes, and land surveying or control of your machines on site, the PS is the productive choice.
Topcon’s PS Series of robotic total stations is for the professional who is looking for a one-man solution for even the most challenging job site situation. This rugged, waterproof and dustproof total station series has the revolutionary TSshield™ advanced security and maintenance system, exclusive LongLink™ communications module, and the RC-5 integrated remote system
PS-105 Features:
- New TSshield™ Advanced Security and Maintenance
- PowerTrac™ Tracking
- Fast and Powerful EDM
- Exclusive LongLink™ Communications
- Advanced Angle Accuracy
- Rugged, Waterproof and Dustproof Design
PS Series Specifications:
| Telescope | |
| Resolving power | 2.5” |
| Magnification | 30x |
| Angle Measurement | |
| Min. Resolution/Accuracy | |
| PS-101 | 1” |
| PS-103 | 3” |
| PS-105 | Not available in North America |
| Tilt Angle Compensation | |
| Compensation | Dual-axis compensator |
| Range | ±6’ |
| Distance Measurement | |
| Prism EDM Range | 6,000m |
| Prism EDM Accuracy | 1.5mm+2ppm |
| Non-Prism Range | 1,000m |
| Non-Prism Accuracy | 2mm+2ppm (0.3-200m) |
| Measuring Time | Fine: 0.9 sec |
| Rapid: 0.6 sec | |
| Tracking: 0.4 sec | |
| Communications | |
| • LongLink™ rover communication* | |
| • USB 2.0 Slot (Host + Slave) | |
| • RS-232C Serial | |
| General | |
| Display | Color Touch TFT 240 x 320 QVGA Display |
| Keyboard | 25 keys with illuminator |
| Battery Operation | Up to 4 hours |
| Dust/Water Protection | IP65 |
| Wireless Connection | Bluetooth® Class 1 |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Manufacturer | Topcon |
|---|
