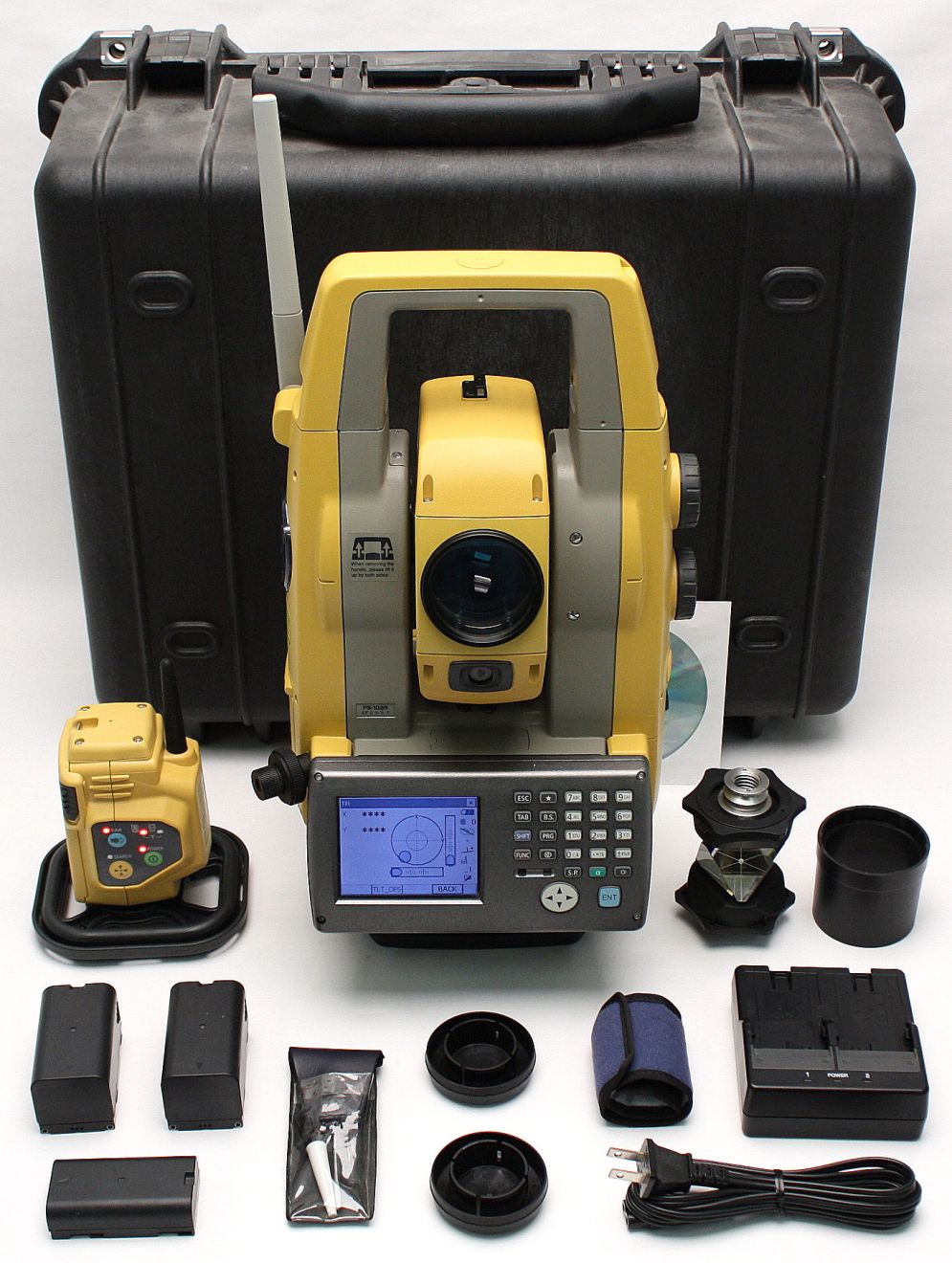

Topcon PS-103A Power Station 3" Robotic Total Station PS-103

* Topcon PS-103A Power Station 3" Robotic Total Station [ID- X2411-L/T*]
         - 2.4 GHz Radio
* Topcon RC-5 Remote Control [ID- X2412-L/T*]
* Topcon ATP 1 Prism w/ Protective Strap & QTY. 2 Rubber Caps [ID- X2418-L/T*]
* Topcon CDC68A Battery Charger
* Lens Hood For PS-103A
* Assorted Tool Kit
* QTY. 5 Battery Packs
* Power Cord
* User Manual On CD-ROM
* Hard Carrying Case (G)

Topcon PS-130A Power Station

Advanced Design with Superior Technology
The PS is a professional grade robotic total station. This new advanced design provides an onboard data collection interface, exclusive LongLink™ communication, and an incredibly powerful EDM.

You can work directly on the bright, color touchscreen or with the alpha-numeric keyboard, to achieve higher levels of production with MAGNET® Field onboard software. The PS total station can be used on a wide variety of applications. From building layout to earthwork volumes, and land surveying or control of your machines on site, the PS is the productive choice.

A World’s First! New TSshield™
Topcon is proud to offer another World’s First technology in all PS Series total stations – TSshield™. Every instrument is equipped with a telematicsbased multi-function communications module providing the ultimate security and maintenance capabilities for your investment.

If your activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it. This feature secures your total station anywhere in the world!

In the same module you have daily connectivity to cloud-based Topcon servers that can inform you of available software updates and firmware enhancements.

PowerTracTM Tracking Technology
The revolutionary PowerTracTM engine dramatically increases power for prism tracking. Employing entirely new optics, laser system, and further advanced algorithms, PowerTracTM provides the PS Series with unsurpassed ability to keep tracking a moving prism even under the toughest environmental conditions.

Features:

• Advanced security and maintenance with new TSshield™
• PowerTrac™ tracking
• Ultra-powerful advanced EDM
• Exclusive LongLink™ communications
• Advanced angle accuracy
• Rugged, waterproof design

Ultra-Powerful, Advanced EDM

• 1,000 m non-prism range
• 6,000 m prism range
• Less than 1- second fine measurement
• Coaxial red laser pointer
• Pinpoint, precise beamspot

Easy Access USB 2.0 Memory

• Up to 8GB storage
• Environmentally protected
• Compatible with industry standard USB memory stick

Advanced Angle Accuracy

• Self-calibration
• Proven high accuracy technology
• Angle encoder “Best-in-Class”

Rugged, Waterproof Design

• Waterproof/Dustproof IP65 design handles the toughest environments
• Magnesium-alloy housing providing stable angle accuracy
• Graphic display and alphanumeric keyboard (standard)

Specifications:

Telescope
Resolving power	2.5”
Magnification	30x
Angle Measurement
Min. Resolution/Accuracy	3”
Tilt Angle Compensation
Compensation	Dual-axis compensator
Range	±6’
Distance Measurement
Prism EDM Range	6,000 m
Prism EDM Accuracy	1.5 mm+2 ppm
Non-Prism Range	1,000 m
Non-Prism Accuracy	2 mm+2 ppm (0.3-200 m)
Measuring Time	Fine: 0.9 sec Rapid: 0.6 sec Tracking: 0.4 sec
Communications
LongLink™ rover communications USB 2.0 Slot (Host + Slave) RS-232C Serial
General
Display	Color Touch TFT 240 x 320 QVGA Display (Dual Display)
Keyboard	25 keys with illuminator (Single Keyboard)
Battery Operation	Up to 4 hours
Dust/Water Protection	IP65
Wireless Connection	Bluetooth® Class 1
Operating Temperature	-4°F to +122°F (-20°C to +50°C)
