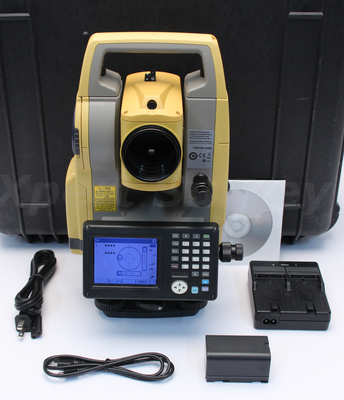

Topcon OS-105 Compact Total Station

Topcon OS-105 Total Station


Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology

The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software. The OS total Station can be used on a wide variety of applications.  From building layout to earthwork volumes, and land surveying, the OS is the productive choice.

Topcon OS-105 Features

• Advanced Security & Maintenance with New TSshield™
• MAGNET Field On-board
• Exclusive LongLink™ Communications Functionality
• Fast and Powerful EDM
• Advanced Angle Accuracy


World’s First TSshield™ Remote Security and Notification System

• Disable your instrument remotely if lost or stolen
• Get notified of Firmware updates
• Online instrument operational history

The OS is the perfect total station for many field applications including:
• Land Surveying Property
• Land Surveying Topo & Stakeout
• Earthwork Volumes
• Building Interior Layout
• Construction of Roads
• Law Enforcement Mapping

Primary OS features include:

Exclusive LongLinkTM
• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.

Ultra-Powerful, Advanced EDM
• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot


Advanced Angle Encoder System
• Incorporates exclusive IACS (Independent Angle Calibration System)  on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology

 EDM Trigger Key
• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands


Advanced OS features include:
• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button

Topcon OS-105 Total Station Specifications:

MODEL		OS-105
Telescope
Magnification / Resolving power		30x / 2.5”
Others		Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30’ (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels
Angle measurement
Display resolution		1” / 5” (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)		5"
Dual-axis compensator / Collimation compensation		Dual-axis liquid tilt sensor, working range: ±6’ (±111mgon) / Collimation compensation available
Distance measurement
Laser output *1		Reflectorless mode: Class 3R / Prism / sheet mode: Class 1
Measuring range (under average conditions*2)	Reflectorless*3	0.3 to 500m(1.0 to 1,640ft.)
	Reflective sheet*4/*5	RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)
	Mini prisms	CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.)
	One AP prism	1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)
	Three AP prisms	to 5,000m (16,400ft.) / Under good conditions*6: to 6,000m (19,680ft.)
Display resolution		Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in.
Accuracy*2	Reflectorless*3	(3 + 2ppm x D) mm*7
(ISO 17123-4:2001)	Reflective sheet*4	(3 + 2ppm x D) mm
(D=measuring distance in mm)	AP/CP prism	(2 + 2ppm x D) mm
Measuring time*8		Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
Interface and Data management
Display / Keyboard		Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight
Control panel location*9		On both faces
Trigger key		On right instrument support
Data storage	Internal memory	750MB
	Plug-in memory device	USB flash memory (max. 8GB)
Interface		Serial RS-232C, USB2.0 (Type A, for USB flash memory)
Bluetooth modem (option)*10		Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)*11
General
Laser-pointer*12		Coaxial red laser using EDM beam
Guide light*12		Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Levels	Graphic	6’ (Inner Circle)
	Circular level	10’ / 2mm
Optical plummet		Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Laser plummet (option)		Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product
Dust and water protection		IP65 (IEC 60529:2001)
Operating temperature*13		-20 to +50°C (-4 to +122°F)
Size with handle*8		Control panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.)
		Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)
Weight with handle and battery		Approx. 5.6kg (12.3 lb.)
Power supply
Battery	BDC70 detachable battery	Li-ion rechargeable battery
Operating time (20°C)	BDC70	Approx. 20 hours (single distance measurement every 30 seconds)
	External battery (option)	BT-73Q: approx. 45 hours (single distance measurement every 30 seconds)
*1 IEC60825-1:Ed.2.0:2007 / FDA CDRH 21 CFR Part 1040.10 and 11 *2 Average conditions: Slight haze, visibility about 20km (12 miles), sunny periods, weak scintillation. *3 With Kodak Gray
