Topcon OS-101 Reflectorless Onboard Total Station

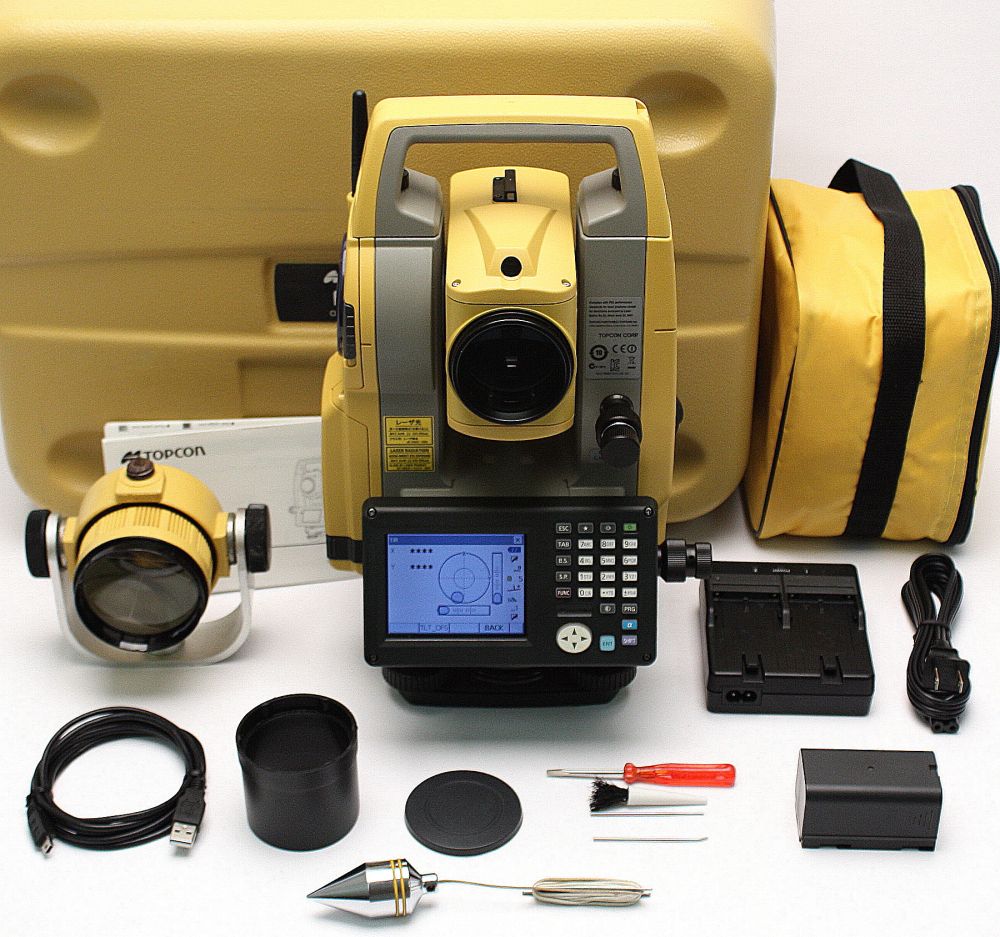

* Topcon OS-101 1" Reflectorless Onboard Total Station [ID- X1905-L/T*]
          - Topcon Magnet Field Software Version 2.5.1
          - OS Version 1.24
          - Optics
          - Roads
          - Bluetooth
          - Factory Calibrated
* Topcon O Offset Prism
* Topcon CDC68A Battery Charger
* Lens Cap
* OS Series Quick Manual
* Accessory Case
* QTY. 2 Battery Packs
* Power Cord
* USB PC Interface Cable
* Hard Carrying Case

Topcon OS-101 Series Total Station

On-board Total Stations

• Advanced security and maintenance with TSshield™
• MAGNET® Field on-board
• Exclusive LongLink™ communications
• Fast and powerful EDM
• Advanced angle accuracy

Topcon’s OS Series total stations – advanced design with superior technology
The OS is a professional grade compact total station. This advanced design provides an on-board data collection interface, exclusive LongLink™ communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard, to achieve higher levels of production with MAGNET Field on-board software. The OS total station can be used on a wide variety of applications, from building layout to earthwork volumes, and land surveying, the OS is the productive choice.

On-board Windows® touchscreen
Running on-board software on the Windows® touchscreen computer increases productivity. The screen is large and bright, so the user can see more software functions and intuitively interact with the screen where needed. Software applications become easier to use and there is no need to hold a field controller in one hand while turning the instrument with the other. The OS has precise tangent locks to keep the angle positions accurate even with touchscreen and keyboard interaction.

Projects move faster by being able to do point collection, description entry, and on-screen calculations. The bright colorful screen provides enough resolution to view points, lines and icons, to help you make faster decisions. All of your data is stored in one spot, safely on-board.

Exclusive LongLink™
For stakeout and other operations where being at the prism pole with a field controller is critical, Topcon’s exclusive LongLink™ functionality allows you to operate a field controller more than 300 m away from the instrument. LongLink™ brings you flexibility you’ve never had before.

Easy access USB 2.0 memory

• Up to 8 GB storage
• Environmentally protected
• Compatible with industry standard thumb drives

Ultra-powerful, advanced EDM

• 500 m non-prism range
• 4,000 m prism range
• Red/Green guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot

Advanced angle encoder system

• “Best in Class” 1” angle accuracy
• Incorporates exclusive IACS (Independent Angle Calibration System) on 1” and 2” models
• Self-calibration
• Proven High Accuracy Technology

EDM trigger key

• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands

Specifications:

Angle Measurement
Min. Resolution/Accuracy	OS-101 0.5”/1”
IACS	Standard on 1” and 2” models
Compensation	Dual-axis compensator
Distance Measurement
Prism EDM Range	4,000 m
Prism EDM Accuracy	2 mm + 2 ppm
Non-Prism Range	500 m
Non-Prism Accuracy	3 mm + 2 ppm (0.3 - 200 m)
Measuring Time	Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec
Communications	LongLink™ rover communications utilizing Bluetooth® Class 1 USB 2.0 Slot (Host + Slave) RS-232C Serial
General
Display/Keyboard	Dual LCD Touchscreen
Battery Operation	Up to 20 hours
Dust/Water Rating	IP65
Wireless Connection	Bluetooth® Class 1
Operating Temp	-30ºC to 60ºC
