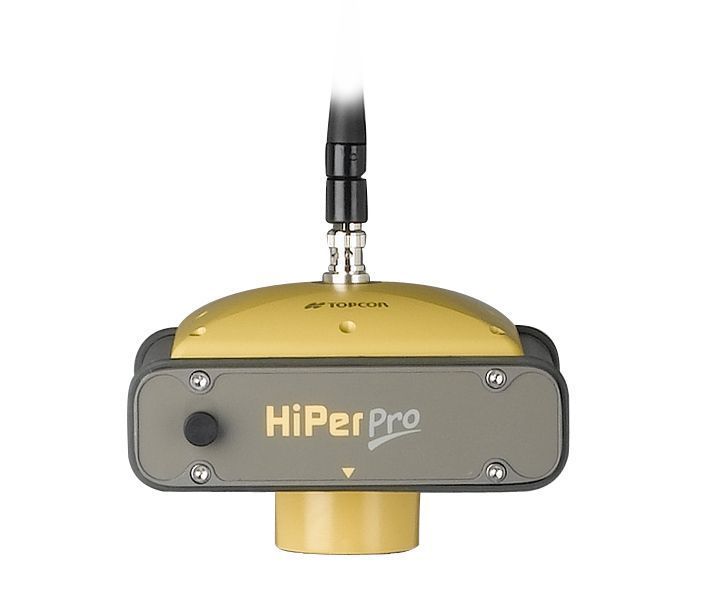

Topcon Hiper Pro integrated GPS+ Receiver Antenna

The Topcon Hiper Pro is an Integrated GPS+GLONASS RTK & Static Receiver designed for maximum job site versatility.

$0.01

Availability: Out of stock

SKU

XPGPS96

Condition: Refurbished

Warranty: 1 YEAR WARRANTY

Shipping: USA & Worldwide

Request a Quote

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Name *

E-mail address*

Phone Number

Country

Comment

Included

Topcon Hiper Pro Dual Frequency GNSS Receiver

Description

Topcon Hiper PRO Integrated GPS+ receiver

HiPer Pro features:

Compact, lightweight design.
Dual frequency, dual-constellation RTK GPS+ tracking.
24 GPS + 11 GLONASS Satellites
Fully integrated receiver/antenna.
Integrated Bluetooth communication
Long range UHF radio – Up to 4mi. coverage!
Topsurv software - One Controller Software for All
Totally cable free solution

The HiPer® Pro utilizes advanced Bluetooth® wireless technology to give you a system free of the messy cables found at many base stations. No more hassles of dealing with tangled, fragile cables from external batteries, antennas, and RTK adios because the wireless HiPer Pro provides a complete, integrated RTK GPS system! With HiPer Pro, there's less equipment to carry into the field, and less to forget back at the office. It doesn't get any easier!

In addition to the long range and wireless technology of the HiPer Pro, it also incorporates Topcon's industry-leading GPS+GLONASS satellite tracking echnolgy. That means more satellite coverage, increased performance, and improved precision over GPS-only systems! No more waiting, worrying and wasting time for satellite coverage.

Hiper Pro Specifications

Description	40 channel integrated GPS receiver/antenna with MINTER interface.
Tracking Specifications Tracking Channels Signals Tracked	standard: 40 L1 GPS (20 GPS L1+L2 on Cinderella* days) optional: 20 GPS L1+L2 (GD), GPS L1+GLONASS (GG), 20 GPS L1+L2+GLONASS (GGD) L1/L2 C/A and P Code & Carrier and GLONASS
Performance Specifications Static, Rapid Static RTK	Horizontal: 3mm+ 0.5ppm (x baseline length) Vertical: 5mm+ 0.5ppm (x baseline length) Horizontal: 10mm+ 1.0ppm Vertical: 15mm+ 1.0ppm
Power Specifications Battery Operating Time External power input Power consumption	Internal Lithium-Ion batteries plus 1 external power port 14+ hours (10 hrs TX) 6 to 28 volts DC Less than 4.2 watts
Environmental Specifications Enclosure Operating Temperature Dimensions Weight	Aluminum extrusion, waterproof -30°C to 60°C / -22°F to 140° F W: 159 x H: 172 x D: 88 mm (6.25" x 6.75" x 3.5") 1.65 kg / 3.64 lbs
GPS Antenna Specifications GPS Antenna Antenna Type Ground Plane	Integrated Center-mount UHF antenna Antenna on a flat ground plane
Radio Specifications Radio Type Power Output CDPD & GSM Modem	Internal Tx/Rx UHF (Selectable frequency range) 1.0W/0.25W (selectable) Optional Accessory
Wireless Communication Communication	Bluetooth® version 1.1 comp.**†
I/O Communication Ports Other I/O Signals Status Indicator Control & Display Unit	2x serial (RS232) 1pps, Event Marker 4x3-color LEDs (Green, Red, Yellow), two-function keys (MINTER) External field controller
Memory & Recording Raw Data Recording Data Type	1Hz ( Up to 20 times per second (20Hz) by option ) Code and Carrier from L1 and L2, GPS and GLONASS
Data Input/Output Real time data outputs Other outputs Output rate	RTCM SC104 version 2.1, 2.2, 2.3, CMR, CMR+ NMEA 0183 version 2.2 TPS format Up to 20 times per second (20Hz)

More Information

More Information
Manufacturer	Topcon
