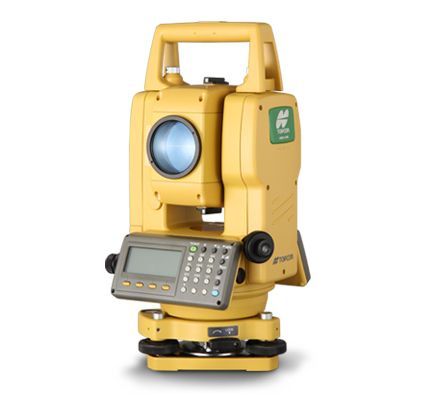

Topcon GTS-252W 2" Total Station

Topcon GTS-252W Total Station

The GTS-250W series combines Topcon's tradition of rugged field-ready quality and accuracy and places it in an economical, compact design perfect for everyday measuring and positioning applications such as topo and construction layout.  With Bluetooth communication the provides the user with a cable-free solution to connect data controllers or transfer data to a computer.

GTS-252W Features & Benefits

• Economical, value priced measuring solution
• Bluetooth cable-free communication
• Superior Waterproof and Dustproof (IP54)
• High Accuracy & Long Measuring Range
• Dual-Axis Tilt Sensor
• On-board programs with 24,000 points data storage
• Ideal construction total station

On-board data collection, Survey, Layout, Road Calculation, and many more functions.

Superior Waterproof & Dustproof

• GTS-250W series waterproof and dust-proof rating is IP54. This allows you to continue to your job when the weather slightly changes to a raining condition.

 Bluetooth Cable-free Communication

• For contractors looking for a full Tablet computer you can connect the GTS-250W to the Topcon's Telsa, FC-2600 (Keyboard), or FC-250 without a cable.   Bluetooth provides you with flexibility to be be up to 10 feet away from the GTS-250W.

High Accuracy & Long Measuring Range

• High accuracy: ±(2mm+2ppm x D) m.s.e.
• Long distance: 2,000m with a Single Prism.

Enhanced Absolute Encoder

• GTS-250W Series adopted an absolute encoder system, which doesn’t require 0 set and realizes stable measurement with less reading error.

Dual-axis tilt sensor

• The dual-axis tilt sensor monitors inclination of both the X and Y axes,and the correct horizontal and vertical angle readings automatically.

Extra-large memory capacity for 24,000 points

• GTS-250W Series store the measured data up to 24,000 points.

Versatile Application Functions

On-board data collection, Survey, Layout, Road Calculation, and many more functions.

LAYOUT function

• Layout function for coordinate measurement and control stakeout and resection measurements.

ROAD function

• Road function automatically calculates parameters of a complicated spiralcurve and a long distance route simply by defining the start point, end point and curve elements.

Remote Elevation Measurement (R.E.M.)

• To easily determine the height of a point where a prism cannot be placed. Take a distance to a prism placed either directly above or directly below the target point, then sight to the target point.

Missing Line Measurement (M.L.M.)

• To measure horizontal distance, slope distance and height difference between two prisms.
