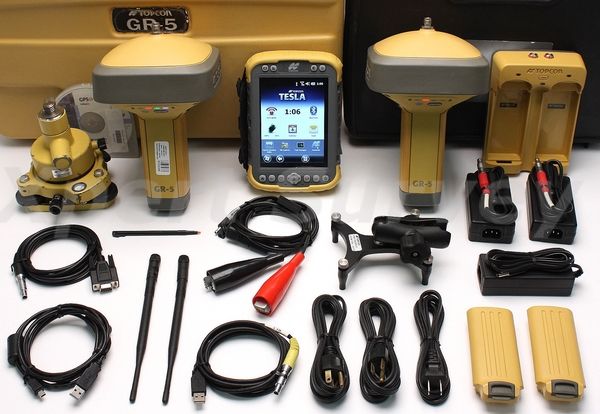

Topcon GR-5 GPS GLONASS RTK Base & Rover w/ Tesla Data Collector
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
- GPS
- GLONASS
- L1
- L2
- Cinderella
- Code Differential Rover
- RTK Base
- Multipath Reduction
- USB Port
- Datums Support
- Magnetic Azimuth
- Geoid Height
- SBAS
- QZSS
- DGPS Mode
- RTCM3 Input
- CMR Output
- CMR Input
- Carrier Phase
- N-Beam
- L2C Support
- FH915 902 - 928 MHz Spread Spectrum Radio
- Serviced By A Topcon Authorized Service Center
* Topcon GR-5 GPS GLONASS Rover or Base Receiver w/ Options... [ID- X1756]
- GPS
- GLONASS
- L1
- L2
- Cinderella
- Code Differential Rover
- RTK Base
- Multipath Reduction
- USB Port
- Datums Support
- Magnetic Azimuth
- Geoid Height
- SBAS
- QZSS
- DGPS Mode
- RTCM3 Input
- CMR Output
- CMR Input
- Carrier Phase
- N-Beam
- L2C Support
- FH915 902 - 928 MHz Spread Spectrum Radio
- Serviced By A Topcon Authorized Service Center
* Topcon Tesla Data Collector w/ Options... [ID- X1753]
- Tesla Pocket 3D Software
- Range Pole
- GPS (Topcon RTK)
- Optical Prism
- Laser Zone (Millimeter GPS)
- Multi-Base RTK
- Advanced Coordinate System
- Topo Survey
- Stake Out
- Avoidance Areas
* Topcon Stand [ID- X1757]
* Topcon Battery Charger 01-050911-01 [ID- X1754]
* Topcon Bracket 1000183-01
* Dual Clip Power Cable 14-008025-01
* RS232 Power Cable 14-008005-03
* USB Power Cable 14-008070-01
* QTY. 2 Antennas
* Topcon GPS+ Software
* Stylus
* QTY. 8 Battery Packs
* QTY. 3 AC Adapter/Chargers
* QTY. 3 Power Cords
* USB PC Interface Cable
* QTY. 2 Hard Carrying Cases
Topcon GR-5 GPS GLONASS Base or Receiver ID- X1755] |
Topcon GR-5 GPS GLONASS Rover or Base Receiver [ID- X1756] |
Topcon Tesla Data Collector [ID- X1753] |
| - GPS - GLONASS - L1 - L2 - Cinderella - Code Differential Rover - RTK Base - Multipath Reduction - USB Port - Datums Support - Magnetic Azimuth - Geoid Height - SBAS - QZSS - DGPS Mode - RTCM3 Input - CMR Output - CMR Input - Carrier Phase - N-Beam - L2C Support - FH915 902 - 928 MHz Spread Spectrum Radio - Serviced By A Topcon Authorized Service Center |
- GPS - GLONASS - L1 - L2 - Cinderella - Code Differential Rover - RTK Base - Multipath Reduction - USB Port - Datums Support - Magnetic Azimuth - Geoid Height - SBAS - QZSS - DGPS Mode - RTCM3 Input - CMR Output - CMR Input - Carrier Phase - N-Beam - L2C Support - FH915 902 - 928 MHz Spread Spectrum Radio - Serviced By A Topcon Authorized Service Center |
- Tesla Pocket 3D Software - Range Pole - GPS (Topcon RTK) - Optical Prism - Laser Zone (Millimeter GPS) - Multi-Base RTK - Advanced Coordinate System - Topo Survey - Stake Out - Avoidance Areas |
Topcon GR-5 Advanced GPS Receiver
The GR-5 with Vanguard Technology
- 226-Channel Vanguard Technology™ with Universal Tracking Channels
- Fence Antenna™ technology for signal optimization
- Multiple communication options for job site versatility
- 32 GB SDHC storage support
- Dual hot-swappable batteries
Full sky, all-in-view satellite tracking
The GR-5 features the multi-constellation 226-channel Vanguard GNSS chip with Universal Tracking Channel Technology. This patented technology uses flexible and dynamic tracking methods to automatically select and track any available satellite signal enabling Topcon’s users to receive the maximum number of signals and measurements at any given time.
The GR-5 GPS Receiver is not only capable of receiving signals from the fully operational GPS and GLONASS constellations, but also has the ability to support all planned signals from developing systems such as Galileo, Beidou (BDS) and QZSS. With current and developing satellite constellations, Universal Tracking Channel Technology optimizes GNSS signal tracking to guarantee maximum satellite geometry and availability.
Topcon’s patented Fence Antenna design brings superior signal reception and advanced multipath rejection in difficult environments. This technology provides a more robust and cleaner signal tracking which means unparalleled results.
With Vanguard Technology, Universal Tracking Channel and the Fence Antenna, the GR-5 is designed to deliver ultimate field performance even in challenging environments while maintaining unmatched accuracy, speed of initialization and fix reliability for RTK solutions.
In addition to advanced technologies, the mechanical design of the GR-5 makes it incredibly reliable, ergonomic, and durable. Guaranteed rugged, the GR-5 is the best GNSS receiver available in the market.
Premium GNSS technology in rugged form
Not only does the new Topcon Fence Antenna outperform other RTK receivers with enhanced sensitivity, but also provides multipath rejection characteristics that gives the GR-5 a level of tracking performance in difficult environments beyond any other GNSS receiver.
Topcon GR5 GPS Receiver Specifications:
| GNSS | |
| GPS | L1, L1C*, L2, L2C, L5* |
| GLONASS | L1, L2 |
| Galileo* | E1, E5a, E5b, AltBOC |
| BeiDou* | B1, B2 |
| SBAS | L1 C/A WAAS/MSAS/ EGNOS |
| QZSS | L1 C/A, L1C*, L2C |
| Number of Channels | 226-Channel Vanguard Technology™ with Universal Tracking Channels |
| Antenna Type | Integrated Fence Antenna™ 1 with Ground Plane |
| Accuracy (RMS)* | |
| RTK | H: 5 mm + 0.5 ppm V: 10 mm + 0.8 ppm |
| Static | H: 3.0 mm + 0.1 ppm V: 3.5 mm + 0.4 ppm |
| Communication | |
| Optional Radio Type | Integrated UHF/FH915 |
| Base Radio Output | 1.0 W, user selectable |
| Optional Cellular | Integrated HSPA/CDMA |
| I/O Communications | Class 2 Bluetooth® USB and Serial |
| Data and Memory | |
| Memory | Memory Removable SD/SDHC |
| Data Update/ Output Rate | 1 Hz – 50 Hz Selectable |
| Real Time Data Output | TPS, RTCM 2.x, 3.x, CMR, CMR+ |
| ASCII Output | NMEA 0183 version 2.x and 3.0 |
| Environmental | |
| Enclosure | Dust and water ingress protected magnesium I-Beam housing |
| Operating Temp | -30ºC to 70°C† † |
| Shock Rating | 2 m pole drop to concrete IEC 60068-2-29, IEC 60068-2-27 |
| Vibration Rating | Compliance with MIL-STD 810F - 514.5 - Cat.24 |
Topcon Tesla Cross-over Data Collector Controller
Large screen, yet still handheld comfortable
The Topcon Tesla is the ideal cross-over device for field data collection. The screen is much larger than a palm sized field controller, but the overall size of the device is much better than a tablet PC. The ergonomic balance between screen size and handheld size is perfect. The screen of the Topcon Tesla can be configured to display vertically or horizontally. Simply touch the rotation button and the screen will rotate. This makes it possible to use in both handheld vertical and on the pole horizontal orientation.
Durable and Reliable
The rugged design of the Topcon Tesla is unmatched in such a large screen format. The device is submersible waterproof, and drop proof. The frame of the Topcon Tesla is magnesium alloy, which is both lightweight and strong. Your data will be protected and the reliability of the device in the most challenging environments is unmatched. Dual batteries that are hotswappable and produce up to a 16 hour run-time are accessed with a simple turn of a coin on the back of the device. Protected and secure, the SD card and SIM Card slots are located under the battery and inside the battery door.
Topcon Tesla Options
The Topcon Tesla can be configured with internal bluetooth, WiFi, Camera, GPS, and cellular functionality. There are even additional options such as built-in bar code reader and integrated precision GNSS receiver for network RTK capability. This long lis of functionaility makes the Topcon Tesla a perfect pairing with a robotic system, total station, or RTK rover. The Topcon Tesla even has an optional docking station that can be configured for in-cab vehicle operation for a site manager.
Topcon Tesla Features:
- Large 5.7" Color Screen
- On-screen keyboard
- Large icons for finger operation
- Sunlight readable
- Direct touch and gloved touch
- Waterproof Connections
- Mini USB Client
- Type A USB host
- 9-pin Serial Com port 1
- Headset, microphone jack
- 12VDC power port
- Rugged and Waterproof
- IP67 environmental rating
- 4ft. drop proof
- Waterproof communication ports
Topcon Tesla Specifications:
| Computer | |
| CPU | 806 MHz PXA320 Processor |
| OS | Microsoft Windows Mobile 6.5.3 Professional Multiple Languages |
| Memory | 256MB RAM, 4GB Flash storage, SD/SDHC slot, user accessible |
| Display | 5.7" (145 mm) color VGA LCD (640 x 480) Portrait or landscape orientation |
| Keypad | 15 control buttons (6 user reassignable) five-way directional navpad Adjustable LED backlit keys |
| Wireless Connectivity Options | |
| Bluetooth | 2.0 + EDR, Class 1 |
| WiFi | 802.11b/g |
| Environmental | |
| Dust/Water Protection | IP67 |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Temperature Shock | MIL STD-810G, Method 503.5, Procedure-I-C; -30°C ~ 71°C |
| MIL-STD-810G | Drop 4 ft. (1.2m), Vibration, Humidity; Tumble spec: 1,000 1.6 ft/0.5m tumbles (2,000 drops) |
| Dimensions | 5.3"w x 7.9"l x 2"d (136mm x 220mm x 51mm) |
| Operating Time | Up to 16 hours |
| Manufacturer | Topcon |
|---|
