Topcon GLS-2200 Compact High Speed 3D Laser Scanner
$17,499.00
Availability:
In stock
SKU
XPGPS232
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide

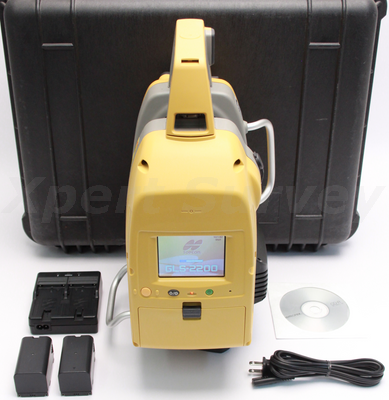

* Topcon GLS-2200 Compact High-Speed 3D Laser Scanner [ID- L/T*]
* Charger
* QTY. 2 Batteries
* User Manual On CD
* Hard Carrying Case [G]
Request a Quote for
Topcon GLS-2200 Compact High-speed 3D Laser Scanner
Completely integrated with the industry leading ClearEdge3D software, the GLS-2200 scanner solution allows you to automate many modeling processes that are normally manual or semiautomatic. The software quickly creates a digital clone faster than competitive software, and Verity and Rithm automatically compare the scan to the production model.
- Complete end-to-end workflow
- Reduced post-processing time
- Integrated solution with ClearEdge3D software
- Floor Flatness & Floor Levelness construction verification
Topcon GLS-2200 Specifications:
| Maximum range at specified reflectivity | ||||
| Short | 130m at 90% | |||
| Middle | 350m at 90% | |||
| Long | 500m at 90% | |||
| Scan mode | Detail | High Speed | Low Power | Standard |
| Scan data rate | 120,000 | 120,000 | 48,000 | 60,000 |
| Laser Class | Class 3R | Class 3R | Class 1 | Class 3R |
| Field of View | V: 270° / H: 360° | |||
| Angle Accuracy | H: 6” / V: 6” | |||
| Distance Accuracy | 3.1 mm (σ) At 1 to 90 m | 3.1 mm (σ) At 1 to 110 m | 3.7 mm (σ) At 1 to 110 m |
3.1 mm (σ) At 1 to 150 m |
| Measuring Range | 0.3 to 2.0 m | |||
| CAMERA | ||||
| Field Angle | Wide: Diagonal 170° Tele.: 8.9°(V) x 11.9°(H) |
|||
| Number of Pixels | Both Wide and Tele. 5 megapixels |
|||
| HDR | Yes | |||
| Manufacturer | Topcon |
|---|
