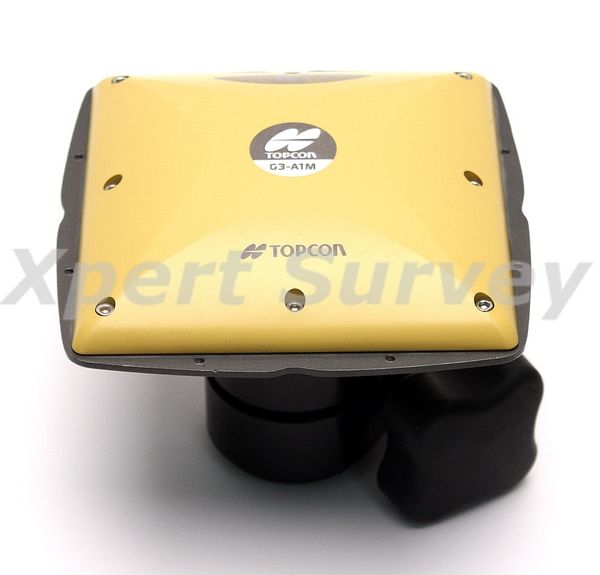

Topcon G3-A1M GPS / GLONASS Multiple Constellation Antenna
The G3-A1 is intended for high vibration uses, such as on the top of a machine control mast. Based on the corresponding receiver can receive GPS and GLONASS satellite signals.
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
Topcon G3-A1M Multiple Constellation Antenna
The G3-A1 is a multiple constellation antenna, and based on the corresponding receiver can receive GPS and GLONASS satellite signals.
The G3-A1 is intended for high vibration uses, such as on the top of a machine control mast. The antennas have been tested to extreme vibration specifications and are recommended for the most rugged environments. Why risk placing an expensive electronic receiver at the top of a machine mast. This ruggedized antenna can be used with bulldozers, motor graders, scrapers, milling machines, and other systems.
An optional ground plane can be easily attached to supplement the reduction of multipath signal interference.
Features:
- Rugged Design
- GPS and GLONASS
- Vibration Tested
- Optional Ground Plane
Specifications:
| Operating Frequency Range | |
| L1 GPS/GLONASS |
1586.5 ± 25 MHz |
| L2 GPS/GLONASS |
1236 ± 20 MHz |
| L5 GPS |
1176 ± 12 MHz |
| Out of Band Rejection | |
| L1 |
± 100 MHz -30 dBc (typical) |
| L2 |
± 100 MHz -60 dBc (typical) |
| Gain, Noise Figure and VSWR | |
| LNA Gain |
30 dB (typical) |
| Gain at Zenith (90°) |
GPS L1 6 dBic (minimum) GPS L2 5.5 dBic (minimum) GPS L5 4 dBic (minimum) GLONASS L1 4.5 dBic (minimum) GLONASS L2 4 dBic (minimum) |
| Gain Roll-Off (from Zenith to Horizon) |
GPS L1 -12 dB GPS L2 -13 dB GPS L5 -13 dB GLONASS L1 -12 dB GLONASS L2 -13 dB |
| Noise Figure |
1.8 dB (typical) |
| VSWR |
≤ 2.0 : 1 |
| L1-L2 Differential Propagation Delay |
6 ns (maximum) |
| Nominal Impedance |
50 Ohms |
| Connector and Mounting | |
| Antenna Connector / Mount |
N female (G3-A1M) |
| Physical Characteristics | |
| Size without Ground Plane |
141.6 x 141.6mm |
| Diameter |
179.4mm (circumference, without Ground Plane) 200mm (with Ground Plane) 205mm (with GP and Anti-snow Spherical Dome) |
| Height |
53.7mm / 149.5mm (with Anti-snow Spherical Dome) |
| Weight |
515g (Antenna without Ground Plane) 185g (Ground Plane) 700g (Antenna with Ground Plane) 195g (Anti-snow Dome) 895g (Antenna with GP and Anti-snow Dome) |
| Power | |
| Input Voltage Range / Power Consumption |
+3 to +18 VDC / 30 mA (typical) |
| Environmental | |
| Operating Temperature (Methods 501.4, 02.4) |
-50°C to +70°C |
| Storage Temperature (Methods 501.4, 02.4) |
-55°C to +85°C |
| Waterproof / Dust Rating |
IEC 60529 IPX5 / IEC 60529 IP6X |
| Vibration |
Category 20, Composite Wheeled/Tracked Machine Exposure, along each of 3 axes (Method 514.5, Table 514.5C-VII and Figure 514.5C-3) |
| Mechanical Shock |
Along each of 3 axes (Method 516.4, Procedure I, Functional Shock, Table 516.5-II, Figures 516.5-10 - accelerative forces up to 40g) |
| Humidity |
95% (Method 507.4) |
| Salt Fog |
5% (Method 509.4) |
| Drop Test |
Repeated drops of antenna with pole from the height of 2m (the pole height) on asphaltic concrete surface. |
| RoHS Compliant |
Yes |
| Manufacturer | Topcon |
|---|
