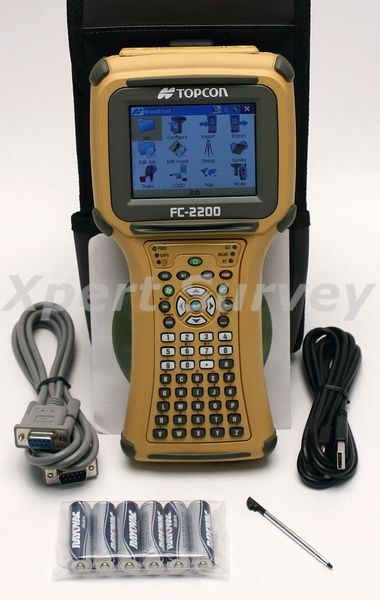

Topcon FC-2200 Field Controller Data Collector

* Topcon FC-2200 Field Controller Data Collector [ID- X1171]
         - TopSURV Version 7.5.2
         - Optical Module
         - Contractor Module
         - Robotic Module
         - GPS+ Module
         - GIS Module
         - Roads Module
         - MMGPS Module
* QTY. 6 AA Batteries
* Stylus
* RS232 PC Interface Cable
* USB PC Interface Cable
* User Manual On CD-ROM
* Carrying Case

Topcon FC-2200 Field Controller Data Collector

Seeing is Believing
Being outside shouldn’t compromise your visibility, at least not on a field controller. With the FC-2200 in your hands, the power of superior visibility is yours. The graphical Windows CE.NET 5.0 system operates on a sunlight readable, TFT, color touch screen display, so your data is crystal clear no matter what.

Everything You Need
The FC-2200 has it all. Use the standard USB port with your USB jump drive removable media for convenient data storage and fast file transfer. If you need more data storage, no problem. With the expandable connection on the back of the unit for a robotic radio, cellular pack, or GPS pack, the options are endless. Oh, and did we mention it also has Bluetooth® wireless technology and WiFi built-in?

Snap a Shot
You never know when you might need to take a snapshot, which is why we built a high resolution 5 megapixel camera, with auto focus, inside the FC-2200. To make sure you have enough memory to take such high-quality shots, there’s 2GB of System Flash.

Compact Convenience
Don’t you hate it when you get to the jobsite with the wrong batteries? The last thing you want to do is go into the store looking for specialized batteries to run your field controller, right? The FC-2200 runs on a rechargeable six pack of AA batteries, or regular alkaline AA batteries.

Features:

• 624MHz XScale processor
• 5.17 megapixel color camera (4.0 megapixel processed)
• 128MB SDRAM, 2GB System Flash
• Built-in Bluetooth® wireless technology and WiFi
• Reads 1D and 2D barcodes
• Alphanumeric keyboard, rugged desisgn
• Easy access USB flash drive adapter delivers memory expansion
• Accessible rechargeable battery compartment also capable of alkaline battery use

Specifications:

Microprocessor	XScale PXA 270
Processor Speed	624 MHz
Operating System	CE.NET 5.0
Memory	128MB SDRAM 2GB System Flash
Display Resolution	320 x 240 QVGA
Type	3.5 in. TFT Color LCD
Light	LED Back Light
Touch Panel	Analog Resistive Film
Key-Board	53 Keys (Power Key Included)
LED	6 LED Indicators
Interface	RS-232C (D-Sub 9pin) USB rev 1.1 (Type Mini-B) USB OTG Host and Client
Bluetooth wireless technology	Bluetooth 1.1 Class II
External Power	11 - 18 VDC (15 Watt)
Audio	Beep Tones
WiFi	802.11 b/g
Water/Dust Resistance	IP65
Operating Temperature	-4°F to +122°F (-20°C to +50°C)
Storage Temperature	-4°F to +158°F (-20°C to +70°C)
Operating Time	Approx. 8 hours (Typical)
Charging Time	Approx. 4 hours
Dimensions	9.84 in. x 4.75 in. x 1.84 in.
Screen Dimensions	2.84 in. x 2.11 in.
Weight	2 lbs. (with rechargeable battery pack)
RoHS Compliant	Yes
5.17 megapixel color CMOS Sensor	4 megapixel processed
Image Capture Resolutions	QSXGA: 2048 x 1944, SXGA: 1280 x 960 VGA: 640 x 480, HF: 320 x 200
True-Shutter	A variety of standard shutter speeds up to 1/500 of a second
True-Focus System	Macro 2.25 in. near focus to infinity far focus eye•WARE Automatic Scene Focus System eye•WARE Automatic Laser Focus System Dual precision aligned red Lasers Software focus system Software measurement system Software selectable manual focus
Aperture System	F 8.0 or F 2.8, Software selectable
