Topcon FC-120 Field Controller Data Collector

* Topcon FC-120 Field Controller w/ Options... [ID- X2765-L/T*]
         - TopSurv Version 7.1
         - TS
         - GPS+
* AC Adapter/Charger
* Power Cord
* USB PC Interface Cable
* User Manual On CD-ROM
* Carrying Case (G)

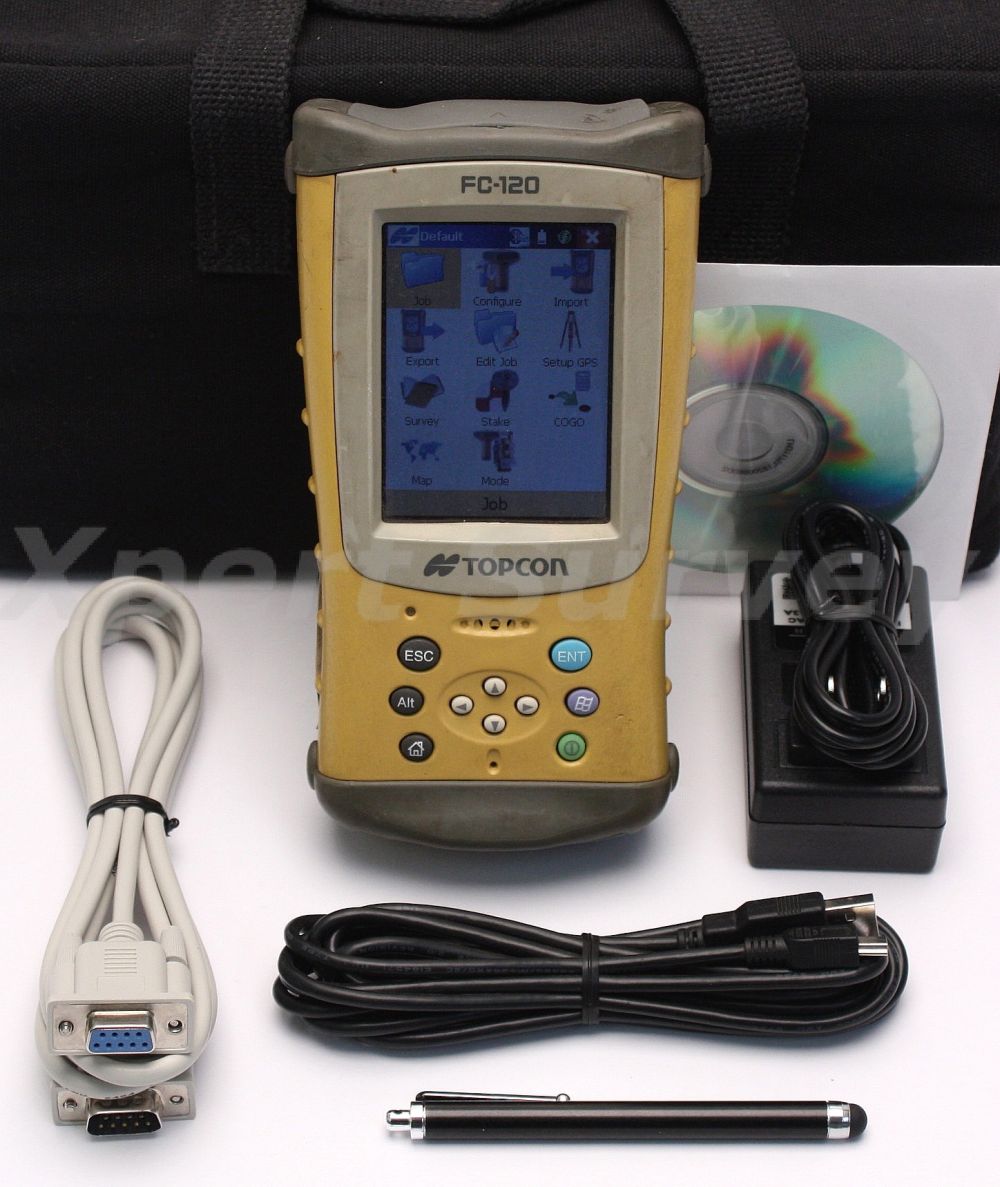

Topcon FC-120 Field Controller

Field Data Comes Alive
If you are looking for a rugged, compact field controller that provides big-time results, look no further than Topcon’s FC-120. The FC-120 provides advanced software functions such as the large key pop-up keyboard for data entry and incorporates the graphical Windows® CE.NET 5.0 operating system on a crisp, bright, color touch screen display. Watch your field data come alive with Topcon’s FC-120.

Expandability Made Easy
Topcon knows that expandability is important to professionals in the field. The FC-120 allows quick and easy access to SD and CF card slots for data transfer and exchange with other devices. No tools or extra process is needed to access these card slots. In addition, with Bluetooth® wireless technology built-in to the FC-120, the CF card slot remains open for expanded memory.

Removable Li-Ion Batteries
The FC-120 has an easy sliding lock mechanism to allow quick replacement of the compact, long-lasting Li-Ion battery.

Small on size, but not in performance, Topcon’s FC-120 makes the perfect field controller for any job.

Features:

• Built-in Bluetooth® wireless technology
• Ultra-bright, TFT, color touch screen display
• Windows® CE.NET 5.0 operating system
• Compact, Rugged design
• Easy access Compact Flash and SD Media card slots deliver memory expansion and connectivity options
• 520MHz XScale processor
• Removable, Long-lasting Li-Ion batteries
• 64MB SDRAM, 128/256MB ROM

Specifications:

Microprocessor	XScale PXA 270
Processor Speed	520MHz
Operating System	Windows® CE.NET 5.0
Memory	64MB
ROM	128MB
Display	Resolution
Resolution	240 x 320 QVGA
Type	3.5 in. TFT Color LCD
Light	LED Back Light
Touch Panel	Analog Resistive Film
Keyboard	10 Keys (Power Key Included)
Led	1 LED (charge)
Interface
Serial	RS-232C (D-sub 9 pin)
USB	USB rev 1.1 (Type Mini-B)
SD	Memory and IO supported
Compact Flash	1 x Type I/II (Memory and IO)
Bluetooth® Wireless Technology	Standard (Internal) Bluetooth Version 1.2
Audio	Sealed Speaker (mono), Sealed Microphone
Environmental
Ruggedness	Yes
Water/Dust Resistance	IP66
Operating Temperature	-4°F to +122°F (-20°C to +50°C)
Storage Temperature	-22°F to +140°F (-30°C to +60°C)
Shock Resistance	Dropping this instrument from a height of 3.28 ft. (1 meter) does not affect its functions
Operating Time	Approx. 20 hours (typical use) Approx. 45 hours (with no display light, no touch)
Charging Time	Approx. 6 hours (with AC-DC converter)
Dimensions	7.17 in. x 4.06 in. x 2.32 in. (182mm x 103mm x 59mm)
Weight	1.3 lbs (0.6kg) (with battery)
Battery	BT-66Q (Lithium-ion)
AC-DC Converter	AD-13
