Topcon 9168 3D Control Box Display
- Topcon 9168 System 5 Control Box w/ Options...
- Dozer
- Grader
- Scraper
- Paver
- GPS
- LPS
- MM
- Auto Blade
- Sensor Input
- As Built mapping
- 3DMC Software
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Shipping: USA & Worldwide
* Topcon 9168 System 5 Control Box w/ Options... [ID- X3532-L/T*]
* Dozer
* Grader
* Scraper
* Paver
* GPS
* LPS
* MM
* Auto Blade
* Sensor Input
* As Built mapping
*3DMC Software

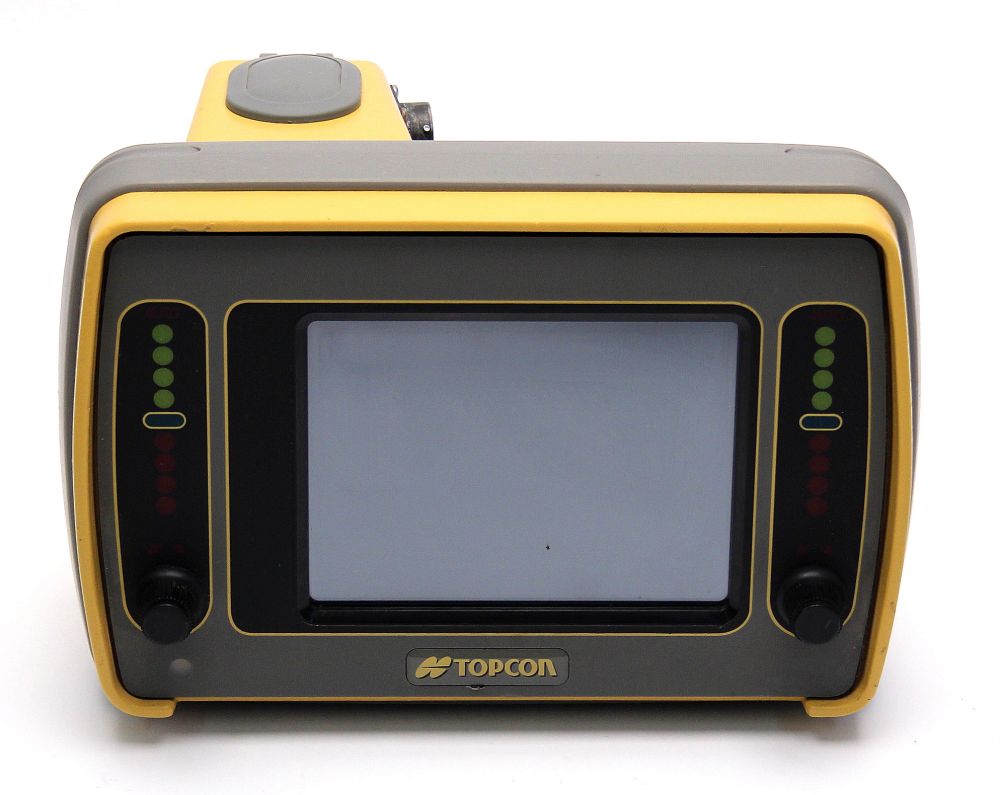

Topcon System 5 Control Box 9168
The control box is the operator's interface, as well as the primary control for the System Five-3D components. The 9168 combines the System Five platform with a computer graphic display into a single, rugged unit that provides dual hydraulic control for three-dimensional, stakeless GPS+ and LPS control, and 2D control.
- The high-resolution, bright touch screen display easily adapts to a variety of machine applications, providing the operator with easy-to-view graphical information
- A mounting bracket and one side or double side clamps secure the control box in the cab. The clamps provide easy attachment at the beginning of the day, and easy removal for storage in the carrying case at the end of the day
- All cables attach in the back and remove easily with quick-disconnect connectors.
Specifications:
| Housing | Cast aluminum |
| Weight | 11.75 lb. (5.3 kg) |
| Display | Color LEDs 6-1/4" diagonal, sunlight viewable 640 x 480 enhanced color, 1300 nit Touch screen Three-color, linear grade indicators with automatic adjustable brightness |
| Supply Voltage | 10 to 30 VDC |
| Operating Current | Typical: 3.0 A Maximum: 15 A |
| Operating Temperature | -20 to +60 C (-4 to 140 F) |
| Moisture | MIL standard 810D |
| Valve Drive | Programmable dual hydraulic control |
| External data storage | One slot for compact flash card to download/upload job files |
| USB Port | One port for keyboard or mouse hookup |
| Connectors | Four connectors for power, valves, RS485, RS232 |
| Speaker | For the tones, beeps, and chimes of audible alerts |
| Computer Board | 300 MHz processor 28 MB SDRAM |
| Operating System | Microsoft Windows CE.NET |
| Manufacturer | Topcon |
|---|
